Page 1: Side By Side

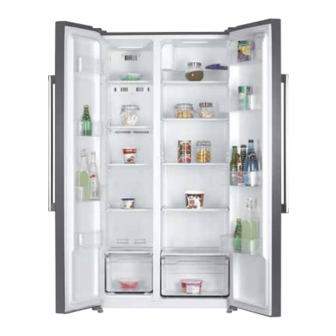

Side by Side Refrigerator Freezer BSBS550 Content 1. Safety Information Page 1~4 2. Overview Page 5 3. Installation Page 6~8 4. Daily Use Page 9~12 User Instruction... -
Page 2: Safety Information
Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 3 Safety information WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
-
Page 4: Daily Use
Safety information Dailyuse Do not put hot on the plastic parts in the appliance. Do not place food products directly against the rear wall. Frozen food must not be re-frozen once it has been thawed out. Store pre-packed frozen food in accordance with the frozen food ... -
Page 5: Energy Saving
Safety information Service Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. Energysaving Don’t put hot food in the appliance;... -
Page 6: Leveling Feet
Overview Fridge Freezer Balconies Balconies Freezer Fridge Shelves Shelves Freezer Drawer(s) Fridge Drawer(s) Leveling Feet Note: Above picture is for reference only. Real appliance probably is different. - Page 7 Installation Space Requirement Select a location without direct exposure to sunlight; Select a location with enough space for the refrigerator doors to open easily; Select a location with level (or nearly level) flooring; Allow sufficient space to install the refrigerator on a flat surface; ...
-
Page 8: Electrical Connection
Installation Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Ambient temperature Climate class +10 C to +32 C +16 C to +32 C +16 C to +38 C +16 C to +43 C Location The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight... - Page 9 Installation As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1. Connect the wire coloured green and yellow to the terminal marked either with the letter E or by the earth symbol or coloured green and yellow.
-
Page 10: Using The Control Panel
Daily Use Daily Use Using the Control Panel FRZ. TEMP REF. TEMP REF. TEMP MODE 3 SEC. Buttons Press to adjust temperature of freezer compartment (left side) from -14 C to -22 C. Press to adjust temperature of fridge compartment (right side) from 2 C to 8 C. Press to select running mode from SMART, ECO, SUPER COOLING, SUPER FREEZING and USER’S SETTING (no symbol in display). -
Page 11: First Use
Daily Use Daily Use First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. -
Page 12: Hints For Refrigeration
Daily Use Daily Use To help you make the most of the freezing process, here are some important hints: the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate; the freezing process takes 24 hours. No further food to be frozen should be added during this period; ... -
Page 13: Troubleshooting
Daily Use Daily Use Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Possible cause Solution Problem...
