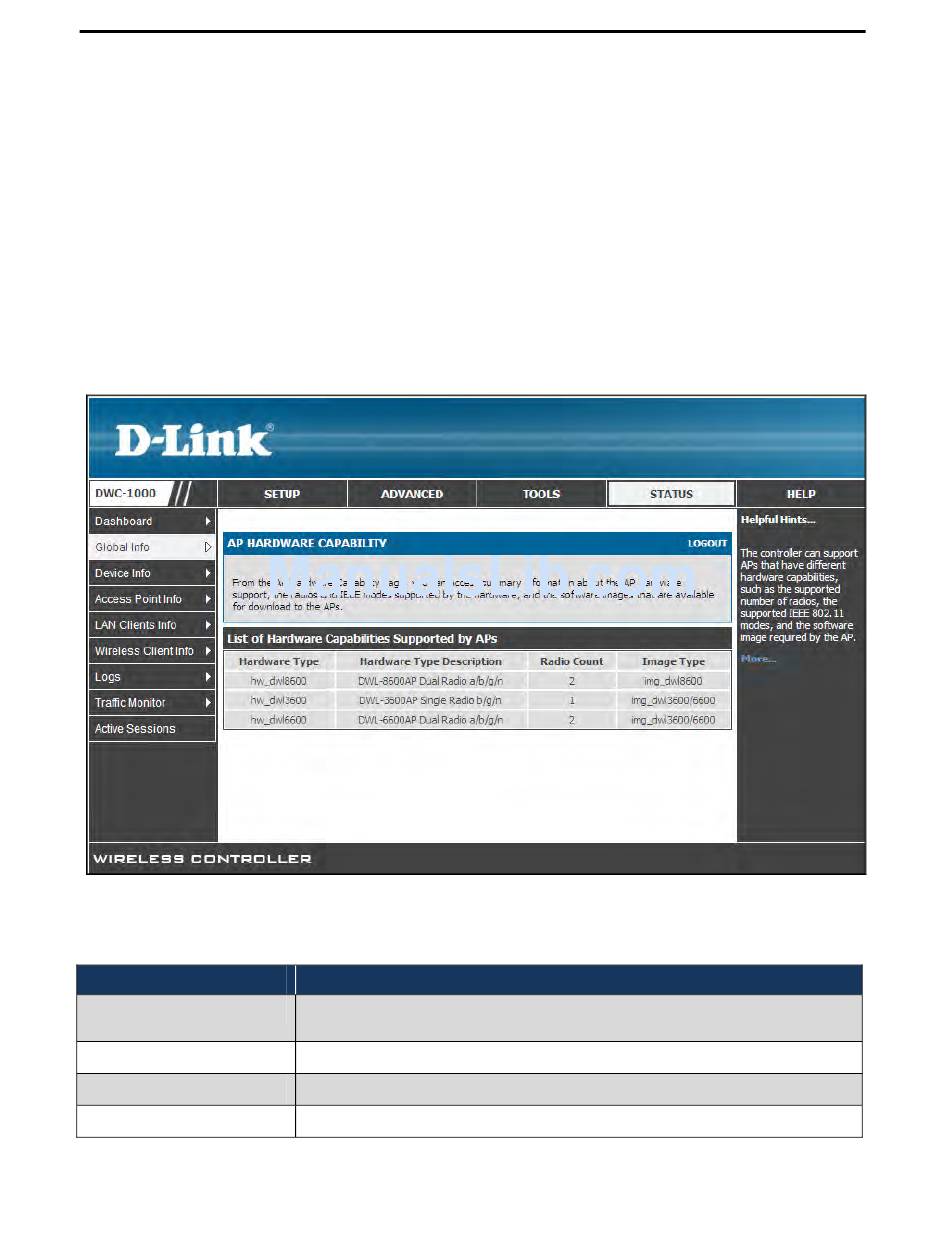

AP Hardware Capability

Path: STATUS > Global Info > AP H/W Capability
The wireless controller supports access points that have different hardware capabilities,
such as number of radios, supported IEEE 802.11 modes, and software images. Using the
AP HARDWARE CAPABILITY page, you view information about the radio hardware and
IEEE modes supported by access points, as well as software images that are available for
download to the access point.
Table 7-28. Fields on the AP HARDWARE CAPABILITY Page
Field
Hardware Type
Hardware Type Description
Radio Count
Image Type
Viewing Status and Statistics
Shows ID number assigned to each access point hardware type. The wireless controller supports
six different types of access point hardware.
Describes the platform and the supported IEEE 802.11 modes.
Shows whether the hardware supports one radio or two radios.
Shows the type of software the hardware requires.
170
DWC-1000 Wireless Controller User's Guide
Description
