Rear Panel

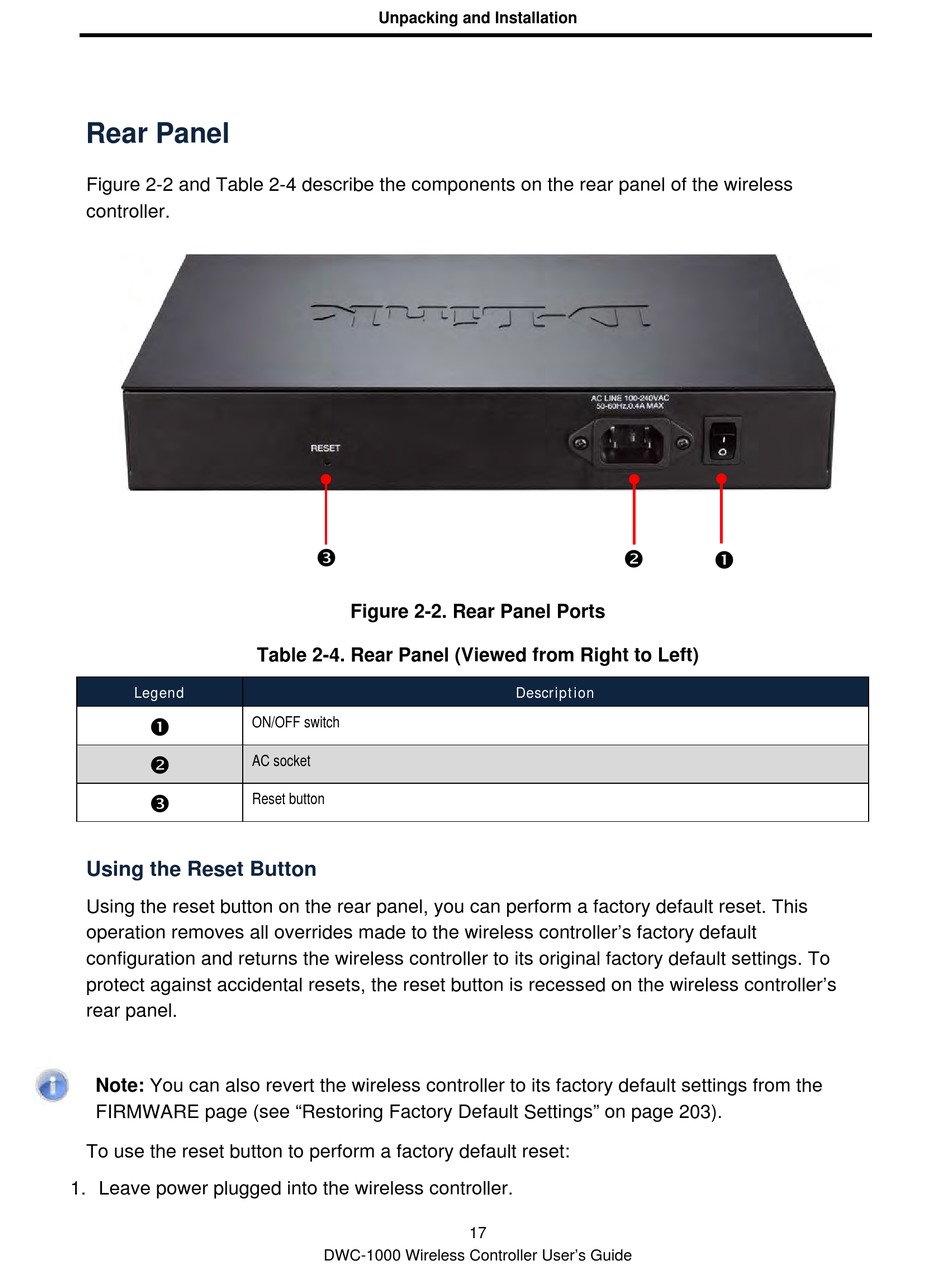

Figure 2-2 and Table 2-4 describe the components on the rear panel of the wireless
controller.
Legend




Using the Reset Button

Using the reset button on the rear panel, you can perform a factory default reset. This
operation removes all overrides made to the wireless controller's factory default
configuration and returns the wireless controller to its original factory default settings. To
protect against accidental resets, the reset button is recessed on the wireless controller's
rear panel.
Note: You can also revert the wireless controller to its factory default settings from the
FIRMWARE page (see "Restoring Factory Default Settings" on page 203).
To use the reset button to perform a factory default reset:
1. Leave power plugged into the wireless controller.
Unpacking and Installation

Figure 2-2. Rear Panel Ports
Table 2-4. Rear Panel (Viewed from Right to Left)
ON/OFF switch
AC socket
Reset button
