System Configuration and Menu Options
Q9 Plus ASD Install/Op Manual
System Configuration and
Menu Options
Root Menu Items
The Mode key accesses the three primary modes
of the Q9 Plus ASD: the Frequency Command
mode, the Monitor mode, and the Program mode.
From any mode, press the Mode key to loop
through to the other two modes (see

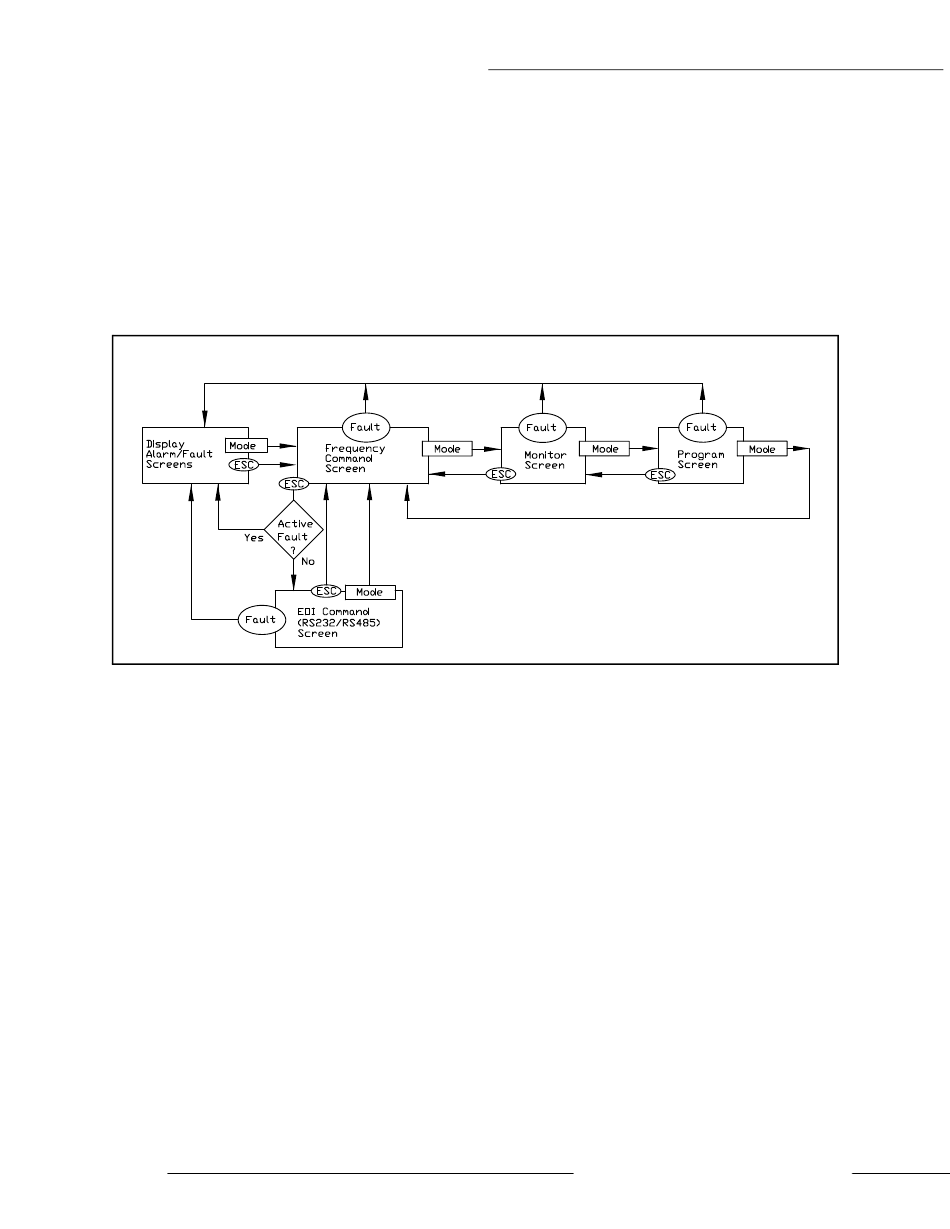

Figure 29. Q9 Plus ASD Root Menu Navigation.
Frequency Command Mode
Frequency Setting
While operating in the Local mode (Local LED is
illuminated), the running frequency of the motor
may be set from the Frequency Command screen.
Using the Rotary Encoder, enter the Frequency
Command value, connect ST to CC, provide a Run
command (F and/or R), and then press the Run
key. The motor will run at the Frequency Command
speed and may be changed while running. See
Operation (Local) on pg. 28
the Frequency Command mode.
EOI Command Mode
The EOI Command mode is accessed by pressing
the ESC key from the Frequency Command screen.
With the exception of the Virtual Linear Pump
Control Enable/Disable, the control settings of the
EOI Command menu are effective for EOI control
only.
36
Figure 28
for more information on
below). Press the ESC key from any mode to return
to the previous mode until reaching the Frequency
Command mode.
The Alarm or Fault information will be displayed in
the event of an active Alarm or Fault. Alarm text will
be displayed on the Frequency Command screen
when active. Fault information will be displayed via
a Fault screen. See
Alarms, Trips, and
Troubleshooting on pg. 263
The EOI Command mode provides quick access to
the following menu parameters:
Direction — Forward or Reverse.
Stop Pattern — The Decel Stop or Coast Stop
setting determines the method used to stop the
motor when using the Stop-Reset key of the EOI.
The Decel Stop setting enables the DC Injection
Braking system setup at F250, F251, and F252.
The Coast Stop setting allows the motor to stop at
the rate allowed by the inertia of the load.
The Stop Pattern setting has no effect on the
Emergency Off settings of F603.
V/f Group — One of four V/f profiles may be
selected and run. Each V/f profile is comprised of
four user settings: Base Frequency, Base
Frequency Voltage, Manual Torque Boost, and
Electronic Thermal Protection. Expanded
descriptions of these parameters may be found in
the section titled
Direct Access Parameter
Information on pg.
73.
https://www.toshiba.com/tic/
for more information.
