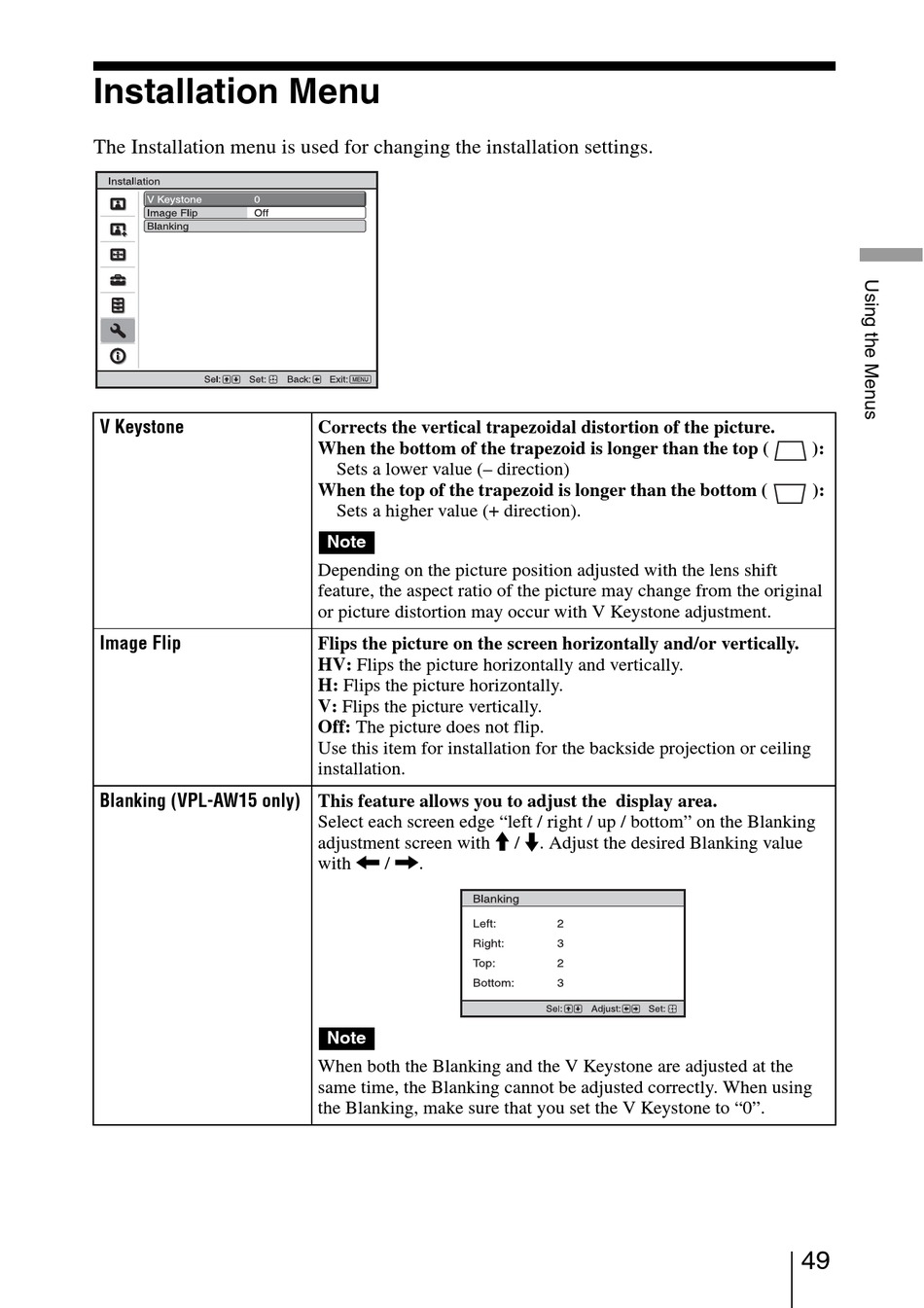

Installation Menu

The Installation menu is used for changing the installation settings.
V Keystone
Image Flip
Blanking (VPL-AW15 only) This feature allows you to adjust the display area.
Corrects the vertical trapezoidal distortion of the picture.
When the bottom of the trapezoid is longer than the top (
Sets a lower value (– direction)
When the top of the trapezoid is longer than the bottom (
Sets a higher value (+ direction).
Note
Depending on the picture position adjusted with the lens shift
feature, the aspect ratio of the picture may change from the original
or picture distortion may occur with V Keystone adjustment.
Flips the picture on the screen horizontally and/or vertically.
HV: Flips the picture horizontally and vertically.
H: Flips the picture horizontally.
V: Flips the picture vertically.
Off: The picture does not flip.
Use this item for installation for the backside projection or ceiling
installation.
Select each screen edge "left / right / up / bottom" on the Blanking
adjustment screen with M / m. Adjust the desired Blanking value
with < / ,.
Note
When both the Blanking and the V Keystone are adjusted at the
same time, the Blanking cannot be adjusted correctly. When using
the Blanking, make sure that you set the V Keystone to "0".
):
):
49
