4-2. Press the button for the input that you want to use for talkback to turn the button
indicator on.
You can select only one input at a time.
4-3. Press the CLOSE button to close the popup window.
Use the INPUT TO TALKBACK field GAIN knob and level meter to adjust the input level
of the connected mic.
NOTE
The PAD will be switched on or off internally when the HA gain is adjusted between +17 dB and
+18 dB.
Keep in mind that noise may be generated when using phantom power if there is a difference
between the Hot and Cold output impedance of an external device connected to the INPUT jack.
5.
Press a button in the ASSIGN field to specify the bus(es) to which the talkback
signal will be sent (multiple selections are allowed).
NOTE
You can press the CLEAR ALL button to defeat all selections.
6.
To enable talkback, press the TALKBACK ON button to turn it on.
The TALKBACK ON button will alternately turn on or off each time you press the button (Latch
operation).
While talkback is on, signals from the TALKBACK jack and the selected INPUT jack will be
output to the destination buses.
NOTE
• You can also assign talkback on/off or an ASSIGN change to a USER DEFINED key. In this case,
you can select either a Latch operation or an Unlatch operation (the function will be enabled only
while you continue holding down the key) (see
• When talkback is on, you can use the talkback dimmer to lower the monitor levels other than the
talkback signal (see page 97).
page 164).

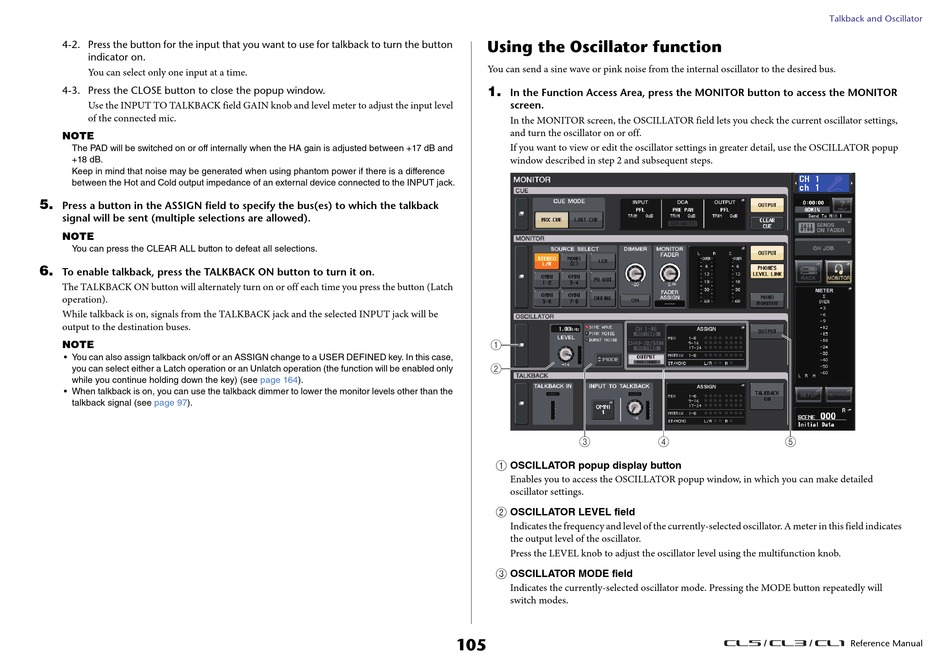

Using the Oscillator function

You can send a sine wave or pink noise from the internal oscillator to the desired bus.
1.
In the Function Access Area, press the MONITOR button to access the MONITOR
screen.
In the MONITOR screen, the OSCILLATOR field lets you check the current oscillator settings,
and turn the oscillator on or off.
If you want to view or edit the oscillator settings in greater detail, use the OSCILLATOR popup
window described in step 2 and subsequent steps.
1
2
3
1
OSCILLATOR popup display button
Enables you to access the OSCILLATOR popup window, in which you can make detailed
oscillator settings.
2
OSCILLATOR LEVEL field
Indicates the frequency and level of the currently-selected oscillator. A meter in this field indicates
the output level of the oscillator.
Press the LEVEL knob to adjust the oscillator level using the multifunction knob.
3
OSCILLATOR MODE field
Indicates the currently-selected oscillator mode. Pressing the MODE button repeatedly will
switch modes.
105
