Basic settings

Well-prepared for everything.
prior to the installation of an ABB-Welcome system. These can
be carried out by the electrical installer already at the factory,
so that the devices can be directly installed at the customer's
premises.
The following settings are to be carried out.
Setting the address of the outdoor
The allocation to one of the four inputs of the ABB-Welcome
system is made on the outdoor stations and the associated
switch actuators for door and light via the setting of the
address.
Here the rotary knob house/outdoor is set on an address
between 1 and 4. The knob is located on the rear of the
Fig. 24
Rotary knob for setting the address of an
outdoor station
K10
36 Commissioning | User Manual ABB-Welcome
Several settings need to be made
station:

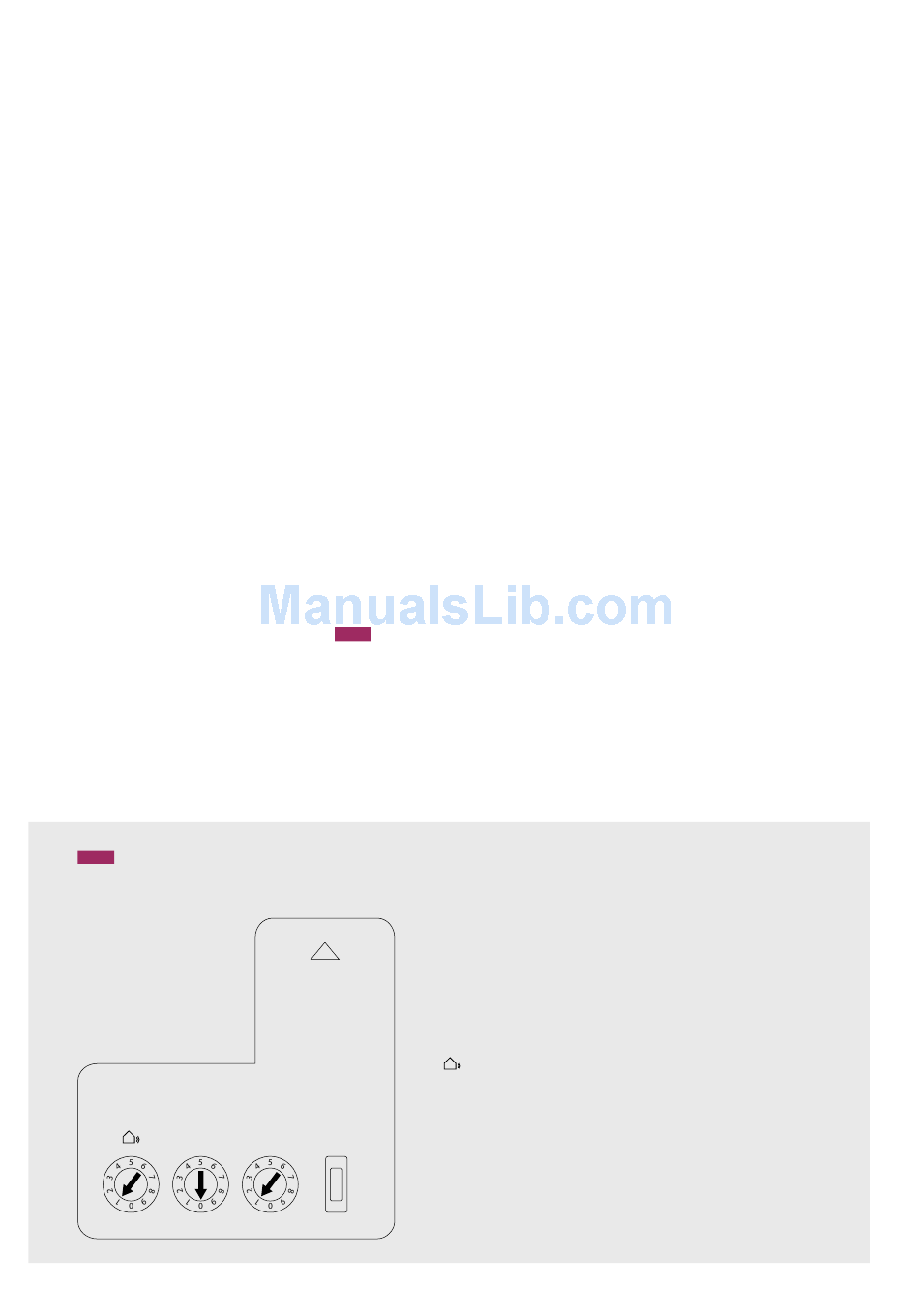

Fig. 24
Top
K1 TT
ON
outdoor station or the front of the MDRC switch actuator.
Setting the button sounds on/off
On the outdoor stations the acoustic feedback signal is
switched on and off via the "TT" button sounds switch when
a doorbell button is pressed. The switch is located on the
rear of the outdoor station.
Setting in the workshop. Installing at the building and in the apartment.
Address
Outdoor station
K10 Bell button
Tens digit
K1 Bell button
Single digit
TT Button sounds
(ON = active)
Comfortable for the electrical installers.
