QuickSpecs
Overview
With the introduction of the HP 3PAR StoreServ 10000 Storage with Thin Built In™, HP 3PAR remains the first storage vendor to
incorporate thin capabilities into array hardware. The two new HP 3PAR® Gen4 ASIC in each HP 3PAR StoreServ 10000 Controller Node
provides hyper-efficient, silicon-based engines that drive simple, on-the-fly storage optimizations to maximize capacity utilization
while delivering high service levels. The revolutionary innovations of HP 3PAR StoreServ 10000 Storage make it the heir to HP 3PAR T-
Class Storage.
What's New
HP 3PAR StoreServ 10400 Storage with maximum 384GB of total cache
Increase in maximum raw capacity supported in the HP 3PAR StoreServ 10000 Storage:
1.6PB on HP 3PAR StoreServ 10400
3.2PB on HP 3PAR StoreServ 10800
New 480GB and 920GB SSD drives and 4TB NL SAS drives in HP 3PAR StoreServ 10000 Storage
FIPS 140-2 certified Data-At-Rest encryption with self-encrypting drives on HP 3PAR StoreServ 10000 Storage
New Premier Flex OM4 optic cables and Direct Attach Copper cables on HP 3PAR StoreServ 10000 Storage

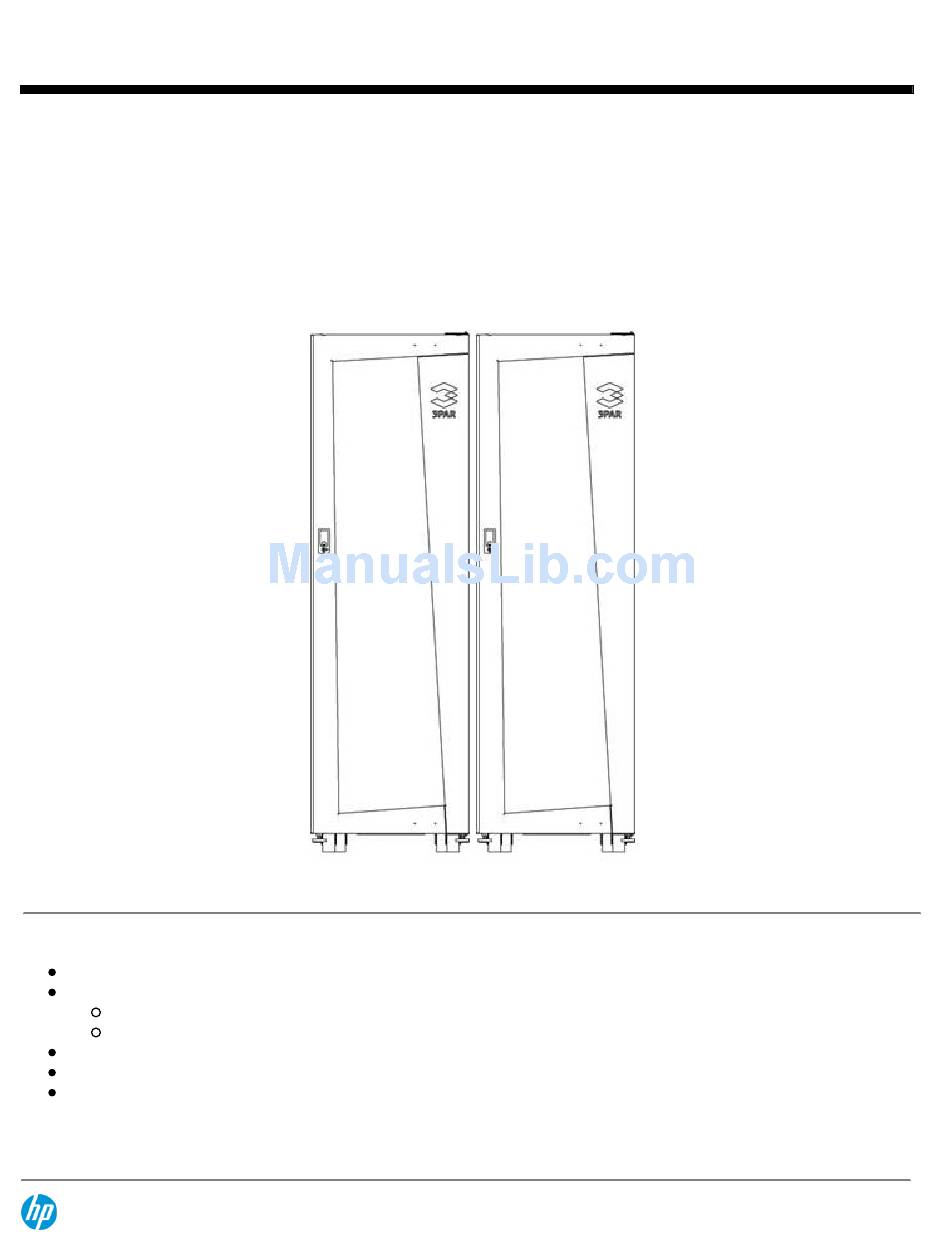

HP 3PAR StoreServ 10000 Storage
DA - 14103 Worldwide — Version 19 — January 17, 2014
HP 3PAR StoreServ 10000 Storage
Page 1

Advertisement

loading

Related Manuals for HP 3PAR StoreServ 10000

Summary of Contents for HP 3PAR StoreServ 10000

  • Page 1 Overview With the introduction of the HP 3PAR StoreServ 10000 Storage with Thin Built In™, HP 3PAR remains the first storage vendor to incorporate thin capabilities into array hardware. The two new HP 3PAR® Gen4 ASIC in each HP 3PAR StoreServ 10000 Controller Node provides hyper-efficient, silicon-based engines that drive simple, on-the-fly storage optimizations to maximize capacity utilization while delivering high service levels.
  • Page 2 (Each Drive Chassis holds up to 40 drives in 4U) NOTE: Support for SAS drives on HP 3PAR StoreServ 10000 Storage is currently available with HP 3PAR OS version 3.1.2 and later versions. NOTE: Native FCoE support is available only for limited host configurations. Please check with your regional manager for more details NOTE: A dedicated CNA is required for FCoE host connectivity DA - 14103 Worldwide —...
  • Page 3 HP 3PAR StoreServ 10000 Storage Overview NOTE: The 1600TB and 3200 TB maximum raw capacity limits for the HP 3PAR StoreServ 10400 and 10800 Storage respectively are applicable only to systems running HP 3PAR OS version 3.1.3 or later 1 Each port is full bandwidth 8 Gbit/s Fibre Channel capable 2 Recommended minimum is 32 drives which results in a 9.6 TB minimum raw capacity.
  • Page 4 With the HP 3PAR Gen4 ASIC's built-in, hardware-based zero-detection capabilities, migration of "fat" volumes from other storage platforms to new "thin" volumes on HP 3PAR Storage is achieved with the greatest speed possible and without the application disruption of software-based implementations. The HP 3PAR Gen4 ASIC's enables the automatic migration of data from sparsely used pages to enable 128MB regions to be reclaimed for re-use by other volumes.
  • Page 5 In an ideal world, all storage volumes would start thin using HP 3PAR Thin Provisioning Software. But in some cases, starting thin has not been an option, particularly when it comes to data stored on legacy arrays from traditional storage vendors.
  • Page 6 HP 3PAR StoreServ Data The HP 3PAR StoreServ Data Encryption enables the encryption for all the data that is stored on the internal drives of the 3PAR StoreServ Storage. The 3PAR StoreServ Data Encryption solution encrypts and Encryption decrypts all data written to and read from the media automatically.

  • Page 7: Service And Support, Hp Care Pack, And Warranty Information

    NOTE: SSDs have a limited number of writes that can occur before reaching the SSD's write endurance limit. This limit is generally high enough so wear out will not occur during the expected service life of an HP 3PAR StoreServ under the great majority of configurations, IO patterns, and workloads. HP 3PAR StoreServ tracks all writes to SSDs and can report the percent of the total write endurance limit that has been used.
  • Page 8 Site-specific data used both proactively and reactively with real-time monitoring and information extraction tools. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-4141ENW.pdf Additional services to HP Storage Data Migration - Proven expertise and tools help you migrate data across your data center or meet your needs around the globe. http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-4107EN.pdf HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components.
  • Page 9 QuickSpecs HP 3PAR StoreServ 10000 Storage Service and Support, HP Care Pack, and Warranty Information Customers purchasing from a commercial reseller can find HP Care Pack Services at: www.hp.com/go/lookuptool DA - 14103 Worldwide — Version 19 — January 17, 2014...
  • Page 10 (for backplane, controllers and service processor), service processor. A rackmount kit must be ordered separately for each drive chassis (see Drive section below). These rackmount kits are strictly for new installations into non-HP 3PAR racks. There are two 10400 base configurations available - one that includes total cache:...
  • Page 11 When adding Drive Chassis to a system with QR633C, one QR598A must be ordered for each QR609C ordered HP 3PAR StoreServ 10000 Drives HP 3PAR SAS HDDs HP 3PAR StoreServ 10000 4x300GB 6G 15K SFF SAS Drive Magazine QW902A HP 3PAR StoreServ 10000 4x450GB 6G 10K SFF SAS Drive Magazine QW903A DA - 14103 Worldwide —...
  • Page 12 HP 3PAR StoreServ 10000 4x4TB 6G SAS 7.2K Nearline FIPS Encryption Magazine E7W14A HP 3PAR StoreServ 10000 4x450GB 6G SAS 10K FIPS Encryption Drive Upgr Magazine C8R65B HP 3PAR StoreServ 10000 4x900GB 6G SAS 10K FIPS Encryption Drive Upgr Magazine C8R66B HP 3PAR StoreServ 10000 4x2TB 6G SAS 7.2K Nearline FIPS Encryption Upgr Magazine...
  • Page 13 HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable JG081C NOTE: HP 3PAR StoreServ 10000 Storage supports Direct Attach Copper Cables only with HP ProCurve and HP 3COM switches. The Direct Attach Support is also available only for the iSCSI protocol.

  • Page 14: Specifications

    HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage 647893-B21 Memory Kit NOTE: HP recommends that you add the same type memory to the product that is shipped standard with the product. NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.
  • Page 15 HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter AJ763B HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter QR559A HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter QW972A QLogic Fibre Channel HBAs HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter...
  • Page 16 NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server 2003 and Linux, please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html Power Cord HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord AF556A HP C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord AF557A HP C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord...
  • Page 17 HP 1606 FCIP 4-pt Enabled 8Gb FC 2-pt Enabled 1GbE Base Switch AP862B HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Full Switch AP863B HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Power Pack+ Switch AP864B Brocade 8/12c SAN Switch for BladeSystem c-Class AJ820B...
  • Page 18 HP 8/20q Fibre Channel Switch AK242B NOTE: 16 switch ports active, upgradeable to 20 device ports active HP SN6000 Stackable 8Gb 24-port Single Power Fibre Channel Switch AW575B NOTE: 20 device ports active/4 stacking (ISL) ports active HP SN6000 Stackable 8Gb 24-port Dual Power Fibre Channel Switch...

  • Page 19: Technical Specifications

    QuickSpecs HP 3PAR StoreServ 10000 Storage Technical Specifications Physical Specifications 2-Meter Cabinet Dimensions (width x height x depth) 23.6 x 76.5 x 36 in 60 x 194.3 x 91.3 cm Service Clearance (front and back) Front/Rear: 36 in / 30 in Front/Rear: 91.4 cm / 76.2 cm...
  • Page 20 QuickSpecs HP 3PAR StoreServ 10000 Storage Technical Specifications Frequency (Hz) 50 - 60 Circuit Breaker Maximum 32 A per phase per PDU Power Connectors for 2-Meter Cabinet (2) IEC 309, 4-pole, 5-wire, RED, gnd clocked to 6:00 with 1+1 redundant...
  • Page 21 QuickSpecs HP 3PAR StoreServ 10000 Storage Technical Specifications Environmental Specifications Temperature (°F/°C), 0 - 3,000 ft / 0 - 914.4 m 50 - 104°F / 10 - 40°C Temperature (°F/°C), 3,000 - 10,000 ft / 914.4 m - 3,048 m 50 - 95°F / 10 - 35°C Altitude (ft/m) max.

  • Page 22: What's New

    Overview - HP 3PAR StoreServ File Controller HP 3PAR StoreServ File Controller is a new converged storage capability on the HP 3PAR StoreServ Storage platform. It adds support for file services to the 3PAR StoreServ. The HP 3PAR StoreServ File Controller is designed to deliver efficient, secure, and highly available file capaility that supports hundreds to thousands of concurrent users.
  • Page 23 QuickSpecs HP 3PAR StoreServ 10000 Storage Overview - HP 3PAR StoreServ File Controller Unit ID LED USB connectors (4) Systems Insight Display Video connector Asset Tag iLO connector USB connector Serial connector Drive Bays FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2...
  • Page 24 File system online self healing, online verification, and precise and rapid repair massively reduce downtime from file corruption. HP Active Health System, mirrored OS disks, RAID for data disks, redundant fans and power, and advanced memory protection maximize uptime. Three year onsite parts and labor warranty for the system, and one year of software telephone support.
  • Page 25 QuickSpecs HP 3PAR StoreServ 10000 Storage SAN / Array Compatibility - HP 3PAR StoreServ File Controller Operating System Microsoft Windows Storage Server 2012, Standard Edition Windows Storage Server 2012 (WSS2012) includes a robust range of file serving and storage capabilities. It addresses heterogeneous file workload environments and enables more efficient storage utilization.
  • Page 26 QuickSpecs HP 3PAR StoreServ 10000 Storage SAN / Array Compatibility - HP 3PAR StoreServ File Controller includes the following features: Storage reports: Storage reports are used to help you identify trends in disk usage and how your data is classified. You can also monitor a selected group of users for attempts to save unauthorized files.
  • Page 27 B21). See Option Section below for offering Storage Controller NOTE: HP 3PAR StoreServ File Controller includes a storage controller designed for internal drives housing the O/S mirror only; an HBA is required to address connectivity to the 3PAR StoreServ Storage array.
  • Page 28 Power Cords NOTE: The HP 3PAR StoreServ File Controller is primarily connected to PDU's in data center racks so they now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001). If a user wishes to power a system using a110V receptacle see Power Cord option section for more options.
  • Page 29 3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery. For more information about HP's Global Limited Warranty and Technical Support, visit: http://www.hp.com/products/storageworks/warranty...
  • Page 30 LUN, virtual volume, or virtual disk (Vdisk) configuration http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf HP Proactive Select - A flexible way to purchase services to fit your environment with an extensive menu of HP Proactive Select event and technical services, such as onsite firmware upgrades, health checks, assessments, and education http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf...
  • Page 31 HP 3PAR StoreServ Storage for when you are looking to optimize the utilization of HP 3PAR StoreServ Storage by improving capacity utilization and performance http://h20195.www2.hp.com/V2/GetPDF.aspx/c01658303.pdf HP 3PAR StoreServ Health Check - Assessment of the overall health and supportability of your HP 3PAR StoreServ Storage http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA4-3404ENW.pdf...
  • Page 32 For more information www.hp.com/services/storage To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized Channel Partner HP Care Pack Services are sold by HP and HP Authorized Service Partners: Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
  • Page 33 QuickSpecs HP 3PAR StoreServ 10000 Storage Storage - HP 3PAR StoreServ File Controller Eight 3.5" (LFF) hot plug hard drive bays (File Controller ships with only two SAS drives for OS) DA - 14103 Worldwide — Version 19 — January 17, 2014...
  • Page 34 QuickSpecs HP 3PAR StoreServ 10000 Storage Technical Specifications - HP 3PAR StoreServ File Controller 3PAR StoreServ File Controller Dimensions (H x W x D) SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm) (with bezel)
  • Page 35 QuickSpecs HP 3PAR StoreServ 10000 Storage Technical Specifications - HP 3PAR StoreServ File Controller 900 W (at 120 VAC), 1200 W (at 200 to 240 VAC) For 750 W Power Supply: 750 W (at 100 to 120 VAC), 750 W (at 200 to 240 VAC)
  • Page 36 For information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your Support server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport Client System Support...
  • Page 37 Host Memory Addressing 64-bit, supporting greater than 4GB server memory space HP Ethernet 1Gb 4-port HP Flexible Network HP Flexible Network Technology consists of replaceable network solutions to meet the customers require now or in the future. 331FLR Adapter Technology...
  • Page 38 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
