Cabling Configuration Guide B: 2 Node Systems with Large 3.5-inch Drive Enclosures Abstract This guide provides cabling information for authorized technicians performing installation and maintenance services on the HP 3PAR StoreServ 7000/7450 Storage systems. HP Part Number: QR482-96397 Published: June 2013...

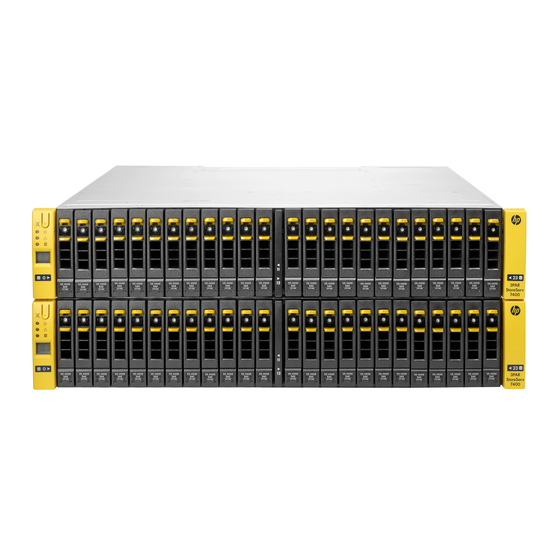

HP 3PAR StoreServ 7000/7450 according to a specific configuration. All HP 3PAR StoreServ Storage systems contain either the HP 3PAR 7200 (2 nodes) or 7400/7450 (with 2 or 4 nodes), M6720 large drive enclosure(s), and M6710 small drive enclosure(s).
Page 5
Types of Components Use the red and green color coding to assist with the cabling. Only connect to components sharing the same color. Figure 1 Identifying Components and SAS Ports Identifying and Labeling the Components...
Page 6
The illustrative depiction may not reflect the configuration setup of your system but the labeling pattern is similar. Figure 2 Labeling the Enclosures For more information relating to cabling hosts, refer to HP 3PAR StoreServ 7000/7450 Installation Guide. Cabling Preparation for HP 3PAR StoreServ 7000/7450...
2 Cabling HP 3PAR StoreServ 7000/7450 The following illustrative sections provide a rear view of the rack with recommended racking configuration of the system. 2 Node 1 Drive Enclosures (1L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components”...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 2 Drive Enclosures (2L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 2 Drive Enclosures (2L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 3 Drive Enclosures (3L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 3 Drive Enclosures (3L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 4 Drive Enclosures (4L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 4 Drive Enclosures (4L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 5 Drive Enclosures (5L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 5 Drive Enclosures (5L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 6 Drive Enclosures (6L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 6 Drive Enclosures (6L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 7 Drive Enclosures (7L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 7 Drive Enclosures (7L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 8 Drive Enclosures (8L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 8 Drive Enclosures (8L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
2 Node 9 Drive Enclosures (9L) Before you begin cabling the storage system, carefully read or print the following section, including figures 1 and 2, “Identifying and Labeling the Components” (page 2 Node 9 Drive Enclosures (9L)
Connect Node 1 (DP-1) to I/O 1 (DP-1) on the A drive enclosure farthest from the controller. Connect all A drive enclosures from (DP-2) to (DP-1) working toward the controller. NOTE: The two adjacent enclosures are not directly connected. Cabling HP 3PAR StoreServ 7000/7450...
Attach DP-2 Chains to Enclosures Red routing Connect Node 0 (DP-2) to the I/O 0 (DP-1) on the B drive enclosure closest to the controller. Connect all B drive enclosures from (DP-2) to (DP-1) working away from the controller. Green routing Connect Node 1 (DP-2) to I/O 1 on the B drive enclosure farthest from the controller.
For additional information about other related cabling configurations, refer to the following documents: HP 3PAR StoreServ 7000/7450 Storage Cabling Configuration Guide A: 2 Node Systems with Small 2.5-inch Drive Enclosures HP 3PAR StoreServ 7000/7450 Storage Cabling Configuration Guide B: 2 Node Systems with Large 3.5-inch Drive Enclosures...
