Cub Cadet Sc2450 Part List Manual page 9

Sc Series
REF
NO. PART NUMBER
1 CY-129100-01580 PARALLEL PIN 8X16
2 CY-119517-01600 FLANGE, MOUNT.
3 CY-26206-100202 BOLT M10X20
4 CY-119620-01620 PARALLEL PIN 6X10
5 CY-119527-01640 CASE ASSY, OIL SEAL
7 CY-124085-02220 SEAL, OIL
8 CY-26106-060222 BOLT M 6X 22 PLATED
9 CY-119515-01720 SPACER, OIL SUMP
10 CY-119517-01750 SUMP ASSY, LUB.OIL
11 CY-129054-01640 DRAIN PLUG
13 CY-22190-120002 SEAL WASHER 12
14 CY-26106-060122 BOLT M 6X 12 PLATED
15 CY-26106-060252 BOLT M 6X 25 PLATED
16 CY-26106-060452 BOLT M 6X 45 PLATED
9

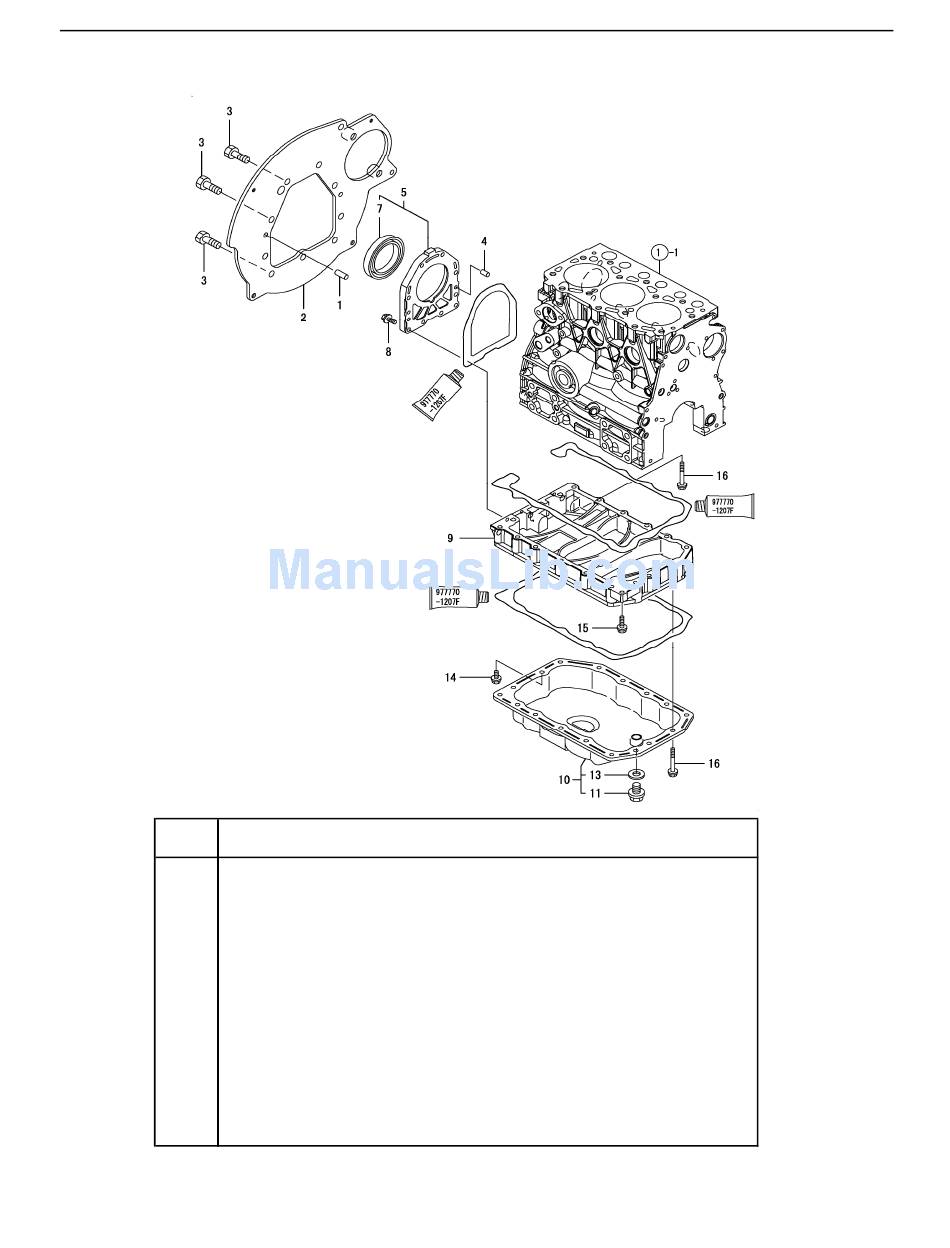

FIG. 3. OIL PAN & REAR ENGINE PLATE
DESCRIPTION
Copyright 2009 Cub Cadet Yanmar LLC
Sc2450
QTY
2
1
10
2
1
1
10
1
1
1
1
1
1
17
