Cub Cadet SLT1554 Parts Manual

Series 1500 hydrostatic lawn tractor
Hide thumbs Also See for SLT1554:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

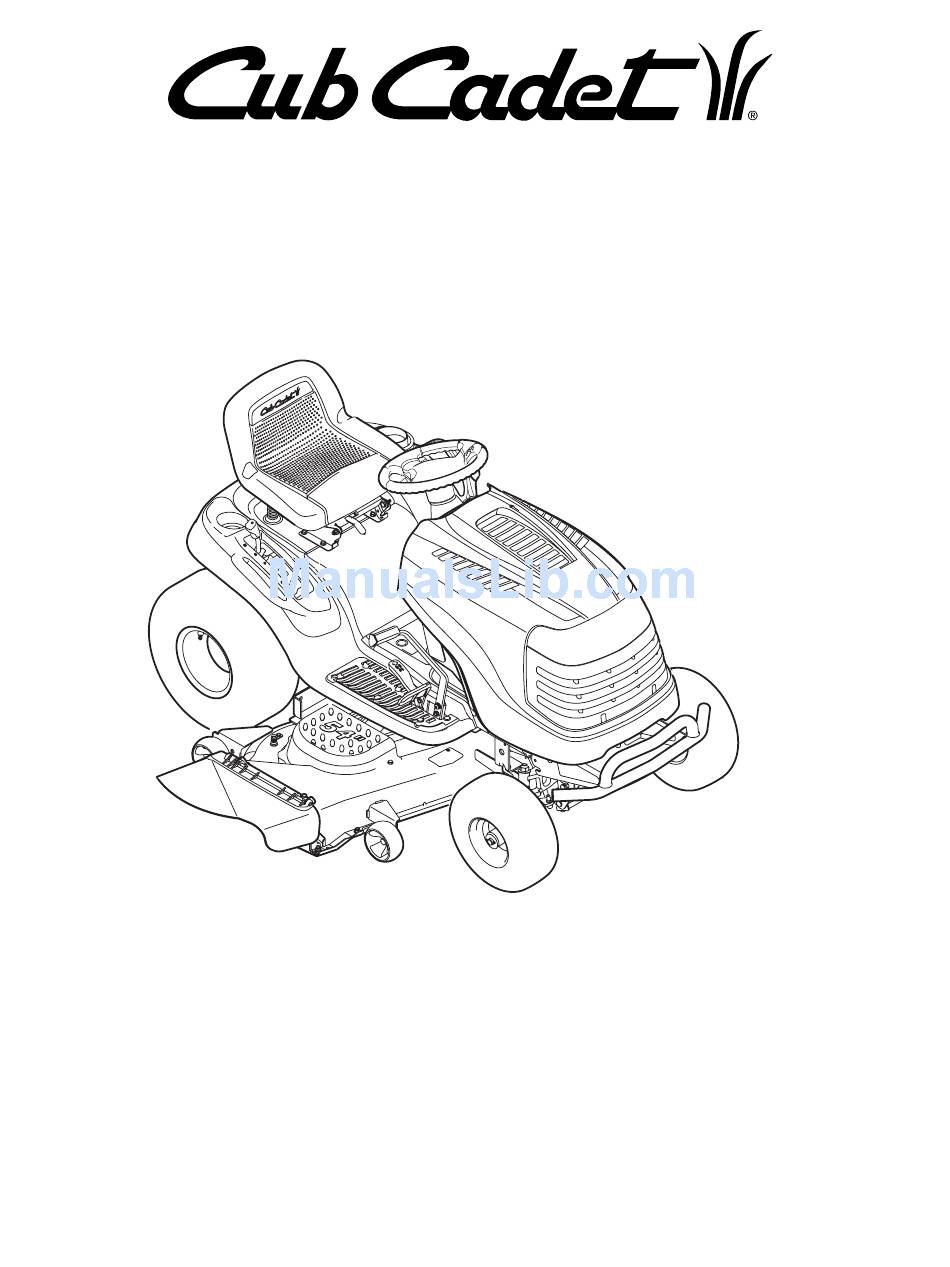

Parts Manual

S
ERIES 1500
Hydrostatic Lawn Tractor
Model SLT1554
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO. 769-01652.fm
PRINTED IN U.S.A.
(1/17/2005)

Advertisement

Table of Contents
loading

Related Manuals for Cub Cadet SLT1554

Summary of Contents for Cub Cadet SLT1554

  • Page 1: Parts Manual

    Parts Manual ERIES 1500 Hydrostatic Lawn Tractor Model SLT1554 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORM NO. 769-01652.fm PRINTED IN U.S.A. (1/17/2005)
  • Page 2 SERIES 1500 HYDROSTATIC LAWN TRACTORS TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE Axle, Front ............Fuel Tank ............Battery ............. Head Lamp ............Brake Pedal ............. Hood ..............Deck, 54-inch............ Lift Linkage ............Dash Panel ............Muffler .............. Drive System ........... PTO ..............
  • Page 3 WHEELS REF. PART NUMBER DESCRIPTION QTY. 734-04174 Tire, Turf, Cub Cadet 22 x 9.5 x 12 634-3178 Rim Assembly, 12 x 7 (4-Lug) 712-3050 Lug Nut, 7/16-14 741-3032 Bearing, Ball,.75 ID x 1.75 OD 634-04104A Rim Assembly, 6 x 4.5...
  • Page 4 DRIVE SYSTEM Attach Spring Here...
  • Page 5 DRIVE SYSTEM REF. PART NUMBER DESCRIPTION QTY. 17840 Bracket, Mounting, Transaxle 618-04228 Hub Assembly, Wheel 618-04270 Transmission, Hydrostatic 629-04124 Harness Assembly, Ground & Reverse 1 783-04442 Bracket Assembly, Idler, Center Dbl 710-1266 Hex Cap Screw, 5/16-18,3.5, Gr5 710-0227 Screw, #8-18, 0.500 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 710-0726...
  • Page 6 STEERING...
  • Page 7 STEERING REF. PART NUMBER DESCRIPTION QTY. 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 711-1408 Link, Drag, RH 711-1409A Link, Drag, LH 710-1260 Self-tapping Screw, 5/16-18 x.75 712-0240 Nut, Jam, 7/16-20, Gr2 712-0214 Nut, Hex, 3/8-24, Gr5 712-04065 Nut, Nylon Lock, 3/8-16 712-0459 Nut, Flange Lock, 7/16-20 712-3004A...
  • Page 8 FRAME...
  • Page 9 FRAME REF. PART NUMBER DESCRIPTION QTY. 17962 Plate, Switch 683-04173 Frame Assembly, Lower 726-0205 Clamp, Hose,.490 Dia. 710-0224 Screw, Hex Wash. Hd. Tapp, 10-16 x.5 710-0726 Screw, Self-tapping, 5/16-18, 0.75 751-0535 Fuel Line 710-1652 Screw, Hex Wash. Hd. Tapp, 1/4-20 x 0.625 725-04039 Switch, Interlock 712-04065...
  • Page 10 FENDER & FUEL TANK REF. PART NUMBER DESCRIPTION QTY. 710-0451 Bolt, Carriage, 5/16-18 x.750 Lg 710-0726 Screw, 5/16-12, 0.75 710-0895 Screw, 1/4-15, 0.750 712-04063 Nut, Nylon Lock, 5/16-18 731-2616A Cover, Fender, RH 731-2617 Cover, Fender, LH 736-3078 Washer, Flat,.349 x 1.00 x.063 783-0677 Bracket, Lift, Adjustment 783-1489A...
  • Page 11 LIFT ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 683-04118 Shaft Assembly, Lift 711-0332 Pin, Clevis,.50 Dia x.78 Lg 783-0720A Bracket, Deck 712-04065 Nut, Nylon Lock, 3/8-16 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 783-0678A Arm, Lift 714-0104 Pin, Cotter,.072 Dia. x 1.13 Lg 714-0111 Pin, Cotter, 3/32, 1.0 714-04023...
  • Page 12 PEDAL ASSEMBLY...
  • Page 13 PEDAL ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 647-0031B Control Assembly, Brake 647-0049A Control Assembly, Hydro 710-0726 Screw, Self-tapping, 5/16-12, 0.75 710-0650 Screw, Self-tapping, 5/16-18, 0.875 736-0119 Washer, Lock, 5/16 783-0773A Pedal, Brake 711-04159B Pin, 3/8-16, 3/8 x 2.68 712-04065 Nut, Nylon Lock, 3/8-16 712-3004A Nut, Flange Lock, 5/16-18, Gr5 714-0104...
  • Page 14 ADJUSTABLE SEAT REF. PART NUMBER DESCRIPTION QTY. 783-0739A Lever, Seat, Adjustment 710-1268 Screw, #10-16, 0.375 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 712-3027 Nut, Nylon Lock, 1/4-20 720-0433 Grip, Seat, Adjustment (Yellow) 726-0201 Nut, Speed,.3125 ID 731-04074 Spacer, Seat, Adjustment 732-0499 Spring, Compression.41 OD x 1.50 732-1184 Spring, Extension,.80 Dia x 4.6 Lg.
  • Page 15 ENGINE ACCESSORIES REF. PART NUMBER DESCRIPTION QTY. 710-0227 Screw, #8-18, 0.500 710-0599 Screw, Hex, 1/4-20, 0.500 710-0726 Screw, Hex, 5/16-12 x.75 710-1315 Screw, Hex, 3/8-16 x 1.25 751-0805 Muffler, Dual Inlet 725-0157 Cable, Tie, 3/16 x.05 x 7.4 751-0645A Pipe, Exhaust, RH 712-3005 Flange Lock Nut, 3/8-16 736-0300...
  • Page 16 DASH PANEL...
  • Page 17 DASH PANEL REF. PART NUMBER DESCRIPTION QTY. 710-0837 Screw, #10-16 x.625 710-0192 Screw, #10-24 x.375 710-0599 Screw, Self-tapping, 1/4-20, 0.500 710-0642 Screw, Hex. 1/4-20 x.75 736-0362 Flat Washer,.330 x 1.25 x.06 710-0703 Screw, Carriage, 1/4-20,.75, 710-0726 Screw, Hex, 5/16-12 x.75 710-0895 Screw, 1/4-15, 0.750 710-1611B...
  • Page 18 HOOD & GRILLE REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 710-0726 Screw, 5/16-12 x.750 747-04354 Hood Pivot Rod 710-0895 Screw, 1/4-15 x.750 747-04368 Hood Latch Rod 710-1276 Screw, Self Tapp, 1/4-20 x.750 747-1323A Rod,.250 Dia. x 4.55 Lg. 710-3170 Screw, Ball, 5/16-18 x.56 749-04207...
  • Page 19 POWER TAKE-OFF (PTO) SYSTEM REF. PART NUMBER DESCRIPTION QTY. 710-0859 Screw, 3/8-16 x 2.5 GR5 710-0726 Screw, 5/16-12,.75 783-04419A Bracket, Clutch 710-3157A Screw, Hex Cap, 7/16-20 x 3.25 GR5 783-04467 Deck Stop 717-1774B Clutch, Electric PTO 712-04065 Nut, Hx. Nylon Lock, 3/8-16 736-0277 Washer, Flat, 1.031 x 1.62 x.095 748-0415B...
  • Page 20 54-INCH MOWER DECK...
  • Page 21 54-INCH MOWER DECK REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 16606 Hook, Retainer Bracket 731-3005 Front Roller 618-04129B Spindle Assembly 732-0306A Sprg, Comprs,.531OD x 1.75 Lg. 683-0254B Hanger Bracket Assembly 732-0459B Spring, Ext.,.94 Dia. x 6.74 Lg. 683-04079 Lift Shaft Assembly 732-0934...
  • Page 22 TRANSMISSION...
  • Page 23 TRANSMISSION NOTE: Include a HG- prefix when ordering replacement transmission parts (i.e. HG-70467).
  • Page 24 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019...
