Understanding the lights

Armed
Light
Instant Light
Fire Light
Pull out zone ID Tab
Zone Lights
Armed Light The armed light is "on" when the system is armed. The armed light is "off" when it is disarmed.
The armed light will flash when there has been an alarm during the previous arm cycle.
Bypass Light The bypass light is "on" when any zone in this keypad's partition is bypassed. If the bypass light is
"off", no zones are bypassed.
Cancel Light The cancel light will flash during an abort delay time. Entering a code followed by the [CANCEL]
key during or after an alarm report to the central station will cause the cancel light to come on. It
will stay on until the central station has received the cancel report. NOTE: The cancel feature
must be enabled. (See "Cancel/Abort Feature")
Chime Light The chime light is "on" when the chime feature is "on"; "off" otherwise.
Exit Light The exit light is "on" during the exit delay. Please note that the light will flash during the last 10
seconds of the exit delay as a warning that the time is running out. (The user may want to
disarm the system if the exit light is flashing in order to prevent an alarm. The user may then re-
arm the system and exit before the delay expires.)
Fire Light A steady fire light means a fire zone has been faulted. A rapidly flashing fire light means that a fire
zone is in a trouble condition.
NX-108/116/124E User manual

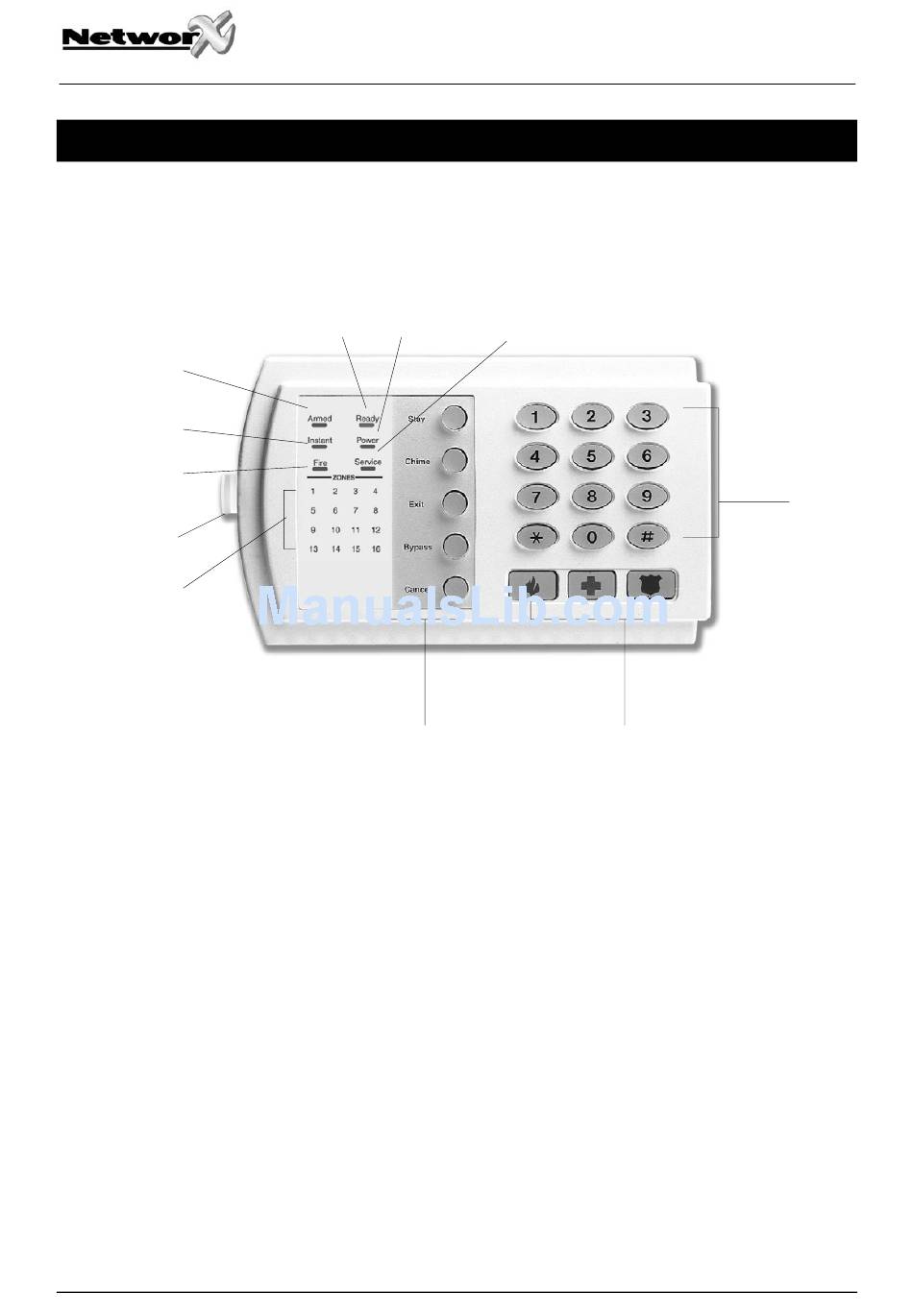

KEYPAD DISPLAY & LED'
Ready Light Power Light
5 function keys
Page 6
S
Service Light
3 emergency activation keys
Numeric code
entry keys
