64-Bit PCI Slot (1)
2
I C
Connector
NOTE
Refer to "System Board Layout" in the Appendix A,
"Specifications," for connections not shown in Figure 5-2.
7. Lift and rotate the securing clamp up to about a 45 angle. See Figure 5-3.
The securing clamp holds the riser board in place and helps secure the PCI
board.
8. Remove the securing clamp from the chassis and set it aside for
re-assembly later.
Riser Board (not shown)
System Board (top view)

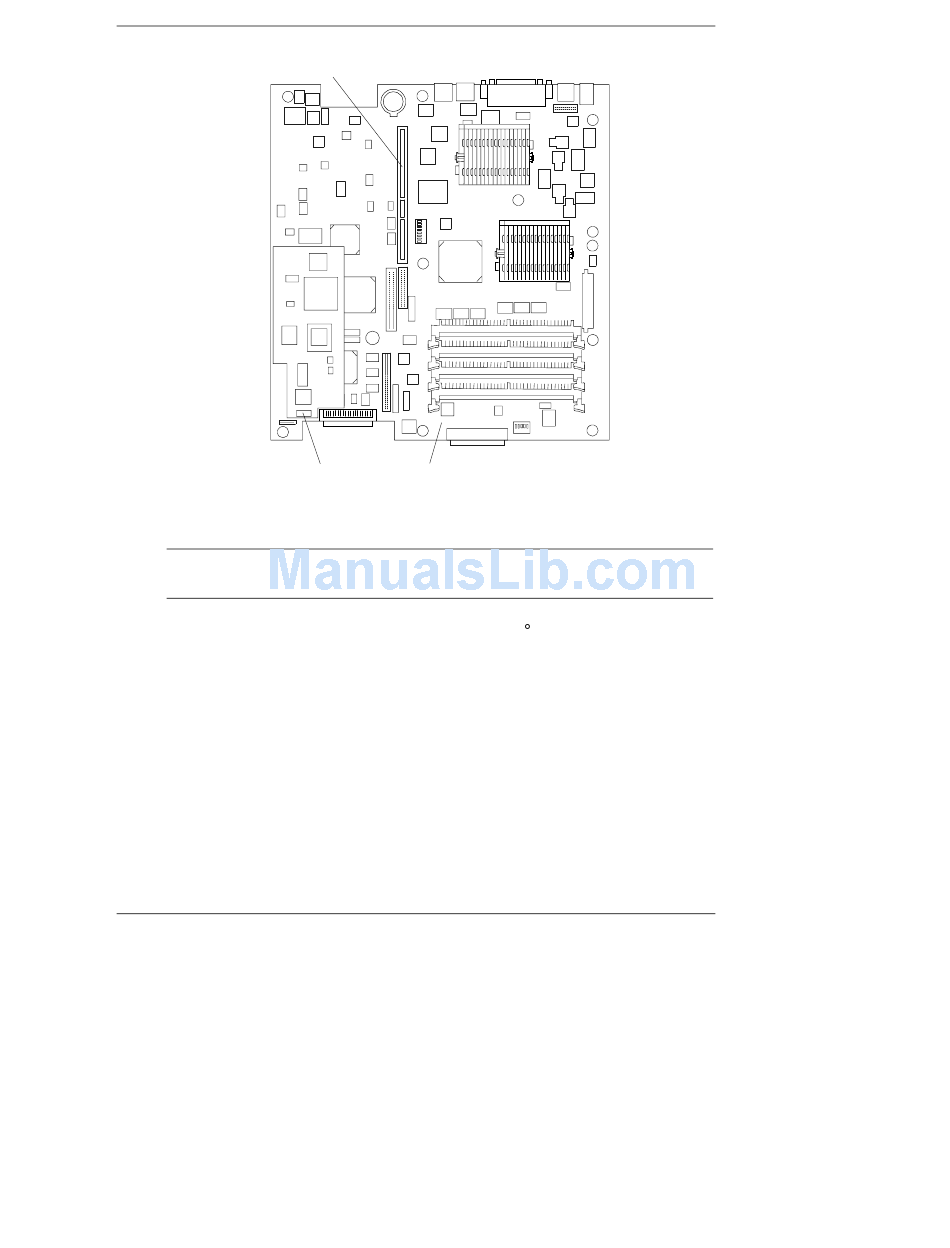

Figure 5-2. PCI Accessory Board Slot
Installing Additional Boards
39
