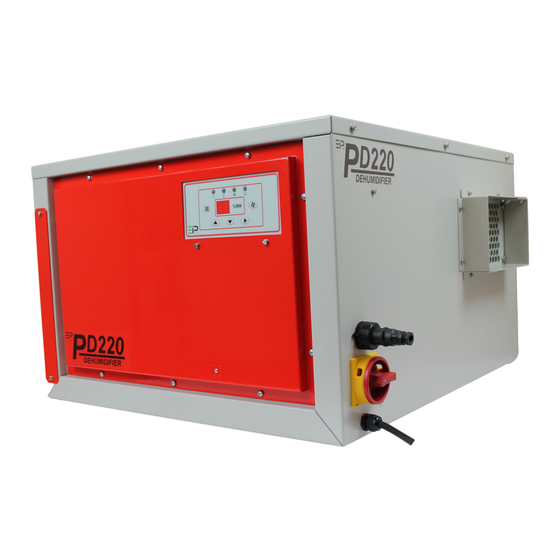

- Page 1 Drawing No. :- TPC608 Issue :- 1 Date :- 12/06/24 EBAC MODEL PD220 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL Ebac Industrial Products, Inc. 700 Thimble Shoals Blvd, Suite 109 Newport News, VA. 23606-2575 Tel: (757) 873 6800 Fax: (757) 873 3632 Website www.ebacusa.com...
-
Page 2: Package Contents
Drawing No. :- TPC608 Issue :- 1 Date :- 12/06/24 PD220 PACKAGE CONTENTS Item Description Quantity 10151GY-US Dehumidifier 3014338 PVC tube – 12mm I/D 3086101 Jubilee clip 3037866 6 Pin Plug TPC608 Manual PD220 OWNERS MANUAL... - Page 3 :- 12/06/24 UNPACKING Carefully remove the PD220 dehumidifier unit from its transit box and visually check for signs of transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your supplier for advice. Do not discard the packing, it will be useful when transporting the dehumidifier unit in the future.
-
Page 4: Specifications
Ebac PD220 ODEL 17.5” (443mm) EIGHT 27.5” (700mm) IDTH 26” (660mm) EPTH 165 lbs (75Kg) EIGHT 664 CFM (1130 M3/hr) IRFLOW 2.1Kw OWER 220V / 60Hz / 1ph OWER UPPLY Powder-coated Epoxy INISH R410a / 49.4oz (1.4Kg) EFRIGERANT PD220 OWNERS MANUAL... -
Page 5: Installation
• This connection is low voltage low current, suggested cable specification 2 core 16/0.2 (0.5mm) screened cable. • Connection is across pins 5 and 6 of the 6 pin connector • The Jumper on the main control board should be removed from position “E” to allow this feature to operate. PD220 OWNERS MANUAL... - Page 6 • Suggested cable specification 4 core 16/0.2 (0.5mm) screened cable. • Connection details:- o Free Socket - Pin 1 - +12Vdc o Free Socket - Pin 2 - RX o Free Socket - Pin 3 - TX o Free Socket - Pin 4 - 0V PD220 OWNERS MANUAL...
- Page 7 Blue – Solid – Drying On Green – Solid – Recirculation Mode (Fan Only) Yellow – Flashing – Defrost mode selected Defrost Yellow – Solid – Defrosting in progress Alarm Red – Solid – Fault - High RH PD220 OWNERS MANUAL...
- Page 8 Note this feature is reset when the isolator is set to OFF or power is removed from the unit. The dehumidifier remembers the last mode of operation, and also the previously adjusted set point. PD220 OWNERS MANUAL...
- Page 9 In warmer climates defrost is not required, allowing the dehumidifier to continually dry. If, after carrying out the above procedures, the appliance does not appear to function properly, refer to the Trouble Shooting section, which follows, or contact EIPL. PD220 OWNERS MANUAL...
-
Page 10: Routine Service
Partial frosting accompanied by frosting of the thin capillary tubes, indicates loss of refrigerant gas or low charge. Check all wiring connections. F ANY OF THE PRECEDING PROBLEMS OCCUR CONTACT THE ERVICE ENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO PREVENT PERMANENT DAMAGE PD220 OWNERS MANUAL... - Page 11 An open circuit indicates that the compressor should be replaced. c. Check that the compressor is not grounded by establishing that a circuit does not exist between the compressor terminals and the shell of the compressor. PD220 OWNERS MANUAL...
-
Page 12: Troubleshooting
2. Ensure that no section of the drain machine 2. Drain pipe too high hose is above the level of the water outlet Ebac Industrial Products, Inc. 700 Thimble Shoals Blvd, Suite 109 Newport News, VA. 23606-2575 Tel: (757) 873 6800 Fax: (757) 873 3632 Website www.ebacusa.com... - Page 13 PCB Mounting Pin 3101413 Contactor 3930736 Isolator 3932332 Light Pipe Lens 3931732 Compressor Capacitor 3933512 Mains Plug 3934516 PCB Connecting Cable (300mm) 3934519 PCB – Plug Cable 3935428 Condensate Drain Tube 3944115 Compressor 3944949 Fan Motor 3947037 Capillary 3014252 PD220 OWNERS MANUAL...
- Page 14 This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The refrigeration system is hermetically sealed. The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac Industrial Products Ltd is as follows R410a – 2088...
- Page 15 Drawing No. :- TPC608 Issue :- 1 Date :- 12/06/24 PD220 OWNERS MANUAL...
- Page 16 Drawing No. :- TPC608 Issue :- 1 Date :- 12/06/24 UK Head Office American Sales Office Ebac Industrial Products Ltd Ebac Industrial Products Inc St Helens Trading Estate 700 Thimble Shoals Blvd. Bishop Auckland Suite 109, Newport News County Durham...
