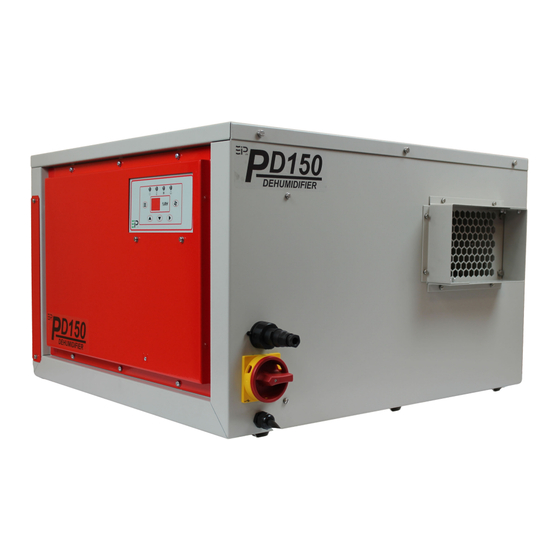

- Page 1 Drawing No. :- TPC607 Issue :- 1 Date :- 05/06/24 EBAC MODEL PD150 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL Ebac Industrial Products, Inc. 700 Thimble Shoals Blvd, Suite 109 Newport News, VA. 23606-2575 Tel: (757) 873 6800 Fax: (757) 873 3632 Website www.ebacusa.com...
-
Page 2: Package Contents
Drawing No. :- TPC607 Issue :- 1 Date :- 05/06/24 PD150 PACKAGE CONTENTS Item Description Quantity 10150GY-US Dehumidifier 3014338 PVC tube – 12mm I/D 3086101 Jubilee clip 3037866 6 Pin Plug TPC607 Manual PD150 OWNERS MANUAL... - Page 3 :- 05/06/24 UNPACKING Carefully remove the PD150 dehumidifier unit from its transit box and visually check for signs of transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your supplier for advice. Do not discard the packing, it will be useful when transporting the dehumidifier unit in the future.
-
Page 4: Specifications
ODEL 17.5” (443mm) EIGHT 27.5” (700mm) IDTH 26” (660mm) EPTH 144 lbs (65Kg) EIGHT 585 CFM (995 M3/hr) IRFLOW 1.9 KW OWER 220V / 60Hz / 1ph OWER UPPLY Powder-coated Epoxy INISH R410a / 42.3oz (1.2Kg) EFRIGERANT PD150 OWNERS MANUAL... -
Page 5: Installation
16/0.2 (0.5mm) screened cable. • Connection is across pins 5 and 6 of the 6 pin connector • The Jumper on the main control board should be removed from position “E” to allow this feature to operate. PD150 OWNERS MANUAL... - Page 6 • Suggested cable specification 4 core 16/0.2 (0.5mm) screened cable. • Connection details:- o Free Socket - Pin 1 - +12Vdc o Free Socket - Pin 2 - RX o Free Socket - Pin 3 - TX o Free Socket - Pin 4 - 0V PD150 OWNERS MANUAL...
- Page 7 Blue – Solid – Drying On Green – Solid – Recirculation Mode (Fan Only) Yellow – Flashing – Defrost mode selected Defrost Yellow – Solid – Defrosting in progress Alarm Red – Solid – Fault - High RH PD150 OWNERS MANUAL...
- Page 8 Note this feature is reset when the isolator is set to OFF or power is removed from the unit. The dehumidifier remembers the last mode of operation, and also the previously adjusted set point. PD150 OWNERS MANUAL...
- Page 9 In warmer climates defrost is not required, allowing the dehumidifier to continually dry. If, after carrying out the above procedures, the appliance does not appear to function properly, refer to the Trouble Shooting section, which follows, or contact EIPL. PD150 OWNERS MANUAL...
- Page 10 Partial frosting accompanied by frosting of the thin capillary tubes, indicates loss of refrigerant gas or low charge. Check all wiring connections. F ANY OF THE PRECEDING PROBLEMS OCCUR CONTACT THE ERVICE ENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO PREVENT PERMANENT DAMAGE PD150 OWNERS MANUAL...
- Page 11 An open circuit indicates that the compressor should be replaced. c. Check that the compressor is not grounded by establishing that a circuit does not exist between the compressor terminals and the shell of the compressor. PD150 OWNERS MANUAL...
-
Page 12: Troubleshooting
2. Ensure that no section of the drain machine 2. Drain pipe too high hose is above the level of the water outlet Ebac Industrial Products, Inc. 700 Thimble Shoals Blvd, Suite 109 Newport News, VA. 23606-2575 Tel: (757) 873 6800 Fax: (757) 873 3632 Website www.ebacusa.com... - Page 13 PCB Mounting Pin 3101413 Contactor 3930736 Isolator 3932332 Light Pipe Lens 3931732 Compressor Capacitor 3933511 Mains Plug 3934516 PCB Connecting Cable (300mm) 3934519 PCB – Plug Cable 3935428 Condensate Drain Tube 3944115 Compressor 3944948 Fan Motor 3947037 PD150 OWNERS MANUAL...
- Page 14 The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac Industrial Products Ltd is as follows R410a – 2088 For type and weight of refrigerant contained in this unit, please refer to the product data...
- Page 15 Drawing No. :- TPC607 Issue :- 1 Date :- 05/06/24 PD150 OWNERS MANUAL...
- Page 16 Drawing No. :- TPC607 Issue :- 1 Date :- 05/06/24 UK Head Office American Sales Office Ebac Industrial Products Ltd Ebac Industrial Products Inc St Helens Trading Estate 700 Thimble Shoals Blvd. Bishop Auckland Suite 109, Newport News County Durham...
