Sealey AK3981.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
‰
Familiarise yourself with the application and limitations of the riveter, as well as the potential hazards.
9
Maintain the riveter in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the work area clean, uncluttered and ensure that there is adequate lighting.
9
Keep the riveter clean for best and safest performance.
9
WARNING! Always wear approved eye or face protection when operating the riveter.
‰
Keep children and unauthorised persons away from the work area.
9
Check moving parts alignment on a regular basis.
9
DO NOT hold the workpiece by hand. Secure workpiece with a clamp, vice or other adequate holding device.
8
DO NOT use the riveter for any purpose other than that for which it is designed.
8
DO NOT operate the riveter if any parts are damaged or missing, as this may cause failure and/or personal injury.
8
When not in use return to the case and store in a safe, dry, childproof area.
9
2. INTRODUCTION
Precision made, high grade steel jaws with strong aluminium & cast steel body. Forged alloy steel pins and bolts with double handle bearings
for long-life and durability. Suitable for aluminium and steel rivets of 3.2mm to 6.4mm. Also suitable for stainless steel rivets of 3.2mm to 6.0mm.
Complete with collection pot for used rivets.
3. SPECIFICATION
Model no .............................................................. AK3981.V2
Includes:
Nozzles; 3.2mm((1/16"), 4.0mm (5/32"), 4.8mm(3/16"), 6.00mm & 6.4mm(1/4"),
Spanner
Length: ....................................................................... 540mm
4. OPERATION
4.1. Choose the correct nosepiece for the size of rivet. Screw the nosepiece (fig.1A) into the head of the riveter, tighten with wrench.
4.2. With the riveter handles open (fig.1D), fully insert the rivet shaft into the nosepiece.
4.3. Place rivet in hole in the workpiece (fig.2) and squeeze the riveter handles closed to deform the rivet (fig.3D).
4.4. If the rivet stem does not shear, open the handles and close together again.
4.5. When the stem shears, open the handles. The stem from the riveter will drop into the container (fig.3C). When the container is 2/3 full
remove it and empty the used stems.
fig.1
© Jack Sealey Limited

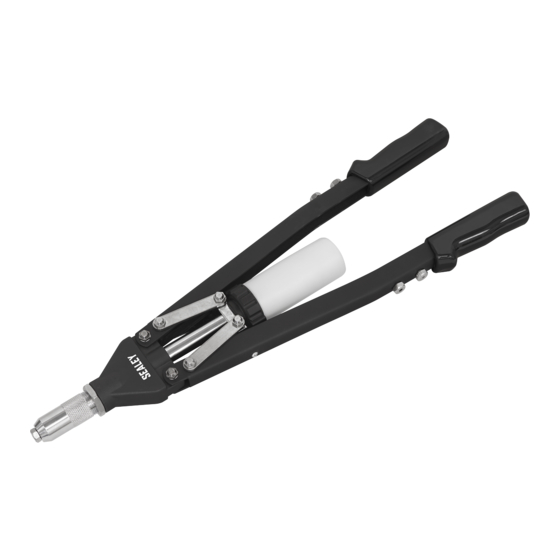

HEAVY-DUTY LONG-ARM RIVETER WITH
COLLECTION BOWL
AK3981.V2
MODEL NO:
fig.2
Original Language Version
Rivet Types:
Aluminium - Yes, Steel - Yes,
Stainless Steel - Yes, Structural - Yes
fig.3
AK3981.V2 Issue:2(4) 21/02/23
