Sealey AK3991 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this
‰
equipment.
Familiarise yourself with the application and the limitations of the riveter, as well as the potential hazards.
9
Maintain the riveter in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the riveter clean for best and safest performance.
9
Check moving parts alignment on a regular basis.
9
DO NOT hold the workpiece by hand. Secure unstable workpiece with a clamp, vice or other adequate holding device.
8
Ensure the workpiece is correctly secured before using the riveter.
9
DO NOT use the riveter for any purpose other than that it was designed for.
8
DO NOT operate the riveter if any parts are damaged or missing, as this may cause failure and/or personal injury.
8
When not in use store in a safe, dry, childproof location.
9

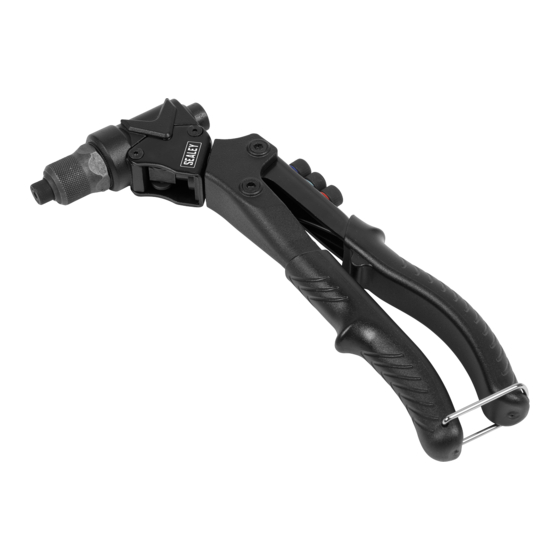

2. INTRODUCTION
Pressed steel body with cast swivel head and Chrome Molybdenum steel jaws. Curve design provides integral strength and rubber grip handle
for added comfort. Supplied with four rivet nozzles to accept 2.4mm(3/32"), 3.2mm(1/8"), 4mm(5/32") and 4.8mm(3/16") rivets. Suitable for
aluminium (2.4mm, 3.2mm, 4.0mm, 4.8mm) steel and stainless steel rivets (2.4mm, 3.2mm, 4.0mm). Includes a selection of approximately 80
rivets.
3. SPECIFICATION
Model no.: ................................................................ AK3991
Includes: Rivet Nozzles (x4), Assorted Rivets (x80 Approximately)
Rivet Types: Aluminium - Yes, Steel - Yes, Stainless Steel - Yes
Length: ....................................................................... 275mm
4. OPERATION
4.1. RIVETING (fig.1 fig.2)
4.1.1. Screw collet (fig.2.1) firmly into Riveter body (fig.1).
4.1.2. Screw sleeve (fig.2.2) firmly into Riveter body (fig.1).
4.1.3. Select the appropriate nosepiece to suit the size of
rivet being used and screw into sleeve (fig2.2).
© Jack Sealey Limited
SWIVEL HEAD RIVETING KIT
AK3991
MODEL NO:
Original Language Version
fig.1
fig.2
AK3991 Issue 2(3)
2
1
22/02/22
