Sealey AK396.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAfETy
WARNING! ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this
‰
equipment.
Familiarise yourself with the application and limitations of the riveter, as well as the potential hazards.
9
Maintain the riveter in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the riveter clean for best and safest performance.
9
WARNING! Always wear approved eye or face protection when operating the riveter.
‰
Keep children and unauthorised persons away from the working area.
9
Check moving parts alignment on a regular basis.
9
DO NOT hold the workpiece by hand. Secure unstable workpiece with a clamp, vice or other adequate holding device.
8
ensure the workpiece is correctly secured before operating the riveter.
9
DO NOT use the riveter for any purpose other than that for which it is designed.
8
DO NOT operate the riveter if any parts are damaged or missing, as this may cause failure and/or personal injury.
8
When not in use return to the case and store in a safe, dry, childproof area.
9
2. INTRODUcTION
Suitable for blind rivets, rivet nuts and rivet studs in aluminium, steel and stainless steel. Swivel head with 360° movement gives greatly
improved accessibility. Four nozzles for standard rivets, four mandrels for rivet nuts and three mandrels for rivet studs. Supplied with spanners
and a selection of steel rivet nuts.
3. SpEcIfIcATION
The AK396 kit is suitable for fitting the following size rivet, rivet nuts and rivet studs.
Rivets
Rivet nuts
Rivet Studs

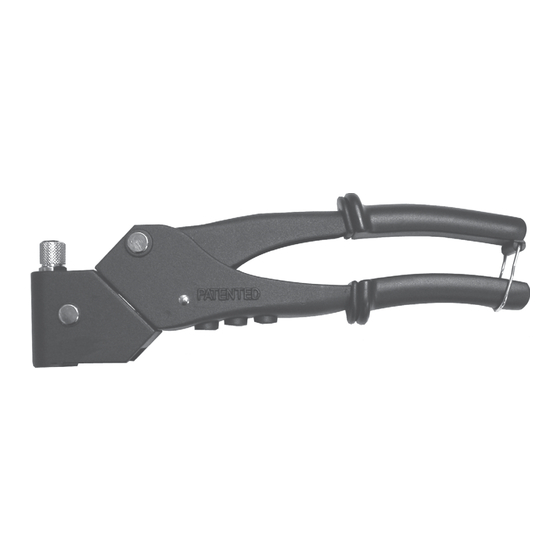

1. Riveting tool
2. Sleeve for mandrels
3. Sleeve for nosepieces
not shown - four starter packs of 10 steel rivet nuts - M3x0.5, M4x0.7, M5x0.8, M6x1.0.
© Jack Sealey limited
THREADED NUT RIVET KIT
Model no:
2.4mm (3/32") 3.2mm (1/8")
M3 x 0.5 M4 x 0.7
# M4 x 0.7
4. Jaw Case
5. nosepiece (x4)
6. Mandrel for studs (x3)
Original Language Version
AK396.V3
4.0mm (5/32")
M5 x 0.8
M5 x 0.8
7. Mandrel for nuts (x4)
8. Mandrel holder(x4)
9. Spanners (x3)
4.8mm (3/16")
M6 x 1.0
M6 x 1.0
AK396.V3 Issue 1 23/10/18
