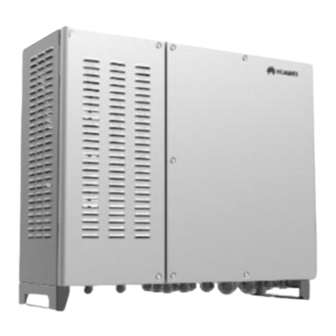

- Page 1 SmartACU2000B Smart Array Controller Quick Guide (with PID Modules, 800 V AC) Issue: 07 Part Number: 31509273 Date: 2023-09-11 HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 Log in to the technical support website (https://support.huawei.com/enterprise) to view the user manual and safety precautions. • The information in this document is subject to change without notice. Every effort has been made...
- Page 3 Cabinet Dimensions Mounting Bracket Dimensions Port Description (2) Waterproof connectors for the RS485 (1) PID DO signal cable waterproof connector communications cable and network cable (PID01_DO, PID02_DO, 3/4 in.) (RS485/ETH, 3/4 in.) (3) Waterproof connectors for the RS485 (4) DO/AO signal cable waterproof connector communications cable, network cable, and DC input (DO/AO, 5/4 in.) and output power cables (RS485/ETH/DC, 3/4 in.)
- Page 4 For simplicity purposes, the following figure shows only the components that you need to operate and reserved installation positions. Component 1 of the SmartACU2000B-D-PID/PLC is the power adapter. This model does not ⚫ include components 3, 6, 8, 16, 18, 20, and 22.
- Page 5 Configurations in Typical Scenarios Fiber Ring Network Components in dashed-line boxes are optional. To highlight the involved area, the figure does not show all factory-installed components and cables.
- Page 6 UT-H605 or ES1000 (optional) Low- Smart speed Can be Fitting FTLF1323P1BTR-HW optical array purchased bag for controller from Huawei module optical ring PLCLC5S-ST3P302-HW, LC-LC-S2- Optical switching L2, 3ECA1031LCLC002-01-F, or LP- jumper LP-2S-P-SM-002 Miniature circuit Recommended rated current: 32 A; breaker (MCB) number of poles: 2 ⚫...
- Page 7 The following table describes the cables to be prepared by yourself in the fiber ring networking scenario. Cross-sectional Area No. Cable Recommended Model or Specifications Range of the Cable (Recommended) ⚫ Four-core (L1, L2, L3, and functional earthing) outdoor copper armored cable with three OT-M6 terminals (L1, L2, and L3) and one OT-M4 terminal (functional earthing) When the rated AC voltage on the low-voltage...
- Page 8 4G LTE Network Components in dashed-line boxes are optional. To highlight the involved area, the figure does not show all factory-installed components and cables.
- Page 9 Smart array Fitting controller bags for module the POE Can be Outside the module purchased smart array from Huawei controller customer- and box- premises type equipment transformer (CPE) Recommended rated current: 32 A; number of poles: 2 When the rated AC voltage on ⚫...
- Page 10 10–6 AWG (6 AWG) ⚫ Network cable A 20 m (65.62 ft) long network cable delivered with from the POE Huawei CPE (If the length is insufficient, prepare a module to the cable with the same specifications as a peripheral network cable.) ⚫...
- Page 11 Installing the Cabinet Preparations Installation Space Bolts • When the cabinet is installed on a wall, you need to prepare M12 x 60 stainless steel exploded expansion bolts. • If the cabinet is installed on a support or a pole, use the M12 x 40 bolt assemblies delivered with the cabinet.
- Page 12 2. Install expansion bolts. 3. Secure the mounting bracket. Support-mounted Installation 1. Mark hole 2. Drill holes. (You are advised to 3. Secure the positions. apply anti-rust paint on the mounting bracket. hole positions for protection.) Pole-mounted Installation If you need to pole-mount the smart array controller, prepare a pole mounting bracket based ⚫...
- Page 13 Securing the Cabinet 1. Install the cabinet on the mounting bracket. 2. Remove the security torx wrench bound to the cabinet base and use the wrench to tighten security torx screws. Opening the Main Cabinet Door Before opening the main cabinet door, turn off all upstream switches for the smart array ⚫...
- Page 14 Installing the POE Module 1. Loosen screws and remove the mounting board. Do not remove the screws. 2. Remove screws from the POE module installation position. 3. Secure the POE module. (The indicators should be in the lower left corner.) 4.
- Page 15 Connecting Cables Connect cables in accordance with the installation laws and regulations of the country or region where the project is located. Selecting a Connection Method You can connect a peripheral cable to the smart array controller in common mode or through a tube based on site requirements.
- Page 16 1. Remove the locking cap and plug from the waterproof connector, and then remove the waterproof connector. 2. Secure the tube fitting using the nut delivered with the tube. 3. Route the cable through the tube conduit and then fitting. 4.
- Page 17 Connecting the PE Cable 1. Crimp an OT terminal. 2. Secure the PE cable. Connect the PE cable to the nearest ground point or the ground bar in the box-type transformer. ⚫ ⚫ To enhance the corrosion resistance of a ground terminal, you are advised to apply silica gel or paint on it after connecting the ground cable.
- Page 18 3. Remove the ATB cover. 4. Remove the optical cable fastener. Connect two optical cables in a ring optical network, and connect one optical cable in a star ⚫ optical network. ⚫ As optical cables are hard, prepare optical cables before routing them into the cabinet. Only professionals are allowed to connect optical cables.
- Page 19 Connecting the 4G LTE Cable 2. Connect the CPE network cable to the POE 1. Connect the factory-installed network cable to the DATA port on the POE module, and port on the POE module. the factory-installed power cable to the POE module.
-
Page 20: Ground Bar In The Box-Type Transformer
Connect the L1-1, L2-1, and L3-1 cables from the QF02 switch respectively to ports A, B, and C ⚫ on the box-type transformer busbar 1 over a three-phase power switch. ⚫ Connect the L1-2, L2-2, and L3-2 cables from the QF04 switch respectively to ports A, B, and C on the box-type transformer busbar 2 over a three-phase power switch. -
Page 21: Table Of Contents
1. Prepare a cable. 2. Crimp an OT terminal. 3. Connect the L1, L2, and L3 cables to the three-phase input switch. Connect the functional earthing cable to the functional earthing bar. ⚫ Connect the L1-1, L2-1, and L3-1 cables from the FU01 switch respectively to ports A, B, and C on the box-type transformer busbar 1 over a three-phase power switch. - Page 22 Connecting the Peripheral RS485 Communications Cable Connect peripheral RS485 communications cables to JX01. All RS485 communications cables are connected in the same way. This section describes how to connect two RS485 communications cables. Port on the JX01 Terminal Block Definition RS485-5 (+) RS485A, RS485 differential signal+ RS485-5 (–)
- Page 23 6.10 Connecting the LAN Switch Cable 1. Connect the FE1 port on the LAN switch to the ETH1 port on the SmartLogger using the network cable delivered with the LAN switch. 2. Connect the factory-installed power cable to the LAN switch using the wiring terminal delivered with the LAN switch.
- Page 24 6.12 Connecting the 24 V DC Output Power Cable You can connect one or two 24 V DC output power cables to the smart array controller that supports 24 V DC input and output. DC output power cables are connected in the same manner. This section describes how to connect one DC output power cable.
-
Page 25: Box-Type Transformer
6.14 Connecting the Single-Phase AC Power Cable 1. Prepare a cable. 2. Connect the cable to the single-phase input switch. Connect the L and N (L) cables to the L and N (L) terminals of the station- service power source for the box-type transformer through an MCB. -
Page 26: Power Switch
Powering On the System Put on insulation gloves before powering on the system. Ensure that the power voltage of the smart array controller is within the operating voltage range, and the three-phase input voltage is within the PLC/PID module operating voltage range. 1. - Page 27 Commissioning the SmartPID2000 The SmartPID2000 can be commissioned over the embedded WebUI of the SmartLogger, by connecting the SUN2000 app to the SmartLogger, or by connecting the SUN2000 app to the PID module. This chapter describes how to commission the SmartPID2000 by connecting the SUN2000 app to the SmartLogger.
- Page 28 Running parameter descriptions Parameter Function Value Description ⚫ PV– positive offset refers to raising the voltage between PV– and ground to above 0 V through voltage compensation. PV– ⚫ Select PV– positive offset for P-type PV modules or positive the N-type PV modules that comprise the solar cells offset whose positive and negative polarities are on different sides.
-
Page 29: Power Switch
Closing the Cabinet Door 1. Install the support bar. 2. Close the main cabinet door and tighten the screws. If the screws used for securing the cabinet door are lost, use the security torx screws in the ⚫ fitting bag. If the floating nuts used for securing the cabinet door are lost, use the idle floating nuts on the ⚫... - Page 30 11.2 How Should I Determine an Unavailable Single-/Three-Phase SPD? If an SPD is damaged or its indication window is red, the SPD is deemed unavailable. 11.3 How Should I Obtain Spare Floating Nuts?
- Page 31 Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang Shenzhen 518129 People's Republic of China www.huawei.com...
