- Page 1 INSTALLATION GUIDE...
-
Page 2: Setting Information
Wi-Fi Control minimum requirements for operation: • Compatible WPS router, capable of WPA2-AES encryption. The wireless network coverage must include the heat pump installation location; • A PC or Tablet/Smartphone that is iOS/Android compatible; • A compatible Mitsubishi Electric Heat Pump with a MAC-558IF-E Adaptor. - Page 3 Mitsubishi Electric Wi-Fi Heat Pump Control Important Note: Before carrying out installation of the MAC-558IF-E adaptor please read the safety instructions listed on page 8 of this installation guide. Register Your Heat Pump(s) Thank you for choosing a Mitsubishi Electric Heat Pump with Wi-Fi Control.
- Page 4 Wi-Fi Control: Installation Instructions Information for installers The following steps explain how to connect the MAC-558IF-E Adaptor to a Mitsubishi Electric Heat Pump. EQUIPMENT REQUIRED FOR INSTALL: MAC-558IF-E WPS Enabled Wi-Fi Tools to remove Adaptor Router Installation cover of indoor...
- Page 5 Tuck cabling away and secure. Check that the MAC-558IF-E The adaptor is now able to be Adaptor is flashing. The install has connected to the user’s router. Steps for now been completed.
- Page 6 Wi-Fi Control: Installation Instructions Information for users The following steps explain how to connect the MAC-558IF-E Adaptor to a router. KEY (LED LIGHTS): FLASHING Check Wi-Fi and WPS are enabled Activate WPS mode on your router. on your router. The connection...
- Page 7 Turn the adaptor over and check When LED 1 remains solid for 5 LED 1 (top light) is flashing. seconds the adaptor is connecting to your router. Next, the bottom light (LED 3) will When LED 1 and LED 3 flash start flashing as it connects to the alternately the unit is successfully internet.
-
Page 8: Safety Instructions
New Zealand requirements for EMC smoke generation, or fire. and electrical safety. • Mitsubishi Electric components or other • Do not connect the Wi-Fi Adaptor to earth designated components must be used for inside the heat pump. - Page 9 Third party Wi-Fi Adaptors cannot connect to Mitsubishi Electric’s Wi-Fi service. Mitsubishi Electric is not responsible for any (i) under performance of a system or any product; (ii) system or product fault; or (iii) loss or damage to any system or product; which is caused by or arises from connection to and/or use of any third party Wi-Fi Adaptor or any third party Wi-Fi service with Mitsubishi Electric equipment.
-
Page 10: Product Introduction

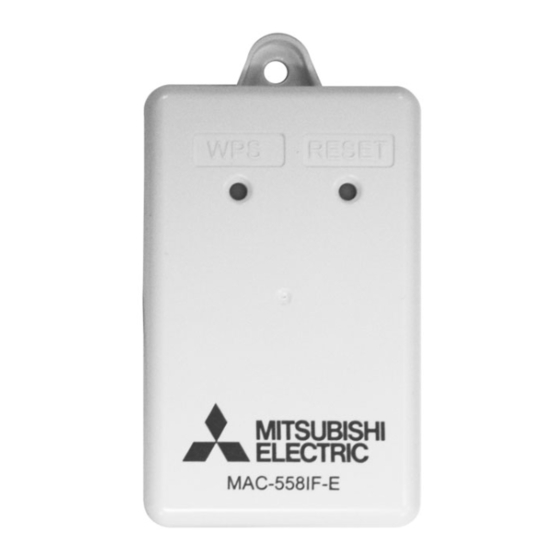

Description WPS switch Activates WPS RESET switch Resets the system and ALL settings LED1 (Green) Shows the wireless communication state LED2 (Orange) Shows the MAC-558IF-E state LED3 (Green) Shows the local communication state Parts Adaptor unit Optional screw Optional screw... -
Page 11: Troubleshooting
• Your router is compatible with the adaptor. For a list of compatible routers or if you are still experiencing issues connecting your router to the Wi-Fi Adaptor, please contact your local Mitsubishi Electric Office, as listed on the back cover of this guide. -
Page 12: Contact Details
Contact Details Mitsubishi Electric New Zealand Mitsubishi Electric Australia www.mitsubishi-electric.co.nz/wifi www.mitsubishielectric.com.au/wifi SYDNEY WELLINGTON HEAD OFFICE HEAD OFFICE 1 Parliament Street 348 Victoria Road PO Box 30772 Rydalmere Lower Hutt 5040 NSW 2116 Phone 0800 639 434 Phone (02) 9684 7777...
