June 2021© Toro Groundsmaster 5900 ROPS Installation Manual

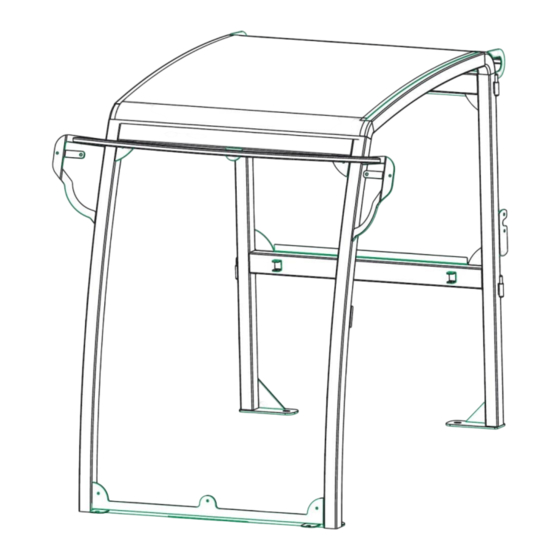

Toro Groundsmaster 5900 ROPS
Toro Groundsmaster 5900 ROPS
This ROPS is designed and built to fit the Toro Groundsmaster 5900.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
www.tektite.ca
One year standard product warranty provided by Tektite.
Advertisement
Related Manuals for Toro Groundsmaster 5900 ROPS
Summary of Contents for Toro Groundsmaster 5900 ROPS
- Page 1 June 2021© Toro Groundsmaster 5900 ROPS Installation Manual Toro Groundsmaster 5900 ROPS Toro Groundsmaster 5900 ROPS This ROPS is designed and built to fit the Toro Groundsmaster 5900. Designed and Built by: Tektite Manufacturing Inc: 427 Buffalo Street P.O. Box 639...
- Page 2 DO NOT PROCEED FURTHER UNTIL YOU HAVE READ THE INFORMATION BELOW 1) Always wear personal protective equipment 2) A minimum of two people is necessary to safely install the cab 3) This ROPS cab is heavy. A lift assist device such as an overhead hoist or high lift forklift is required.
- Page 3 June 2021© Toro Groundsmaster 5900 ROPS Installation Manual Tektite Manufacturing Incorporated thanks you for purchasing a Toro Groundsmaster 5900 ROPS! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
-
Page 4: Parts List
June 2021© Toro Groundsmaster 5900 ROPS Installation Manual Parts List: Zip ties, Standard Electric Options Parts List: Loop Connector Yellow, 1/4" Installation Instructions: 1. Disconnect the head-light harnesses, then un-bolt the front head-lights and head-light brackets from the operator platform. Save fasteners in order to re-use later. - Page 5 7. Lift the ROPS over the machine and slowly lower down. Continue lowering the ROPS onto the four fasteners removed earlier. 8. Bolt to platform using existing fasteners to Toro torque specifications. 9. Remove chain and lift strap. 10. Bolt the head-lights to the head-light mounting plate at front of ROPS with the factory hardware.
- Page 6 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual Toro Groundsmaster 5900 ROPS Toro Groundsmaster 5900 ROPS This ROPS is designed and built to fit the Toro Groundsmaster 5900. Designed and Built by: Tektite Manufacturing Inc: 427 Buffalo Street P.O. Box 639...
- Page 7 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual Tektite Manufacturing Incorporated thanks you for purchasing a Toro Groundsmaster 5900 ROPS! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
- Page 8 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual Tektite Limited Warranty Tektite Manufacturing Inc. (“Tektite”) warrants to the original purchaser (the “Claimant”), that Tektite products will be free from defective materials or workmanship, under normal use and service, for a period of (1) full year from the original invoice date.
-
Page 9: Safety Precautions
June 2021© Toro Groundsmaster 5900 ROPS Operation Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS. - Page 10 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual General Safety 1. Never let an unqualified or untrained driver operate the reel mower. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use.
- Page 11 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual Safe Operation on Rough Terrain 1. Drive the mower slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns.
- Page 12 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual 9. Use your turn signals, checking for traffic well in advance of turning. If the mower is not equipped with turn signals and law requires them, install them prior to operating on or near public roads.
- Page 13 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual Operating Instructions Important The following section locates, identifies and briefly describes the functions of all ROPS controls. All operators should familiarize themselves with control location and function prior to operating the mower. Failure to do so may result in unsafe operation of the mower and possible injury or death to operators and bystanders.
- Page 14 June 2021© Toro Groundsmaster 5900 ROPS Operation Manual After your ROPS has been installed: Before starting a reel mower equipped with a Tektite ROPS: 1. Clear the operator platform of all tools. Tools left in or around the ROPS and mower can cause operator interference which could lead to bodily injury and/or damage the machine.
- Page 15 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0003 RIGHT-LATCH Suicide Door Right Latch A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0022 FLANGE_BOLT_M6X25 Flange Bolt, M6x25, YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD A00-0096 TEKT-0055 Door Strap, 14" A00-0118 HEX-BOLT_1-4X1 Hex Bolt, 1/4"...
- Page 16 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0002 LEFT-LATCH Suicide Door Left Latch A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0022 FLANGE_BOLT_M6X25 Flange Bolt, M6x25, YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD A00-0096 TEKT-0055 Door Strap, 14" A00-0118 HEX-BOLT_1-4X1 Hex Bolt, 1/4"...
