thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
Important: READ ThESE INSTRUCTIONS CAREFUllY. NOTE ThE SAFE OpERATIONAl REQUIREMENTS, WARNINGS AND CAUTIONS. USE
ThIS GEARbOx SUppORT CORRECTlY AND WITh CARE FOR ThE pURpOSE FOR WhICh IT IS INTENDED. FAIlURE TO DO SO MAY CAUSE
DAMAGE AND/OR pERSONAl INjURY AND WIll INvAlIDATE ThE WARRANTY. RETAIN ThESE INSTRUCTIONS FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure all preliminary checks are carefully

carried out before using gearbox support and
transmission jack.
WARNING! Follow all of the safety instructions issued with

the transmission jack.
Before use ensure the transmission weight and size do not

exceed the capacity of the gearbox support or the transmission
jack.
the gearbox support is heavy, care should be taken when

placing onto the transmission jack.
WARNING! Ensure load is placed level and centrally on

gearbox support and is fixed in place before attempting
to lift, lower, or transport load. Always use load restraint
chains and attachments to stabilise and secure the load to
the gearbox support.
Ensure that the sliding bracket and chain mount bracket nuts and

bolts are fully tightened when the gearbox support is loaded.
DO NOT use the gearbox support without restraint chains.

DO NOT replace the chains with an inferior form of restraint.

DO NOT allow untrained persons to use the gearbox support.

care should be taken when using the gearbox support and

vertical transmission jack in conjunction with a vehicle lift to
ensure that the vehicle is not lowered whilst the jack is in
position.
DO NOT move the transmission jack, with or without a load, with

the gearbox support in the raised position.
DO NOT use the gearbox support for any purpose other than for

vehicle transmissions.
Before storing ensure gearbox support is clean and free of

grease and oil.
store in a safe, dry childproof location.

InstructIon MAnuAL for:
adjustable gearbox support 500kg CapaCItY
suItable For Models 300etj aNd 500etj.
MoDEL no:
2. INTRODUCTION & SpECIFICATION

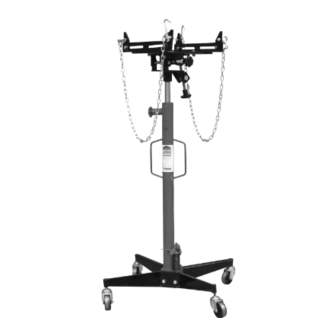

fully adjustable saddle with forward, backward and side to
side tilt. suitable for use with Model nos: 300EtJ and
500EtJ.
Model no: .............................................................................. ADt7
capacity: ...............................................................................500kg
compatibility: ........................................................300EtJ, 500EtJ
3. CONTENTS & ASSEMblY
3.1 Contents list (refer to fig.1)
Item Description
1 Main support
2 support Plate
3 Adjuster screw
4 Pivot Pin
5 sliding Bracket
6 chain Mount Bracket
7 chain Anchor
8 chain Hook
WARNING! failure to assemble the gearbox support

correctly may result in serious damage and/or personal
injury. unpack the product and check contents against the
contents list. should there be any damaged or missing parts
contact your supplier immediately.
3.2 Assembly (refer to fig.1)
3.2.1 Position the support plate (2) on a flat surface with the bracket
fig.1
facing upwards. Place the main support (1) over the support
plate (2) so that the bracket fits into the slot on the main
support (1).
3.2.2 Align the adjuster screw (3) so that it passes through the
bracket on the main support (1) and screws into the bracket
on the support plate (2). continue to screw the adjuster screw
(3) all the way through the support plate bracket until it
completely protrudes from the other side. fit a flat washer (10)
over the end of the adjuster screw (3) and continue to turn the
adjuster screw (3) until the flat washer (10) makes contact
with the inside face of the opposite bracket and the end of the
adjuster screw (3) is protruding through. Place a flat washer
(10) over the protruding end of the adjuster screw (3) at the
outside face of the bracket and fit the split pin (14) through the
hole in the end of the adjuster screw (3).
3.2.3 Align the holes in the pivot brackets on the main support (1) so
that the pivot pin (4) can be inserted. secure the pivot pin (4)
with the circlips (13).
3.2.4 Attach the chain anchors (7) and the chain hooks (8) to the
chain mounting brackets (6) using M10 nuts (12) and spring
washers (11). It is not necessary to fully tighten the nuts until
loading the gearbox support.
Original Language Version
ADT7
Qty Item
01 9 M10 x 30mm Bolt
01 10
02 11
01 12
02 13
04 14
02 15
02 16
Description Qty
06
flat Washer 06
spring Washer 10
M10 nut 10
circlip 02
split Pin 01
chain 02
retaining Bolt 01
ADt7 Issue: 1 - 16/08/11
