Sealey BTR4.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to instruction
manual
1. SAFETY

DO NOT put more than one bottle on the trolley.

Always seat the bottle in the upright position.

Always secure the bottle tightly to the trolley with the chains
provided.

Only use the trolley on firm, level, unobstructed surfaces which
are capable of supporting the trolley and its load.

DO NOT use the trolley on sloping surfaces.

DO NOT allow others to ride on the trolley.

DO NOT attempt to move the trolley by pulling on the earth or
torch cable.

DO NOT attach the welder's earth clamp to the metal frame of
the trolley as this may result in accidental arcing from the torch.

Replace or repair damaged parts. Use only recommended
parts. Unauthorised parts may be dangerous and will invalidate the
warranty.

Store gas cylinders in a vertical position only and ensure the
storage area is correctly secured.

DO NOT store gas cylinders in areas where temperature
exceeds 50°C. DO NOT use direct heat on a cylinder. Always
keep gas cylinders cool.

DO NOT attempt to repair or modify any part of a gas cylinder
or valve, and DO NOT puncture or damage a cylinder.

DO NOT obscure or remove any official labels from a cylinder.
Always check the gas identity before use.

Avoid getting gas cylinders oily or greasy.

DO NOT try to lift or handle cylinder by its cap, guard or valve.
Always keep caps and guards in place and close valve when
not in use.
Gas cylinders are heavy, use mechanical lifting equipment.

Warning! Failure to comply with these instructions may result in loss
of load, damage to trolley or other property and/or personal injury.
2. INTRODUCTION

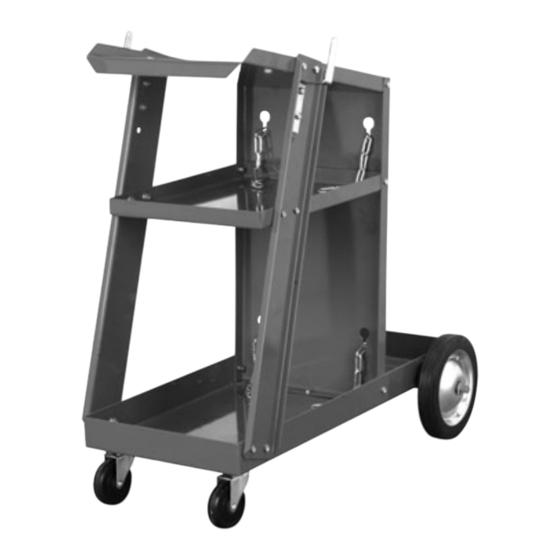

Robust trolley carries portable MIG welder and gas bottle, making
relocation of welding equipment quick and easy. Fitted with two fixed
wheels and two castors for excellent manoeuvrability and supplied
with bottle retaining chains and cable stowage hooks.
Upper tray for MIG welder and two lower trays for associated items.
Suitable for portable MIG welders up to 300mm wide and 480mm
long.
Suitable for Sealey Welders: PMG110 and S0771. Also PM140XT,
PM150XT, PMG135XT, PMG155XT with wheels and axle removed.
© Jack Sealey Limited
UNIVERSAL TROLLEY FOR PORTABLE MIG
WELDERS
BTR4.V2
MODEL NO:
3. ASSEMBLY
3.1 Using the diagram below as a guide; loosely assemble the
trolley.
3.2 Slide the axle supports (13) through the slots in the base (5)
so the axle may be inserted into the supports.
3.3 When the wheels (12 and 6), back panel (15), shelves (1, 3
and 5), upright supports (4 and 8) and the hooks (2) are in
place, tighten all fixings.
NOTE! When attaching the back panel (15) ensure the slots for the
chains are facing downwards.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Original Language Version
Description Qty.
Top Tray 1
Hook 2
Middle Tray 1
Left support 1
Bottom Tray 1
Front Castor Wheel 2
Hex-nut 34
Right Support 1
Hex-bolt 34
Split Pin 2
Flat Washer 4
Rear Wheel 2
Axle Support 2
Axle 1
Back Panel 1
Chain 2
BTR4.V2 Issue:3(HF)- 22/03/18
