Canon imagePRESS Server M10 Service Manual page 27

• CPU and CPU cooling assembly
• Service board
• Chassis fan
• Power supply
• Hard disk drive (HDD)
For information about replacing other components, see the documentation that accompanies your printer.
IMPORTANT:
Be sure to use an ESD grounding wrist strap and follow standard ESD (electrostatic discharge) precautions while performing
these procedures. For details, see
NOTE:
There may be tie-wraps used to secure the cables to the chassis. If necessary, cut these tie-wraps before removing the
components.
■ Printer interface board
The printer interface board provides the print interface between the imagePRESS Server and the printer. The printer interface
board processes the image data and sends it to the printer through the printer interface cable. It is installed in PCIE x16 slot on
the motherboard.
IMPORTANT:
Make sure that the switch on the printer interface board is positioned to 1-3m side of the switch.
2
No.
1 Switch (positioned to 1-3m)
2 Printer interface cable connector
3 PCIE x16 connector
4 J351 connector for 10-pin power button cable to motherboard J11
● To remove the printer interface board
1. Access and open the imagePRESS Server, as described on
2. Remove the 10-pin power button cable from J351 connector that connects between the printer interface board and
the motherboard.
"Tools you will need" on page
1
3

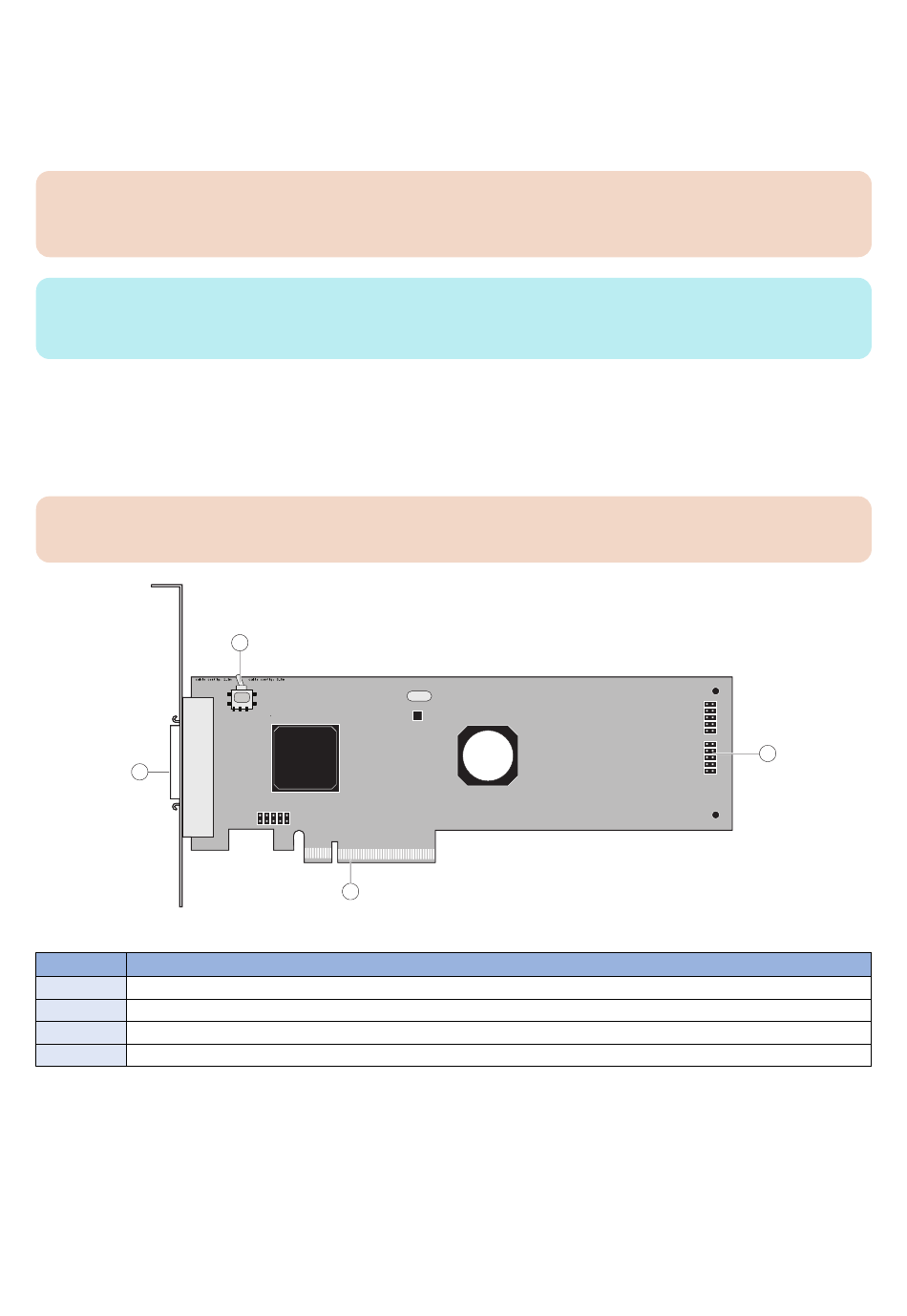

Figure 9: Printer interface board
3.
Name
"Accessing the imagePRESS Server" on page
21
3. REPLACING PARTS
4
18.
