Page 1

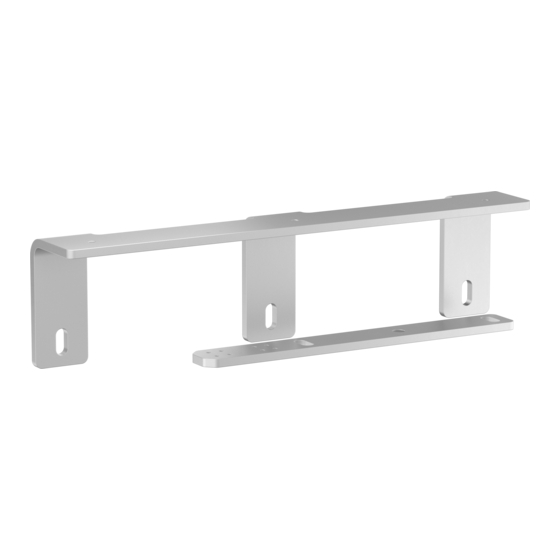

JSM D23C Mounting kit for Magne on sliding door JSM D23C is a mounting kit for Magne 3 and Magne 4 to be used on sliding doors. Designed for use on both right and left opened doors. Installation shall be done in accordance with a risk assessment for the individual application.
Page 2
I NSTA LL AT I O N G UI D E Dimensions All dimensions are in millimeter (mm). Magne fitting dimensions Eva and Anchor plate fitting dimensions R EV. D...
Page 3
I NSTA LL AT I O N G UI D E Orientation and mounting of Eva sensor Depending on which Magne model used, the Eva sensor must be oriented and mounted in different ways (see figure for details). Magne 3 has no integrated Adam sensor, i.e. no Eva is used. Installation tolerances (mm) R EV.
I NSTA LL AT I O N G UI D E Installation and mounting Read and understand ‘Magne Product manual’ and ‘Eden Product manual’ before starting the installation. Note! In the following step by step instructions, a Magne 4 is mounted on a right opened sliding door.
Page 5
6. To ensure that the function is working correctly, open/close the door several times. Adjust fittings if needed. See complete product range and accessories on http://www.abb.com/jokabsafety R EV. D...
