Toro Groundsmaster 5900 Series Installation Instructions Manual

Toro Groundsmaster 5900 Series Installation Instructions Manual

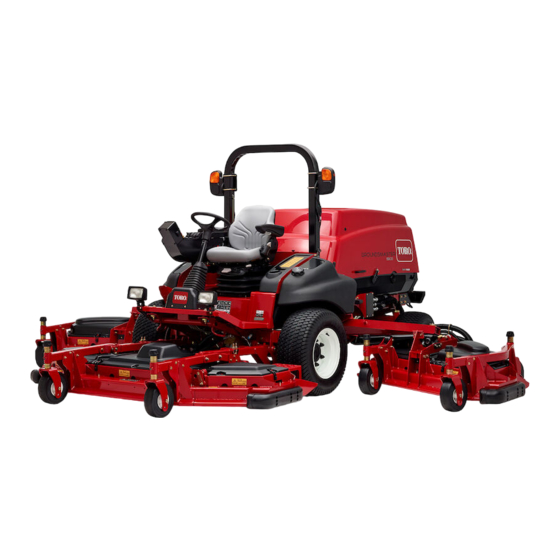

Rotary mower with cab
Hide thumbs Also See for Groundsmaster 5900 Series:

Advertisement

Quick Links

Download this manual

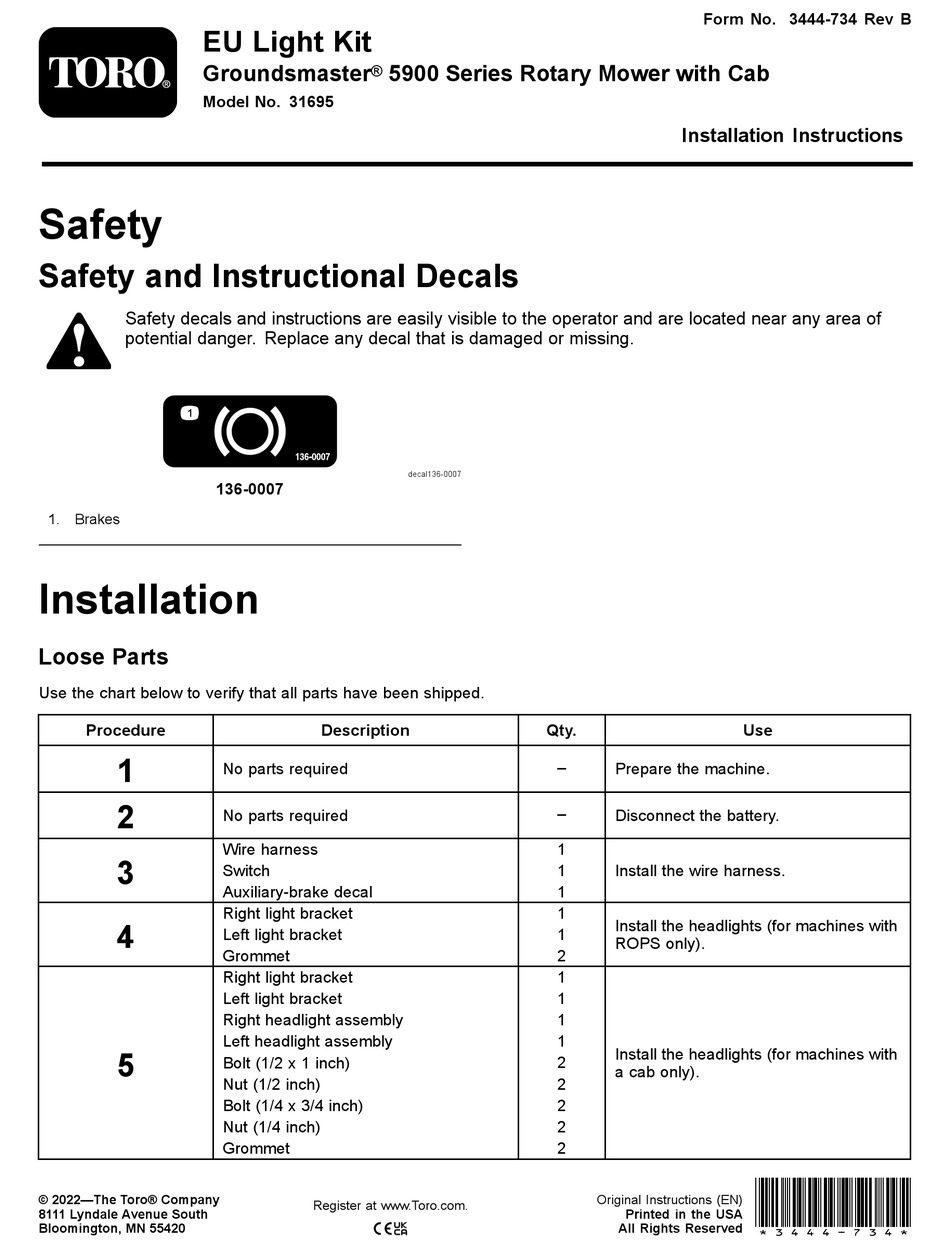

EU Light Kit
Groundsmaster
Model No. 31695
Safety
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of
potential danger. Replace any decal that is damaged or missing.
136-0007
1. Brakes
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
5
© 2022—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
5900 Series Rotary Mower with Cab
Description
No parts required
No parts required
Wire harness
Switch
Auxiliary-brake decal
Right light bracket
Left light bracket
Grommet
Right light bracket
Left light bracket
Right headlight assembly
Left headlight assembly
Bolt (1/2 x 1 inch)
Nut (1/2 inch)
Bolt (1/4 x 3/4 inch)
Nut (1/4 inch)
Grommet
Register at www.Toro.com.
decal136-0007
Qty.
–
–
1
1
1
1
1
2
1
1
1
1
2
2
2
2
2
Form No. 3444-734 Rev B
Installation Instructions
Use
Prepare the machine.
Disconnect the battery.
Install the wire harness.
Install the headlights (for machines with
ROPS only).
Install the headlights (for machines with
a cab only).
*3444-734*
Original Instructions (EN)
Printed in the USA
All Rights Reserved

Advertisement

loading

Related Manuals for Toro Groundsmaster 5900 Series

Summary of Contents for Toro Groundsmaster 5900 Series

  • Page 1 Nut (1/2 inch) Bolt (1/4 x 3/4 inch) Nut (1/4 inch) Grommet *3444-734* © 2022—The Toro® Company Original Instructions (EN) Register at www.Toro.com. 8111 Lyndale Avenue South Printed in the USA Bloomington, MN 55420 All Rights Reserved...
  • Page 2 Procedure Description Qty. Plate light License bracket Sign mount Screw Screw (#10 x 3/4 inch) Install the light plate and license bracket. Speed nut Carriage bolt (1/4 x 5/8 inch) Nut (1/4 inch) Decal (20) Pivot bracket Light mount Right tube mount Left tube mount Left light housing Right light housing...

  • Page 3: Preparing The Machine

    Preparing the Machine No Parts Required Procedure Park the machine on a level surface. Engage the parking brake. Shut off the engine and remove the key. g038719 Figure 1 Disconnecting the Battery No Parts Required Procedure Turn the battery-disconnect switch to the O position.
  • Page 4 Installing the Wire Harness Parts needed for this procedure: Wire harness Switch g186717 Figure 4 Auxiliary-brake decal 1. Switch 3. Knockout 2. Auxiliary-brake decal Procedure Remove the 6 bolts from the console and Adhere the auxiliary-brake decal above the remove the panel (Figure switch (Figure...
  • Page 5 Remove the headlights and retain lights and hardware. Remove the brackets from the headlights and discard the brackets (Figure Installing the Headlights Using the fasteners that you removed, install the left and right light brackets to the existing holes (for Machines with ROPS in the front of the operator’s platform (Figure only)
  • Page 6 Installing the Headlights (for Machines with a Cab Only) Parts needed for this procedure: Right light bracket Left light bracket Right headlight assembly Left headlight assembly Bolt (1/2 x 1 inch) Nut (1/2 inch) Bolt (1/4 x 3/4 inch) Nut (1/4 inch) Grommet Procedure Unplug the wire harness from each existing...
  • Page 7 g349447 Figure 7 1. Headlight 6. Left headlight mount 2. Grommet 7. Bolt (1/4 x 3/4 inch) 3. Wire harness 8. Remove and discard the existing bracket. 4. Bolt (1/2 x 1 inch) 9. Nut (1/2 inch) 5. Nut (1/4 inch) 10.
  • Page 8 Route the wire to the plate light and connect it to the light. Install the plate light to the license bracket using 2 screws (#10 x 3/4 inch) and the speed nuts Installing the Light Plate in the license bracket. and License Bracket Parts needed for this procedure: Plate light...
  • Page 9 Remove the tail lights from the machine. Remove the brackets from the rear bumper and discard the brackets and hardware (Figure 10). Remove the bottom 2 bolts (1/2 x 1-1/4 inch), Installing the Rear Lights on each side, that secure the bumper to the machine frame.
  • Page 10 g349462 Figure 10 1. Hex-socket button head screw 10. Left housing 2. Inner mount 11. Left tube mount 3. Existing light (yellow lens on top) 12. Carriage bolt (5/16 x 3/4 inch) 4. Existing phillips-head screw 13. Light mount 5. Nut (1/4 inch) 14.

  • Page 11: Operation

    Aiming the Headlights Loosen the mounting nuts to adjust the lights. Adjust the lights per local standards. g188853 Figure 11 Verify that the machine is in CE mode. If it is not in CE mode; contact your authorized Toro distributor.
  • Page 12 Using the Auxiliary-Brake Switch Press and hold the auxiliary-brake switch to decrease the engine speed (Figure 12); release the switch to stop the deceleration and remain at the current engine speed. Note: You may use the switch intermittently to gradually slow the machine. If you press the switch when the engine speed is below 1,200 rpm or if the engine decelerates to 1,200 rpm, the engine shuts off and the machine stops.
  • Page 13 Notes:...
  • Page 14 Notes:...
  • Page 15 The Toro Company (“Toro”) respects your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local Toro company or dealer. Toro uses this information to fulfil contractual obligations - such as to register your warranty, process your warranty claim or to contact you in the event of a product recall - and for legitimate business purposes - such as to gauge customer satisfaction, improve our products or provide you with product information which may be of interest.
  • Page 16 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact your Authorized Toro Service Center.
