Summary of Contents for Toro Flex-Force Power System 51834

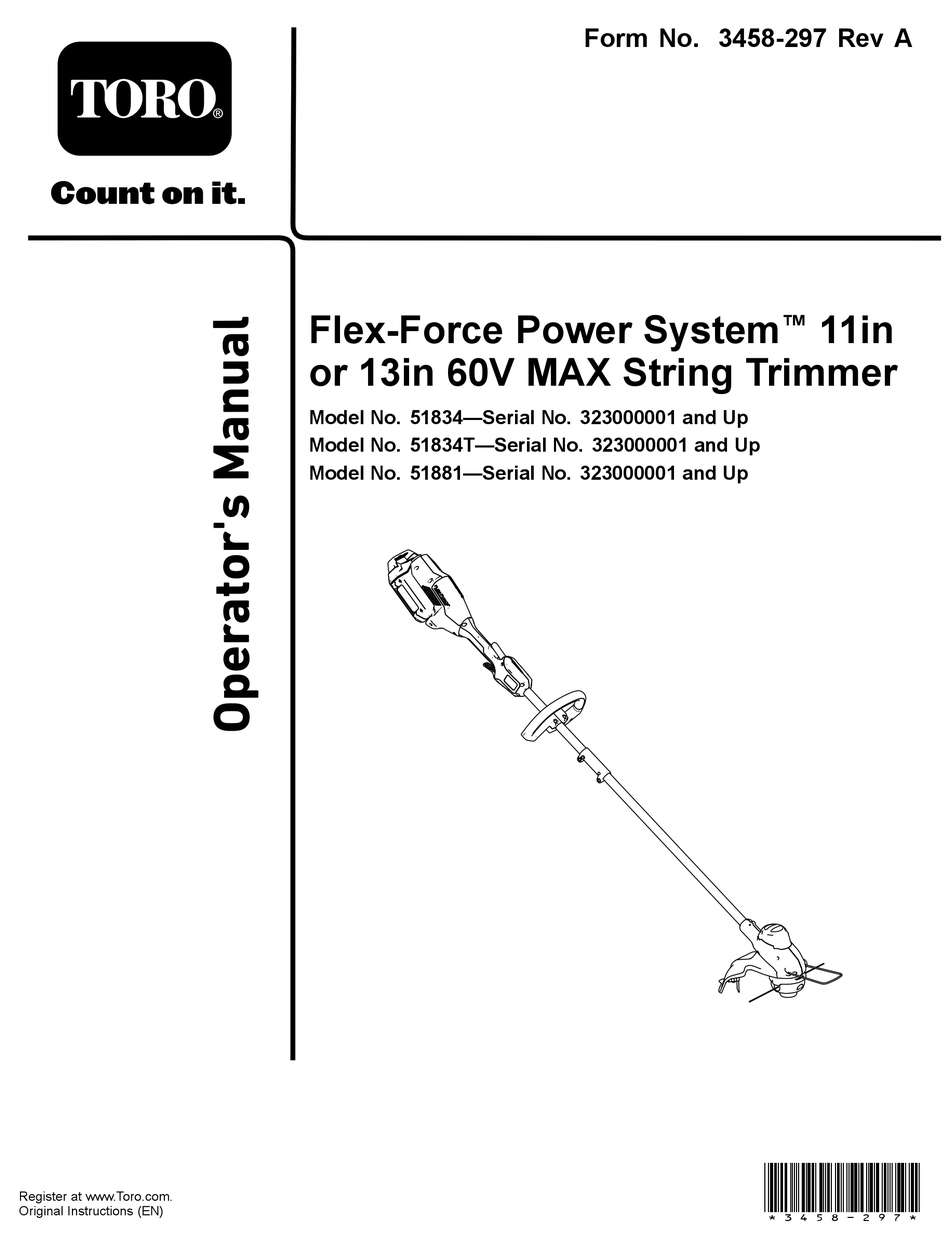

  • Page 1 Form No. 3458-297 Rev A Flex-Force Power System ™ 11in or 13in 60V MAX String Trimmer Model No. 51834—Serial No. 323000001 and Up Model No. 51834T—Serial No. 323000001 and Up Model No. 51881—Serial No. 323000001 and Up *3458-297* Register at www.Toro.com. Original Instructions (EN)
  • Page 2 This trimmer is intended to be used by residential Model No. homeowners to trim grass as needed outdoors. It is designed to use Toro Flex-Force lithium-ion battery Serial No. pack Models 88620 (provided with Model 51834), 88625, 88640, 88650, 88660, or 88675. These battery...
  • Page 3: Important Safety Instructions

    O position. Use only the battery pack specified by Toro. Using other accessories and attachments may Operate the appliance only in daylight or good increase the risk of injury and fire.
  • Page 4 Do not heat the battery pack above 68°C (154°F) or incinerate it. Replace the battery pack with a genuine Toro battery pack only; using another type of battery pack may cause a fire or explosion. Keep...
  • Page 5: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal144-3098 decal145-8267 144-3098 145-8267 decal137-9461 137-9461 1. Battery charge status decal145-8268 145-8268 decal144-3094...
  • Page 6 decal139-5210 139-5210 1. Warning—read the Operator’s Manual; stay away from moving parts; keep all guards in place; wear eye protection; do not operate in wet conditions. decal139-5346 139-5346 decal144-3096 144-3096...
  • Page 7 Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Allen wrench Unfold the handle. Auxiliary handle assembly Install the auxiliary handle. Guard Install the guard. Wire edge guard Install the edge guard. Important: The battery pack is not fully charged when you purchase it.
  • Page 8: Unfolding The Handle

    Unfolding the Handle Parts needed for this procedure: Allen wrench Procedure Unfold the handle (A of Figure Align the locking button on the lower shaft with the slotted hole on the upper shaft and slide the 2 shafts together (B and C of Figure Note: The locking button clicks into the slotted hole when the shafts are secured (D of...
  • Page 9: Installing The Auxiliary Handle

    Installing the Auxiliary Handle Parts needed for this procedure: Auxiliary handle assembly Procedure Separate the auxiliary handle from the handle plate by removing the 2 screws (A of Figure Line up the auxiliary handle with auxiliary handle plate on the trimmer handle (B of Figure Secure the auxiliary handle to the handle plate with the 2 previously removed screws (C of Figure...
  • Page 10: Installing The Guard

    Installing the Guard Parts needed for this procedure: Guard Procedure Remove the 2 socket head screws, 2 washers, and 2 spacers from the trimmer base (A of Figure Align the guard onto the trimmer base (B of Figure Secure the guard onto the base of the trimmer with the 2 socket head screws, 2 washers, and 2 spacers previously removed (C of Figure g333607...
  • Page 11: Product Overview

    Specifications Product Overview Model 51834/T Rated 60V DC maximum, 54 VDC nominal usage Voltage Charger 88602, 88605, or 88610 (included with 51834) Type Battery Type 88620 (included with 51834), 88625, 88640, 88650, 88660, or 88675 Appropriate Temperature Ranges Charge/store the battery pack 5°C (41°F) to 40°C (104°F)* Use the battery pack at -30°C (-22°F) to 49°C (120°F)
  • Page 12: Operation

    Operation Starting the Trimmer Make sure that the vents on the trimmer are clear of any dust and debris. g339793 Figure 11 1. Lockout trigger 2. Run trigger Shutting Off the Trimmer To shut off the trimmer, release both triggers. Whenever you are not using the trimmer or are transporting the trimmer to or from the work area, remove the battery pack.
  • Page 13: Charging The Battery Pack

    Charging the Battery Pack Refer to the following table to interpret the LED indicator light on the battery charger. Important: The battery pack is not fully charged Indicator Indicates when you purchase it. Before using the tool for light the first time, place the battery pack in the charger No battery pack inserted and charge it until the LED display indicates the battery pack is fully charged.
  • Page 14: Advancing The Line Manually

    Advancing the Line Using the Bump Feed Run the tool at full throttle. Tap the bump button on the ground to advance the line. The line advances each time the bump button is tapped. Do not hold the bump button on the ground.
  • Page 15: Operating Tips

    Adjusting the Cutting Swath The trimmer comes from the factory with a cutting swath of 28 cm (11 inches) as shown in A of Figure 15. Refer to the following instructions to adjust the swath to 33 cm (13 inches) as shown in D of Figure Remove the swath blade from the guard by removing the 2 screws and 2 lock washers holding it in place (B of...
  • Page 16: Maintenance

    Maintenance Important: Do not use any other gauge or type of string, as this could damage the trimmer. After each use of the trimmer, complete the following: Bend the new string at the midpoint and insert Remove the battery from the trimmer. the bend into the starter slot in the center rim of Wipe the trimmer clean with a damp cloth.
  • Page 17: Preparing The Battery Pack For Recycling

    Figure 19 battery. If you are located outside of the US and Canada, please contact your authorized 1. String exit holes Toro distributor. Install the spool and cover assembly to the trimmer head, push until the cover tabs snap into place.
  • Page 18: Troubleshooting

    Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The tool does not start.
  • Page 19 California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
