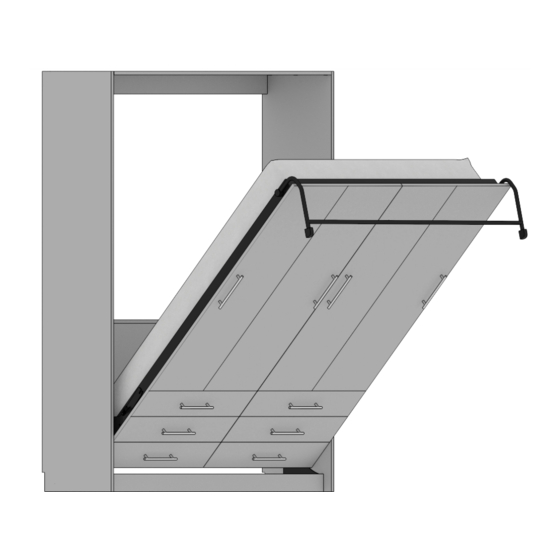

PENTHOUSE
MURPHY BED
BY BREDABEDS
Assembly Instructions
3318 West Nelis Drive
Meridian, ID 83646
/
Parts List
/
Troubleshooting
https://bredabeds.com
Web:
Email:
service@bredabeds.com
1-855-466-4781
Telephone:
/
FAQ
/
Tips
/
Warranty
REVISION: H|3.9
OCTOBER 2022
PEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PENTHOUSE MURPHY BED and is the answer not in the manual?

Questions and answers

Related Manuals for BREDABEDS PENTHOUSE MURPHY BED

Summary of Contents for BREDABEDS PENTHOUSE MURPHY BED

  • Page 1 PENTHOUSE MURPHY BED BY BREDABEDS Assembly Instructions Parts List Troubleshooting Tips Warranty REVISION: H|3.9 https://bredabeds.com Web: 3318 West Nelis Drive Email: service@bredabeds.com OCTOBER 2022 1-855-466-4781 Meridian, ID 83646 Telephone:...
  • Page 2 Thank you for purchasing a BredaBed! THANK YOU! Thank you for your Murphy Bed purchase by BredaBeds! When you’re ready to begin assembly, follow these instructions carefully and be sure not to skip any steps. If you have any trouble during the assembly process, feel free to contact us and one of our specialists will be happy to help guide you through the process.

  • Page 3: Table Of Contents

    WARRANTY POLICY BredaBeds warranties all mechanical hardware for a period of ten (10) years, all wood parts on our products for a period of one (1) year to be free of material or workmanship defects and electronics (such as lights) for a period of ninety (90) days. Warranty periods begin from date of purchase.

  • Page 4: Important Safety Information - Read This First

    Never bypass safety checklists shown in this format without verifying each item in the checklist. If you have any questions, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before proceeding. Additionally - Keep children and pets away from work area during assembly for their safety.

  • Page 5: Assembly Tips

    Assembly Tips ASSEMBLY TIPS TWO PEOPLE ALLOW YOURSELF VIDEO RECOMMENDED SUFFICIENT TIME INSTRUCTIONS We recommend that When you’re ready Scan the QR Code above to view our two people assemble to begin assembly, Murphy Bed assembly our products. always give yourself video or visit: Throughout these suffi cient time so that...

  • Page 6: Unpacking Your Bredabed & Frequently Asked Questions

    I have damaged parts on my bed, what do I do? Do not begin assembly! As soon as you fi nd damage, send us an email at service@bredabeds.com with pictures of the damaged areas, part name(s) (found on the part label), provide your order number and any other additional information.

  • Page 7: Troubleshooting

    Alternatively, you can remove or notch the baseboard. I have 3 or less stud locations to attach the Bed Cabinet to. Contact us to discuss attachment. Email us at service@bredabeds.com showing a photo of your Bed Cabinet with tape marking where your studs are located.

  • Page 8: Parts List: Panels, Hardware Packages & Before You Begin

    Parts List: Panels PARTS LIST: PANELS Bed Cabinet Panel List Door(s)* Bed Cabinet Top Bed Cabinet Right Side Headboard Bed Cabinet Left Side Headboard Shelf Bed Cabinet Toe Kick Top Nailer Cover Bed Cabinet Top Nailer Bed Cabinet Bottom Nailer Door(s)* Bed Cabinet Top Headboard...
  • Page 9 Hardware Packages HARDWARE PACKAGES You will have 3 boxes of hardware, the following images are color-coded for each box: • Orange outline: Hardware can be found inside the small white or brown box. • Grey outline: Hardware can be found inside the long box “Murphy Bed Frame”. •...
  • Page 10 Before You Begin Installation tools that are required Cordless Drill or Impact Driver #2 Phillips Screwdriver #2 and #3 Phillips bit Stud Finder Drill Bit Set Socket Set Level 1/2” Wrench or Adjustable wrench Tape Measure Ladder or Step Stool Rubber Mallet Gloves (Optional) UNDERSTANDING CAM FITTINGS...

  • Page 11: Chapter 1: Hardware Insertion

    Hardware Package #1 in holes marked with a circle using a cordless drill. Green Boxed Areas: BredaBeds Murphy Beds are designed for a mattress thickness of 11” or under, however this area is adjustable for mattress thicknesses greater than 11” if needed.
  • Page 12 Chapter 1: Hardware insertion. Referring to Fig. 1B, lay parts on floor and insert cam screws from hardware package #1 in holes marked with a circle STEP 2 using a cordless drill (see note at the bottom of this page). Insert cam fittings from hardware package #6 in holes marked green with a...
  • Page 13 Chapter 1: Hardware insertion. FIG. 1C Bed Left Side Bed Right Side STEP 3 Attach each mechanism to the face of the side panels as shown in Fig. 1C using qty 5 bolts and qty 4 nylock nuts found in Hardware Card #2.

  • Page 14: Chapter 2: Bed Cabinet Assembly

    Chapter 2: Bed Cabinet assembly. Chapter 2: Bed Cabinet assembly. REQUIRED TOOLS: #2 Phillips Screwdriver You’ll now assemble the Bed Cabinet on the floor directly in front of the wall where the OVERVIEW: bed will attach, then tilt the unit up. To do this, you’ll need at least 3 extra inches of height clearance.
  • Page 15 Chapter 2: Bed Cabinet assembly. FIG. 2C STEP 3 Slide “Bed Cabinet Left Side” as shown in Fig. 2C in direction of arrow and tighten all cam fittings. FIG. 2D STEP 4 Attach “Headboard”, “Headboard Shelf” and “Bed Cabinet Bottom Nailer”...
  • Page 16 Cam fittings on the Bed Cabinet Top should face down and WILL be • visible from below. If any of these parts are backwards, they must be flipped around. If you have any questions, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before proceeding.

  • Page 17: Chapter 3: Attaching The Bed Cabinet To The Wall

    Chapter 3: Attaching the Bed Cabinet to the wall. Chapter 3: Attaching the Bed Cabinet to the wall. REQUIRED TOOLS REQUIRED HARDWARE • Cordless Drill and/or Impact Driver • Hardware Package #10 (white box) • #2 & #3 Phillips Bit •...
  • Page 18 Chapter 3: Attaching the Bed Cabinet to the wall. FIG. 3A - DRYWALL CUTAWAY SHOWING WALL STUDS STEP 2 Using a stud finder, locate and mark the exact center of each stud (see page 7 if you have 3 or less stud locations) along the “Bed Cabinet Top Nailer”.
  • Page 19 ***IN SERIOUS INJURY OR DEATH!*** DO NOT attempt to proceed if the Bed Cabinet Top Nailer is damaged or cracked. Contact BredaBeds for a replacement. DO NOT remove the warning tape on the Top Nailer. If the warning is missing or damaged, contact BredaBeds to receive replacement tape.
  • Page 20 If your wall backing varies from this, visit: https://breda.us/walls Contact BredaBeds to discuss if you have any questions or concerns. Have you used the screws provided? Do not deviate from using the screws provided without written authorization.

  • Page 21: Chapter 4: Assembling The Bed Face Panel Unit

    Chapter 4: Assembling the Bed Face Panel unit. Chapter 4: Assembling the Bed Face Panel unit. REQUIRED TOOLS REQUIRED HARDWARE • Cordless Drill and/or Impact Driver • Hardware Card #3 (frame box) • 5/16” Socket • Hardware Card #7 (frame box) •...
  • Page 22 Chapter 4: Assembling the Bed Face Panel unit. For video instructions of this chapter, visit: https://breda.us/frame Lay the metal frame pieces on top of the bed doors with the wider ledge and holes facing down towards the bed doors. Use STEP 2 the hardware from Hardware Card #3 for the following: LEG END CORNERS: Referring to Fig.
  • Page 23 Chapter 4: Assembling the Bed Face Panel unit. For video instructions of this chapter, visit: https://breda.us/frame Position the frame 1/2” from FIG. 4G - OVERHEAD VIEW “Mechanism End” and centered STEP 3 along the left and right sides. Attach frame to doors using Critical Step screws from hardware card #7.
  • Page 24 Review Chapter 4, Step 2, Fig 4C and Fig 4D Is the work area clear of children & pets? If you have any questions, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before proceeding.

  • Page 25: Chapter 5: Attaching The Bed Face Panel To The Bed Cabinet

    Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. REQUIRED TOOLS REQUIRED HARDWARE • 1/2” Socket • Hardware Card #2 (mech. box) • 1/2” Wrench • Springs (mech.
  • Page 26 Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. For video instructions of this chapter, visit: https://breda.us/face FIG. 5E - LEFT SIDE SHOWN STEP 2 Slide the steel tube over the mechanism arm and pull outward to engage the arm lock on the T-Nut as shown in Fig.
  • Page 27 Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. For video instructions of this chapter, visit: https://breda.us/face The bolts for Holes #1, #2 and #3 will all attach from the outside of the frame. In other words, the bolt heads will be on the outside of the frame and the nuts will go on the inside of the frame for all three of the holes.
  • Page 28 Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. For video instructions of this chapter, visit: https://breda.us/face FIG. 5G - LOOKING THROUGH LEFT SIDE FIG. 5H - LOOKING THROUGH LEFT SIDE 1. Referring to Fig. 5G, stand the Bed Face Panel in vertical STEP 5 position between the mechanism arms, lifting until the bolt in Hole #3 drops in the slotted portion of each mechanism arm.

  • Page 29: Chapter 6: Installing The Handles, Leg Support And Mattress

    DO NOT PROCEED PAST THIS POINT WITHOUT FIRST VERIFYING THE FOLLOWING: Have the bolts in Hole #2 been inserted? If you have any questions, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before proceeding. Chapter 6: Installing the handles, leg support and mattress.
  • Page 30 Chapter 6: Installing the handles, leg support and mattress. • Install the leg connector rod between the legs and secure with Hex head bolts and star washers from Hardware Card #4 and STEP 4 securely tighten Hex bolt with a 7/16” socket. •...

  • Page 31: Chapter 7: Final Adjustment For The Bed Cabinet And Springs

    Bed Cabinet Top Nailer from the wall. Prior to doing this, measure how far and in what direction the bed cabinet needs to shift in order to achieve alignment. If you have any questions, contact us (phone: 1-855-466-4781, email: service@bredabeds. com or live chat: https://bredabeds.com) before doing anything.
  • Page 32 Chapter 7: Final adjustment for the Bed Cabinet and springs. To determine the proper tension, the mattress needs to be in place. When open, the bed legs should rest on the STEP 2 fl oor without lifting. When closed, the bed should stay closed without falling back open.

  • Page 33: Chapter 8: How To Disassemble The Bed For Moving

    Chapter 8: How to disassemble the bed for moving. Chapter 8: How to disassemble the bed for moving. REQUIRED TOOLS ESTIMATED TIME • Cordless Drill with #2 Phillips 30 Minutes • 1/2 Wrench or Adjustable Pliers Note: This is an average time only, yours may vary.
