- Page 1 INVERTER Plug-in option PRE-OPERATION INSTRUCTIONS FR-A8AP INSTALLATION AND WIRING INSTRUCTION MANUAL ENCODER SPECIFICATIONS AND PARAMETER SETTINGS ORIENTATION CONTROL Orientation control ENCODER FEEDBACK CONTROL Encoder feedback control VECTOR CONTROL Vector control...
-
Page 2: Safety Instructions
Safety instructions Thank you for choosing this Mitsubishi Electric inverter plug-in option. This Instruction Manual provides handling information and precautions for use of this product. Incorrect handling might cause an unexpected fault. Before using this product, always read this Instruction Manual carefully to use this product correctly. - Page 3 Injury Prevention CAUTION The voltage applied to each terminal must be as specified in the Instruction Manual. Otherwise an explosion or damage may occur. The cables must be connected to the correct terminals. Otherwise an explosion or damage may occur. ...
- Page 4 CAUTION Usage As all parameters return to their initial values after the Parameter clear or All parameter clear is performed, the parameters must be set again as required before the operation is started. Static electricity in your body must be discharged before you touch the product. Maintenance, inspection and parts replacement ...
-
Page 5: Table Of Contents
2 INSTALLATION AND WIRING Pre-installation instructions ............................9 Installation procedure ..............................10 Encoder specification / terminating resistor switch setting..................14 Wiring....................................17 Encoder cables dedicated to Mitsubishi Electric motors ..................22 Terminals..................................25 3 ENCODER SPECIFICATIONS AND PARAMETER SETTINGS Encoder ..................................26 4 ORIENTATION CONTROL Wiring example ................................31 Terminals..................................33... - Page 6 6 VECTOR CONTROL Wiring examples ................................38 Specifications ................................42 APPENDIX Appendix 1 Instructions for compliance with the EU Directives ..................44 Appendix 2 Instructions for EAC ............................45 Appendix 3 Restricted Use of Hazardous Substances in Electronic and Electrical Products ........46 Appendix 4 Referenced Standard (Requirement of Chinese standardized law) ............47 Appendix 5 Compliance with the UK certification scheme .....................48...
-
Page 7: Pre-Operation Instructions
PRE-OPERATION INSTRUCTIONS Unpacking and product confirmation Take the plug-in option out of the package, check the product name, and confirm that the product is as you ordered and intact. This product is a plug-in option dedicated for the FR-A800 series. ... -
Page 8: Component Names

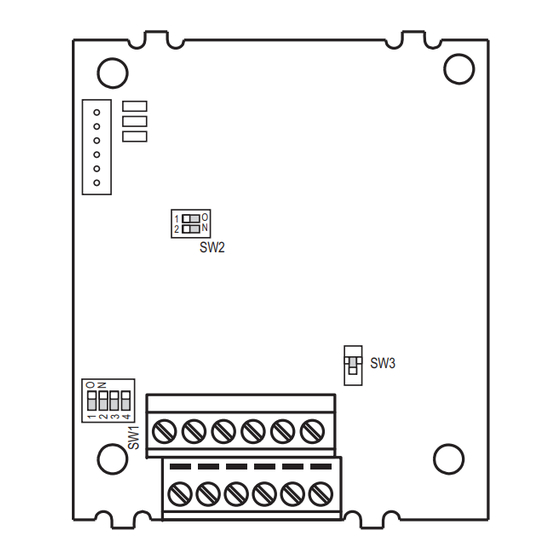

Component names Rear view Front view Terminal layout PIN and PO are not used. Refer to Symbol Name Description page Mounting hole Fixes the option to the inverter with screws, or installs spacers. Terminal block Connects to the encoder. Encoder type selection switch (SW3) Switches the encoder type (differential line driver/ complementary). -
Page 9: Installation And Wiring
INSTALLATION AND WIRING Pre-installation instructions Check that the inverter's input power and the control circuit power are both OFF. CAUTION • Do not mount or remove the plug-in option while the input power is ON. Doing so may damage the inverter or plug-in option. •... -
Page 10: Installation Procedure
Installation procedure Remove the inverter front cover. (Refer to Chapter 2 of the Instruction Manual (Detailed) of the inverter instructions for removing the front cover.) Insert two spacers into the mounting holes that will not be used for mounting screws (see the diagrams on page 11 identify the holes). - Page 11 Insertion positions of screws and spacers (standard model) Spacer This connector is available when other option is not connected to the connector 2. Connector 3 Spacer Mounting screw Spacer Spacer Connector 2 Connector 1 Spacer Spacer Mounting screw Mounting screw INSTALLATION AND WIRING...
- Page 12 Insertion positions of screws and spacers (Ethernet model) Spacer When the Ethernet board is connected, the FR-A8AP can be connected. When the Ethernet board is disconnected, the Connector 3 FR-A8AP can be connected when other option is not connected to the connector 2. Spacer Mounting screw Spacer...
- Page 13 NOTE • Be careful not to drop mounting screws during the installation or removal of the plug-in option. • Only attached to the option connector with high priority can function at once if more than one option of the same name are installed together on an inverter.
-
Page 14: Encoder Specification / Terminating Resistor Switch Setting
Encoder specification / terminating resistor switch setting Encoder specification selection switch (SW3) Select either differential line driver or complementary. It is initially set to the differential line driver. Switch its position according to output circuit. Differential line driver (initial status) Complementary INSTALLATION AND WIRING... - Page 15 Terminating resistor selection switch (SW1) Select "ON"/"OFF" of the internal terminating resistor. Set the switch to "ON" (initial status) when an encoder output type is differential line driver and set to "OFF" when complementary. ON : with internal terminating resistor (initial setting status) OFF : without internal terminating resistor Internal terminating resistor-ON...
- Page 16 Mitsubishi Electric high- performance energy-saving motor SF-PR-SC Complementary 12V to 24V with encoder SF-V5RU Complementary 12V to 24V Mitsubishi Electric Vector control dedicated motor SF-THY Complementary 12 to 24 V Mitsubishi standard motor with SF-JR Differential encoder SF-HR Differential...
-
Page 17: Wiring
Wiring Use twisted pair shield cables (0.2 mm or larger) to connect the FR-A8AP and position detector. For the wiring to the terminals PG and SD, use several cables in parallel or use a thick cable, according to the wiring length. - Page 18 When differential driver is set and a wiring length is 30 m or more The wiring length can be extended to 100 m by slightly increasing the 5 V power supply (approx. 5.5 V) and using six or more cables with gauge size of 0.2 mm in parallel or a cable with gauge size of 1.25 mm or more.
- Page 19 Wire the shielded twisted pair cable after stripping its sheath to make its cables loose. Also, protect the shielded cable of the shielded twisted pair cable to ensure that it will not make contact with the conductive area. Shield (perform protective treatment) Sheath Shielded twisted pair cable Strip the signal wires as follows.
- Page 20 NOTE • Information on crimp terminals Commercially available products (as of October 2020) Phoenix Contact Co., Ltd. Ferrule part No. Cable gauge Terminal Crimping tool Without insulation screw size model No. With insulation sleeve sleeve 0.3 to 0.5 Al 0,5-6WH A 0,5-6 CRIMPFOX 6 NICHIFU Co., Ltd.
- Page 21 Loosen the terminal screw and insert the cable into the terminal. Screw size Tightening torque Cable gauge Screwdriver Small flathead screwdriver 0.22 Nm to 0.25 Nm 0.3 mm to 0.75 mm (tip thickness: 0.4 mm / tip width: 2.5 mm) NOTE •...
-
Page 22: Encoder Cables Dedicated To Mitsubishi Electric Motors
Encoder cables dedicated to Mitsubishi Electric motors Use dedicated encoder cables to connect with Mitsubishi Electric encoder-equipped motors. FR-V7CBL For SF-PR-SC/SF-V5RU/SF-THY A P clip for earthing (grounding) a shielded cable is provided. Inverter F-DPEVSB 12P 0.2 mm D/MS3057-12A (FR-A8AP) Encoder Approx. - Page 23 FR-JCBL For SF-JR/HR/JRCA/HRCA (with encoder) Inverter (FR-A8AP) F-DPEVSB 12P 0.2mm D/MS3057-12A Encoder Approx. 140 mm Earth cable Positioning keyway 60mm D/MS3106B20-29S D/MS3106B20-29S (As viewed from wiring side) Type Length L (m) FR-JCBL5 FR-JCBL15 FR-JCBL30 As the terminal block of the FR-A8AP is an insertion type, cables need to be treated. (Refer to page 19.) INSTALLATION AND WIRING...
- Page 24 Connection terminal compatibility table Motor SF-PR-SC/SF-V5RU/SF-THY SF-JR/HR/JRCA/HRCA (with encoder) Encoder cable FR-V7CBL FR-JCBL Keep this open. Keep this open. FR-A8AP terminal Keep this open. INSTALLATION AND WIRING...
-
Page 25: Terminals
Terminals Terminal Common Terminal Name Specification Description Symbol Encoder A-phase signal input terminal A-phase signal is input from the encoder. Encoder A-phase inverse signal input terminal Encoder B-phase signal Differential line For details of input terminal driver: ― Differential line driver / B-phase signal is input from pulse signal, Complementary:... -
Page 26: Encoder Specifications And Parameter Settings
ENCODER SPECIFICATIONS AND PARAMETER SETTINGS Encoder Position detection (pulse encoder) Output pulse specifications Differential line driver Complementary A/A signal 1000 P/R to 4096 P/R A signal 1000 P/R to 4096 P/R Position detector B/B signal 1000 P/R to 4096 P/R B signal 1000 P/R to 4096 P/R Encoder Z/Z signal 1 P/R... - Page 27 Power supply Choose a power supply for encoder according to the encoder used (5 V/12 V/15 V/24 V). When the encoder output is the differential line driver type, only 5 V can be input. Make sure the voltage of the external power supply the same as the encoder output voltage.
- Page 28 Parameter settings for the motor under Vector control Using the control terminal option FR-A8TP together with the FR-A8AP enables Vector control or machine end orientation control by switching between two encoder-equipped motors. Use Pr.862 to set the combination of the motors (first/second) and the options (FR-A8TP/FR-A8AP).
- Page 29 SF-JR 1 (Initial value) 1024 (Initial value) SF-JR 4P 1.5 kW or less 1 (Initial value) 1024 (Initial value) Mitsubishi Electric standard motor SF-HR 1 (Initial value) 1024 (Initial value) Others SF-JRCA 4P 1 (Initial value) 1024 (Initial value)
- Page 30 MEMO ENCODER SPECIFICATIONS AND PARAMETER SETTINGS...
-
Page 31: Orientation Control
ORIENTATION CONTROL This function is used with a position detector (encoder) installed to the spindle of a machine tool, etc. to allow a rotary shaft to be stopped at the specified position (oriented). For the details of the parameters used for orientation control, refer to the Instruction Manual (Detailed) of the inverter. Wiring example For complementary type (SF-V5RU) SF-JR motor with encoder... - Page 32 For the fan of the 7.5 kW or less dedicated motor, the power supply is single phase (200 V/50 Hz, 200 to 230 V/ 60 Hz). The pin number differs according to the encoder used. Use Pr. 178 to Pr. 189 (input terminal function selection) to assign the function to any of terminal. Refer to the Instruction Manual (Detailed) for details of Pr.
-
Page 33: Terminals
Terminals Option FR-A8AX terminal Terminal Terminal Name Description Symbol Input the digital signal at the relay contact or open collector terminal. X0 to X15 Digital signal input terminal Using Pr. 360, speed or position command is selected as the command signal entered. Used when a digital signal read timing signal is necessary. -
Page 34: Specifications
Specifications Item Description ±1.5° Repeated positioning Depends on the load torque, moment of inertia of the load or orientaion, creep speed, position loop switching accuracy position, etc. Encoder-mounted shaft speed (6000 r/min with 1024-pulse encoder). Permissible speed The drive shaft and encoder-mounted shaft must be coupled directly or via a belt without any slip. Gear changing shafts cannot be applied. -
Page 35: Encoder Feedback Control
ENCODER FEEDBACK CONTROL Mount FR-A8AP to an FR-A800 series inverter to perform encoder feedback control under V/F control or Advanced magnetic flux vector control. This controls the inverter output frequency so that the motor speed is constant to the load variation by detecting the motor speed with the speed detector (encoder) to feed back to the inverter. -
Page 36: Specifications
The pin number differs according to the encoder used. Connect the encoder so that there is no looseness between the motor and motor shaft. Speed ratio should be 1:1. Earth (Ground) the shielded cable of the encoder cable to the enclosure with a P clip, etc. (Refer to page 17.) For the differential line driver, set the terminating resistor selection switch to on position (initial status) to use. - Page 37 VECTOR CONTROL When FR-A8AP is installed on the FR-A800 series, full-scale vector control operation can be performed using a motor with encoder. Speed control, torque control and position control by vector control can be performed. (Refer to the Instruction Manual (Detailed) for details.) VECTOR CONTROL...
- Page 38 Wiring examples Speed control Vector control dedicated motor (SF-PR-SC, SF-V5RU, or SF-THY), 12 V Standard motor with encoder (SF-JR), 5 V complementary differential line driver SF-PR-SC/ SF-JR motor with encoder Inverter MCCB SF-V5RU/SF-THY ∗7 Three-phase AC power supply ∗13 Earth MCCB Inverter...
- Page 39 Torque control Vector control dedicated motor (SF-PR-SC, SF-V5RU, or SF-THY), 12 V Standard motor with encoder (SF-JR), 5 V complementary differential line driver SF-JR motor SF-PR-SC/ Inverter with encoder MCCB SF-V5RU/SF-THY ∗7 Three-phase AC power supply ∗13 Earth MCCB Inverter (Ground) FR-A8AP...
- Page 40 Position control Vector control dedicated motor (SF-PR-SC, SF-V5RU, or SF-THY), 12 V complementary SF-PR-SC/ MCCB SF-V5RU/SF-THY Three-phase Positioning unit AC power supply MELSEC-Q QD75P[ ]N/QD75P[ ] MCCB MELSEC-L LD75P[ ] R/L1 Inverter Three-phase S/L2 AC power supply T/L3 Earth (ground) Thermal External thermal protector...
- Page 41 The pin number differs according to the encoder used. Speed, control, torque control, and position control by pulse train input are available with or without the Z-phase being connected. Connect the encoder so that there is no looseness between the motor and motor shaft. Speed ratio must be 1:1. Earth (ground) the shield of the encoder cable to the enclosure using a tool such as a P-clip.
- Page 42 Specifications Item Description Speed control range 1:1500 (both driving/regeneration Speed variation ratio ±0.01% (100% means 3000 r/min) Speed control Speed response 130 Hz Maximum speed 120 Hz (102400 pulse/s or less encoder pulses) Torque control range 1:50 Absolute torque accuracy Torque control ±10% Repeated torque accuracy...
- Page 43 MEMO VECTOR CONTROL...
- Page 44 CE marking. • The authorized representative in the EU The authorized representative in the EU is shown below. Name: Mitsubishi Electric Europe B.V. Address: Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany EMC Directive We declare that this product conforms with the EMC Directive when installed in a compatible inverter, and affix the CE marking on the packaging plate.
- Page 45 Year, and the Month is indicated by 1 to 9, X (October), Y (November), or Z (December). • Authorized sales representative (importer) in the CU area The authorized sales representative (importer) in the CU area is shown below. Name: Mitsubishi Electric (Russia) LLC Address: 52, bld 1 Kosmodamianskaya Nab 115054, Moscow, Russia Phone: +7 (495) 721-2070...
- Page 46 Appendix 3 Restricted Use of Hazardous Substances in Electronic and Electrical Products The mark of restricted use of hazardous substances in electronic and electrical products is applied to the product as follows based on the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products”...
- Page 47 Appendix 4 Referenced Standard (Requirement of Chinese standardized law) This Product is designed and manufactured accordance with following Chinese standards. EMC: GB/T 12668.3 APPENDIX...
- Page 48 Appendix 5 Compliance with the UK certification scheme We declare that this product conforms with the related technical requirements under UK legislation when installed in a compatible inverter, and affix the UKCA (UK Conformity Assessed) marking on the packaging plate. Approval conditions are the same as those for the EU Directives.
- Page 49 MEMO...
- Page 50 MEMO...
- Page 51 REVISIONS *The manual number is given on the bottom left of the back cover. Instructions for compliance with the EU Directives Revision date *Manual Number Revision Aug. 2013 IB(NA)-0600505ENG-A First edition Edited Sep. 2014 IB(NA)-0600505ENG-B • Crimp terminals commercially available Added •...
- Page 52 INVERTER HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN IB(NA)-0600505ENG-C(2209) MEE Printed in Japan Specifications subject to change without notice.
