INVERTER

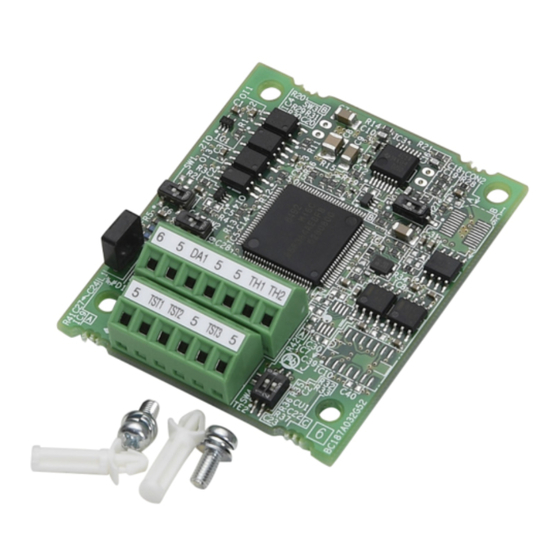

Plug-in option
FR-A8AZ
INSTRUCTION MANUAL
Bipolar analog output function
High resolution analog input function
Motor thermistor interface
PRE-OPERATION INSTRUCTIONS
INSTALLATION AND WIRING
PARAMETER LIST
BIPOLAR ANALOG OUTPUT
HIGH RESOLUTION ANALOG INPUT
MOTOR THERMISTOR INTERFACE
1
2
3
4
5
6

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric 800 Series

Summary of Contents for Mitsubishi Electric 800 Series

  • Page 1 INVERTER PRE-OPERATION INSTRUCTIONS Plug-in option INSTALLATION AND WIRING FR-A8AZ PARAMETER LIST INSTRUCTION MANUAL BIPOLAR ANALOG OUTPUT Bipolar analog output function HIGH RESOLUTION ANALOG INPUT High resolution analog input function MOTOR THERMISTOR INTERFACE Motor thermistor interface...

  • Page 2: Safety Instructions

    Safety instructions Thank you for choosing this Mitsubishi Electric inverter plug-in option. This Instruction Manual provides handling information and precautions for use of this product. Incorrect handling might cause an unexpected fault. Before using this product, read this Instruction Manual carefully to ensure proper use.
  • Page 3  Injury prevention CAUTION  The voltage applied to each terminal must be as specified in the Instruction Manual. Otherwise an explosion or damage may occur.  The cables must be connected to the correct terminals. Otherwise an explosion or damage may occur. ...
  • Page 4 CAUTION Usage  As all parameters return to their initial values after Parameter clear or All parameter clear is performed, the parameters must be set again as required before the operation is started.  To avoid damage to this product due to static electricity, static electricity in your body must be discharged before you touch this product. Maintenance, inspection and parts replacement ...

  • Page 5: Table Of Contents

    — CONTENTS — Safety instructions 1 PRE-OPERATION INSTRUCTIONS Unpacking and product confirmation..........................7 1.1.1 Product confirmation ................................7 1.1.2 SERIAL number check................................8 Component names ................................9 2 INSTALLATION AND WIRING Pre-installation instructions ............................11 Installation procedure ..............................12 Wiring....................................16 3 PARAMETER LIST 4 BIPOLAR ANALOG OUTPUT Connection diagram ..............................21 Terminals..................................22 Bipolar analog outputting parameter...........................23...
  • Page 6 Terminals..................................28 High resolution analog input parameter........................29 5.3.1 Parameter list ..................................29 5.3.2 Selection of terminal 6 function (Pr.406) ..........................30 5.3.3 Calibration of terminal 6 (Pr.148, Pr.149, Pr.846 to Pr.848, C30 to C37) ................32 Noise reduction techniques............................35 Specifications ................................36 6 MOTOR THERMISTOR INTERFACE Connection diagram ..............................37 Terminals..................................38...

  • Page 7: Pre-Operation Instructions

    PRE-OPERATION INSTRUCTIONS Unpacking and product confirmation Take the plug-in option out of the package, check the product name, and confirm that the product is as you ordered and intact. This product is a plug-in option made for the FR-A800 series. 1.1.1 Product confirmation Check the enclosed items.

  • Page 8: Serial Number Check

    1.1.2 SERIAL number check The FR-A8AZ can be used with the models of inverters listed below which have the following SERIAL number. Check the SERIAL number indicated on the inverter rating plate or package. Rating plate example □ ○ ○ ○○○○○○ Symbol Year Month...

  • Page 9: Component Names

    Component names Terminal layout Front view Rear view ∗1 ∗1 ∗1 ∗1 ∗2 ∗2 ∗1 ∗2 ∗1 ∗1 All terminals 5 are connected internally. ∗2 Terminals TST1 to TST3 are not used. Keep these open. Accidental connection will damage the option. PRE-OPERATION INSTRUCTIONS...
  • Page 10 Refer to Symbol Name Description page Used to fix this product to the inverter by inserting a mounting screw or a Mounting hole spacer. Terminal block Wire the input or output devices. Switch for thermistor calibration (SW2) Change the setting when calibrating the thermistor. Switch for manufacturer setting (SW1) ―...

  • Page 11: Installation And Wiring

    INSTALLATION AND WIRING Pre-installation instructions Check that the inverter's input power and the control circuit power are both OFF. CAUTION • Do not install or remove the plug-in option while the input power is ON. Doing so may damage the inverter or plug-in option. •...

  • Page 12: Installation Procedure

    Installation procedure Remove the inverter front cover. (Refer to Chapter 2 of the Instruction Manual (Detailed) of the inverter for instructions for removing the front cover.) Insert two spacers into the mounting holes that will not be used for mounting screws (see the diagrams on page 13 identify the holes).
  • Page 13  Insertion positions of screws and spacers (RS-485 model) Spacer Mounting screw Connector 3 Spacer Mounting screw Spacer Spacer Connector 2 Connector 1 Spacer Spacer Mounting screw Mounting screw INSTALLATION AND WIRING...
  • Page 14  Insertion positions of screws and spacers (Ethernet model) Spacer Mounting screw Connector 3 Spacer Mounting screw Spacer The option connector 2 cannot be used because the Ethernet board is installed in the initial status. The Ethernet board must be removed Connector 2 Connector 1 to install a plug-in option to the option connector 2.
  • Page 15 NOTE • When installing/removing the plug-in option, hold the sides of the option. Do not press on the parts on the option circuit board. Stress applied to the parts by pressing, etc. may cause a failure. • Be careful not to drop mounting screws during the installation or removal of the plug-in option. •...

  • Page 16: Wiring

    Wiring Wire the shielded twisted pair cable after stripping its sheath to make its cables loose. Also, protect the shielded cable of the shielded twisted pair cable to ensure that it will not make contact with the conductive area. Shield (perform protective treatment) Sheath Shielded twisted pair cable...
  • Page 17 Use a crimp terminal as necessary. When using the crimp terminal, make sure that the stranded wire do not come out of the terminal. Unstranded wires Wires are not inserted Damaged Crumpled tip into the sleeve NOTE • Crimp terminals commercially available (as of April 2023. The product may be changed without notice.) Wire gauge Ferrule part No.
  • Page 18 CAUTION • Do not use terminals TST1 to TST3 as junction terminals because they are used in the option unit. Doing so may damage the plug-in option. • After wiring, do not leave wire offcuts in the inverter. Doing so may cause a fault, failure, or malfunction. INSTALLATION AND WIRING...

  • Page 19: Parameter List

    PARAMETER LIST Use the following parameters with the FR-A8AZ. Set these as required. Minimum Refer to Name Setting range setting Initial value group page increments G062 Motor temperature feedback reference 0 to 150, 9999 1 9999 T060 High resolution analog input selection 0, 2 to 6, 9999 9999 T620...
  • Page 20 Minimum Refer to Name Setting range setting Initial value group page increments T684 Terminal 6 bias command (torque) 0 to 400% 0.1% C34(928) T685 Terminal 6 bias (torque) 0 to 300% 0.1% C35(928) T686 Terminal 6 gain command (torque) 0 to 400% 0.1% 150% C36(929)

  • Page 21: Bipolar Analog Output

    BIPOLAR ANALOG OUTPUT Bipolar analog output is available with FR-A8AZ. Outputting 0 to 10 VDC enables output frequency, output voltage, etc. to be monitored with a DC voltage meter. Connection diagram Inverter MCCB Motor R/L1 Three-phase S/L2 AC power supply T/L3 FR-A8AZ (Indicator)

  • Page 22: Terminals

    Terminals Terminal symbol Terminal name Description Bipolar analog output terminal Connect a DC indicator (10 VDC). Common terminal Common terminal of terminal DA1 BIPOLAR ANALOG OUTPUT...

  • Page 23: Bipolar Analog Outputting Parameter

    Bipolar analog outputting parameter 4.3.1 Parameter list The following parameters are used for outputting bipolar analog. Minimum Pr. group Name Setting range setting Initial value increments M304 DA1 terminal function selection M350 DA1 output filter 0 to 5 s 0.001 s 0.05 s M380 DA1-0V adjustment...

  • Page 24: Calibration Of The Indicator (Pr.838, Pr.857, C0)

    4.3.2 Calibration of the indicator (Pr.838, Pr.857, C0) Refer to the following flow chart to calibrate the indicator. Start Connect the indicator across terminals DA1 At this time, check that the polarity is correct. Terminal DA1 is plus. and terminal 5. If the indicator needle does not point to 0 when voltage output is 0, Use Pr.857 to make calibration of indicator adjust the setting value of Pr.857 DA1 0V adjustment in between 900%...

  • Page 25: Monitor Item List

    4.3.3 Monitor item list • Set the monitor to be output to the terminal DA1 (bipolar analog output (0 to 10 VDC voltage output)) in Pr.838 DA1 terminal function selection. The settings of Pr.838 are the same as those of Pr.158 AM terminal function selection. For the details of Pr.158, refer to the Instruction Manual (Detailed) of the inverter.

  • Page 26: Terminal Da1 Response Level Adjustment (Pr.839)

    Positive output during forward rotation and negative output during reverse rotation. Positive output at forward power driving or reverse regenerative driving and negative output at reverse power driving or forward regenerative driving. Positive output at forward power driving or reverse power driving and negative output at forward regenerative driving or reverse regenerative driving.

  • Page 27: High Resolution Analog Input

    HIGH RESOLUTION ANALOG INPUT High resolution analog input is available with FR-A8AZ. Inputting 0 to 10 VDC voltage enables speed command, torque limit command, torque command, torque bias, and stall prevention operation level input. Connection diagram MCCB Inverter Motor R/L1 Three-phase S/L2 AC power supply...

  • Page 28: Terminals

    Terminals Terminal symbol Terminal name Description Terminal for 0 to 10 VDC high resolution (16 bits) analog voltage input. Use Pr.406 High resolution input terminal High resolution analog input selection to select terminal function. Maximum permissible voltage: 20 VDC Common terminal Common terminal of terminal 6 HIGH RESOLUTION ANALOG INPUT...

  • Page 29: High Resolution Analog Input Parameter

    High resolution analog input parameter 5.3.1 Parameter list Use the following parameters for high resolution analog input. Minimum Pr. group Name Setting range setting Initial value increments *1*2 T060 High resolution analog input selection 0, 2 to 6, 9999 9999 G236 Torque bias balance compensation 0 to 10 V, 9999...

  • Page 30: Selection Of Terminal 6 Function (Pr.406)

    5.3.2 Selection of terminal 6 function (Pr.406)  Terminal 6 function list Functions of terminal 6 change according to the Pr.406 setting and control method. When a function is assigned to the terminal 6 while the same function is assigned to the terminal 1, 2, or 4, the input to the terminal 1, 2 or 4 becomes invalid.
  • Page 31  Filter of terminal 6 input When giving the speed command or limiting the speed from terminal 6 input, settings of Pr.822 Speed setting filter 1 and Pr.832 Speed setting filter 2 are valid. When giving the torque command or limiting the torque from terminal 6 input, settings of Pr.826 Torque setting filter 1 and Pr.836 Torque setting filter 2 are valid.

  • Page 32: Calibration Of Terminal 6 (Pr.148, Pr.149, Pr.846 To Pr.848, C30 To C37)

    5.3.3 Calibration of terminal 6 (Pr.148, Pr.149, Pr.846 to Pr.848, C30 to C37)  Terminal 6 calibration parameter Use the following parameters for calibration of terminal 6 according to the Pr.406 setting. Calibration parameters Pr.406 Terminal 6 Related setting function parameters Bias setting Gain setting...
  • Page 33  Calibration of speed command/speed limit (Pr.406 = "0, 5") Frequency Initial value Bias 60Hz/ C30(Pr.926) 50Hz Gain C32(Pr.927) Input voltage -10V C33(Pr.927) (Pr.926) 60Hz/50Hz When Pr.406 = "0, 5", terminal 6 acts as speed command or speed limit input and C30 to C33 are used for calibration parameter.
  • Page 34  Calibration of stall prevention operation level (Pr.406 = "4") When Pr.406 = "4" under V/F control and Advanced magnetic flux vector control, terminal 6 acts as stall prevention operation level and Pr.148 and Pr.149 are used for calibration parameter. Current limit level (%) 200% Initial value...

  • Page 35: Noise Reduction Techniques

    Pr.840 = "2" (at regeneration when the motor is in forward rotation) <When the motor runs in reverse rotation direction> <When the motor runs in forward rotation direction> Voltage for balanced load Voltage for balanced load Bias amount Bias amount Pr.846 Pr.846 Torque bias...

  • Page 36: Specifications

     Measures of inverter • If a large value is set in Pr.72 PWM frequency selection, decrease the Pr.72 setting. (Noise from the motor increases.) • Increase the setting of speed (torque) setting filter Pr.822, Pr.832 (Pr.826, Pr.836). NOTE • As changing the speed (torque) setting filter will affect the response level of the inverter to the command, adjust the setting by looking at the machine movement.

  • Page 37: Motor Thermistor Interface

    MOTOR THERMISTOR INTERFACE A vector-controlled motor with thermistor (SF-V5RUT/A) detects the motor temperature with the motor-side thermistor and sends the detected temperature to the inverter as a feedback. This operation reduces fluctuation of the generated torque due to temperature changes. The detected motor temperature can be output as an output signal (Y55 signal) or be displayed on the monitor.

  • Page 38: Terminals

    NOTE • The motor temperature detection is valid for the first motor. When applying the second motor (RT signal is ON), temperature detection is not performed. • To detect temperature with FR-A8AZ, be sure to use the SF-V5RUT/A, a dedicated motor with thermistor. Terminals Terminal symbol Terminal name...

  • Page 39: Motor Thermistor Parameter

    Motor thermistor parameter 6.3.1 Parameter list Parameters below are used for motor thermistor interface. Following parameters are available only when used with FR-A8AZ. Minimum Pr. group Name Setting range setting Initial value increments G062 Motor temperature feedback reference 0 to 150, 9999 1...

  • Page 40: Enabling The Motor Thermistor

    6.3.3 Enabling the motor thermistor When Pr.407 Motor temperature detection filter is set to a value other than "9999", the motor thermistor is enabled to activate the motor thermal protection and slip compensation. • Normally set about "30 s" in Pr.407. •...

  • Page 41: Thermistor Calibration (C29)

    6.3.4 Thermistor calibration (C29) Perform calibration of the inverter and FR-A8AZ (thermistor interface) at installation, before starting the motor. NOTE • Calibration must be performed at installation.  Calibration method Set the switch for thermistor calibration (SW2) to align with the line to bring the FR-A8AZ to the calibration status. Read C29 (Pr.925) and set the compensation value.
  • Page 42  Operation example of compensation value setting • Calibration using the operation panel (FR-DU08) Adjusting a compensation value as desired Select C29 in parameter setting mode. Turn Present compensation command value is displayed. The present setting at the instant of turning is displayed.
  • Page 43 • Calibration using the LCD operation panel (FR-LU08) Select Pr.925 in parameter setting mode. SETTING MODE Pr. NO. (Also selectable from the functional list 0925 in the quick menu, the initial value list or - - - - - - S T O P S T O P the parameter change list in the function...

  • Page 44: Motor Temperature Detection Signal

    6.3.5 Motor temperature detection signal When motor temperature exceeds the detection level, motor temperature detection signal (Y55) is output. (Set Pr.407 Motor temperature detection filter  "9999") Set "55 (positive logic)" or "155 (negative logic)" in the following parameters to output the motor temperature detection signal (Y55) when motor temperature exceeds the detection level.

  • Page 45: Motor Temperature Monitor Output

    6.3.6 Motor temperature monitor output The motor temperature can be monitored using PU, DU, terminal AM, terminal FM/CA, RS-485 communication, or each output option. (Set Pr.407 Motor temperature detection filter  "9999") Set "46" in the following parameters. • Pr.52 Operation panel main monitor selection, Pr.54 FM/CA terminal function selection, Pr.158 AM terminal function selection (Refer to the Instruction Manual (Detailed) of the inverter for details.) •...
  • Page 46 Output from terminal FM (CA) Output from terminal DA1 (AM ∗1 Terminal FM (CA) output Terminal DA1 (AM) output 10 V 1440 pulses/s (20 mA) Outputs 0 when motor temperature is below 0°C -50°C Pr.751 200°C Pr.751 200°C Motor Motor temperature temperature Setting range of Pr.751...

  • Page 47: Slip Compensation

    6.3.7 Slip compensation When Pr.407 Motor temperature detection filter  "9999", slip compensation is enabled under vector control for the motor with an encoder. The slip frequency is compensated by Pr.326 Motor temperature feedback reference and the detected temperature. When using the motor constant set by offline auto tuning or set directly, set in Pr.326 the motor temperature for when the motor constant (R2) was determined.

  • Page 48: Appendix

    CE marking. • The authorized representative in the EU The authorized representative in the EU is shown below. Name: Mitsubishi Electric Europe B.V. Address: Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany  EMC Directive We declare that this product conforms with the EMC Directive when installed in a compatible inverter, and affix the CE marking on the packaging plate.

  • Page 49: Appendix 2 Instructions For Eac

    • Authorized sales representative (importer) in the CU area The authorized sales representative (importer) in the CU area is shown below. Name: Mitsubishi Electric Turkey A.S. Head Office Address: Serifali Mahallesi Kale Sokak. No:41 34775 Umraniye, Istanbul, Turkey Phone: +90-216-969-25-00...

  • Page 50: Appendix 3 Restricted Use Of Hazardous Substances In Electronic And Electrical Products

    Appendix 3 Restricted Use of Hazardous Substances in Electronic and Electrical Products The mark of restricted use of hazardous substances in electronic and electrical products is applied to the product as follows based on the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products”...

  • Page 51: Appendix 4 Referenced Standard (Requirement Of Chinese Standardized Law)

    Appendix 4 Referenced Standard (Requirement of Chinese standardized law) This Product is designed and manufactured accordance with following Chinese standards. EMC: GB/T 12668.3 APPENDIX...

  • Page 52: Appendix 5 Regarding Directive On Waste Electrical And Electronic Equipment

    Appendix 5 Regarding Directive on Waste Electrical and Electronic Equipment This symbol mark is for EU countries only, and is according to the directive 2012/19/ EU Article 14 Information for users and Annex IX. This symbol mark means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 53: Appendix 6 Compliance With The Uk Certification Scheme

    Appendix 6 Compliance with the UK certification scheme We declare that this product conforms with the related technical requirements under UK legislation when installed in a compatible inverter, and affix the UKCA (UK Conformity Assessed) marking on the packaging plate. Approval conditions are the same as those for the EU Directives.
  • Page 54 MEMO APPENDIX...

  • Page 55: Revisions

    REVISIONS *The manual number is given on the bottom left of the back cover. Revision date *Manual number Revision Feb. 2015 IB(NA)-0600578ENG-A First edition Added • Instructions for compliance with the EU Directives • Instructions for EAC Mar. 2024 IB(NA)-0600578ENG-B •...
  • Page 56 INVERTER HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN IB(NA)-0600578ENG-B(2403) MEE Printed in Japan Specifications subject to change without notice.
