Please file and use this manual together with the service manual for Model No. ES8119, Order No.
SD0812H60CE and SD0812K60AE.
TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Exploded View and Replacement Parts List ------------ 3

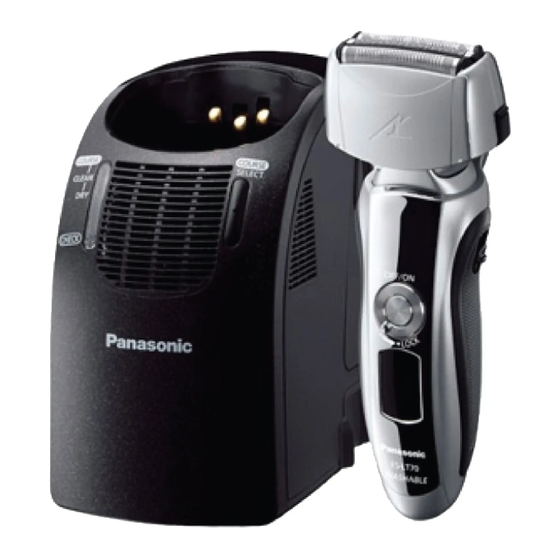

AC/Rechargeable Shaver
Model No.
Asia and China
PAGE
© Panasonic Electric Works Co., Ltd. 2010.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.
Order Number SD1006A38AE
ES-LT70
ES-LT50
ES-LT20
PAGE
Advertisement
Related Manuals for Panasonic ES-LT70
Summary of Contents for Panasonic ES-LT70
- Page 1 TABLE OF CONTENTS PAGE PAGE 1 Warning -------------------------------------------------------------- 2 2 Specifications ----------------------------------------------------- 2 3 Exploded View and Replacement Parts List ------------ 3 © Panasonic Electric Works Co., Ltd. 2010. All rights reserved. Unauthorized copying and distri- bution is a violation of law.
- Page 2 1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.
- Page 3 3 Exploded View and Replacement Parts List Model No. : ES-LT70 Exploded View for ES-LT70...
- Page 4 Model No. : ES-LT70 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-LT70 WES8116X7158 PROTECTIVE CAP WES8119S0047 OUTER FOIL FRAME WES9087N OUTER FOIL 1 (only for China) WES9087E OUTER FOIL WES9068N INNER BLADE 1ST (only for China)
- Page 5 Model No. : ES-LT50 Exploded View for ES-LT50...
- Page 6 Model No. : ES-LT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-LT50 WES8116X7158 PROTECTIVE CAP WESLT50S0047 OUTER FOIL FRAME WES9087N OUTER FOIL 1 (only for China) WES9087E OUTER FOIL WES9068N INNER BLADE 1ST (only for China) WES9068E INNER BLADE WESLT50L1007...
- Page 7 Model No. : ES-LT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks WESLT20S8100 OPERATING INSTRUCTIONS 1 (for Taiwan)
- Page 8 Model No. : ES-LT20 Exploded View for ES-LT20...
- Page 9 Model No. : ES-LT20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-LT20 WES8116X7158 PROTECTIVE CAP WES8119S0047 OUTER FOIL FRAME WES9087N OUTER FOIL 1 (only for China) WES9087E OUTER FOIL WES9068N INNER BLADE 1ST (only for China) WES9068E INNER BLADE WESLT20L1007...
