FUEL TANK

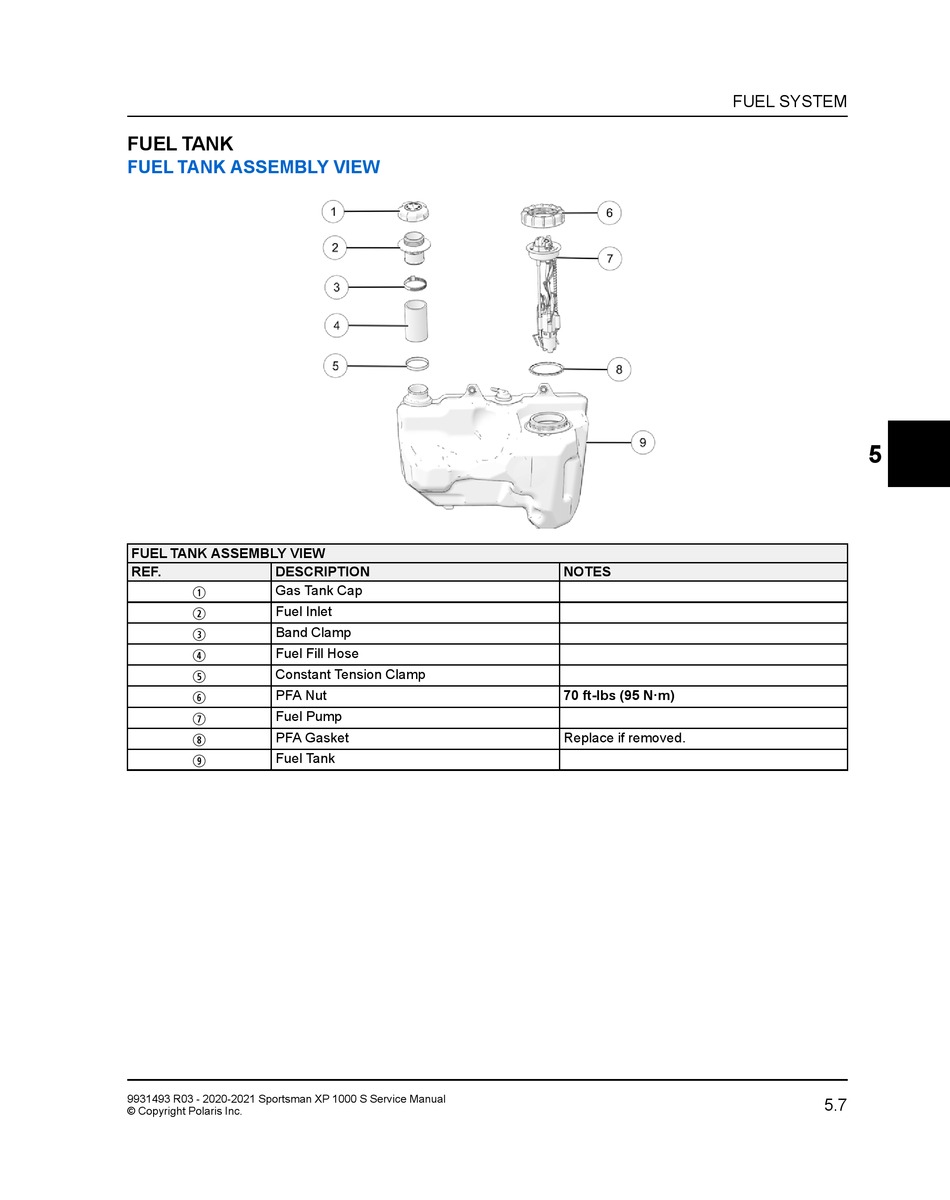

FUEL TANK ASSEMBLY VIEW

FUEL TANK ASSEMBLY VIEW
REF. DESCRIPTION
q Gas Tank Cap
w Fuel Inlet
e Band Clamp
r Fuel Fill Hose
t Constant Tension Clamp
PFA Nut
y
u Fuel Pump
i PFA Gasket
o Fuel Tank
9931493 R03 - 2020-2021 Sportsman XP 1000 S Service Manual
© Copyright Polaris Inc.
FUEL SYSTEM
NOTES
70 ft-lbs (95 N·m)
Replace if removed.
5
5.7
