baxter HomeChoice Manual

Table of Contents

Quick Links

Download this manual

HomeChoice

HomeChoice PRO

APD Systems

Patient At-Home Guide

Creating a Better World of Care for Renal Patients

Table of Contents

Need help?

Do you have a question about the HomeChoice and is the answer not in the manual?

Questions and answers

Baby Pulepule

February 4, 2025

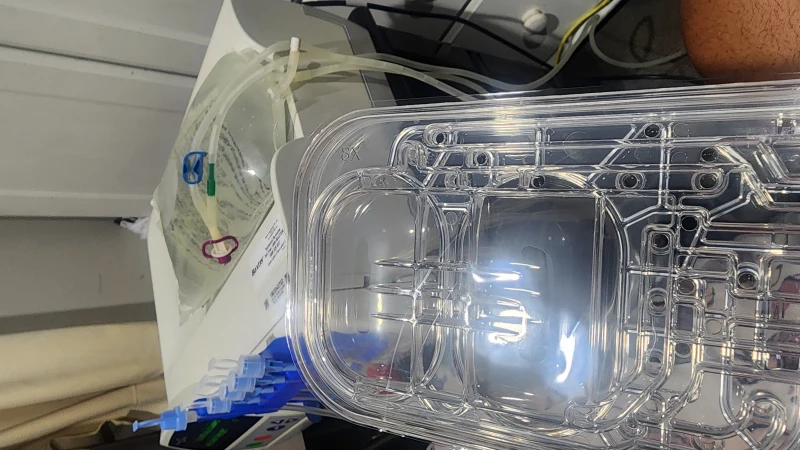

Could the sets be damaged from travelling in suitcase the is packed tightly? I can see there are marks from hoses on the set that gets loaded into APD machine. Machine continues to display close all clamps reload set 149 error. Help please.

1 comments:

Mr. Anderson

February 10, 2025

The Baxter HomeChoice sets contain a cassette and tubing that must remain undamaged to ensure safe and effective use. The manual warns that damaged sets can cause contamination, leading to peritonitis. If the sets are packed tightly in a suitcase without protection, they could develop cracks or other damage, which could compromise their safety. Therefore, traveling with them in a tightly packed suitcase could pose a risk. It is advisable to pack them securely to prevent damage.

This answer is automatically generated

Micheline Valiquette

March 6, 2025

Je voudrais avoir le manuel d’instruction de homechoice Claria

1 comments:

Mr. Anderson

March 6, 2025

You can find the instruction manual for the Baxter HomeChoice Claria on ManualsLibraryy at the following URL: [https://manualslibraryy.com/baxter-homechoice-pro-apd-system-user-manual/](https://manualslibraryy.com/baxter-homechoice-pro-apd-system-user-manual/).

This answer is automatically generated

irene

March 9, 2025

whats is system error 2197 and how to prevent it

Danielw

March 9, 2025

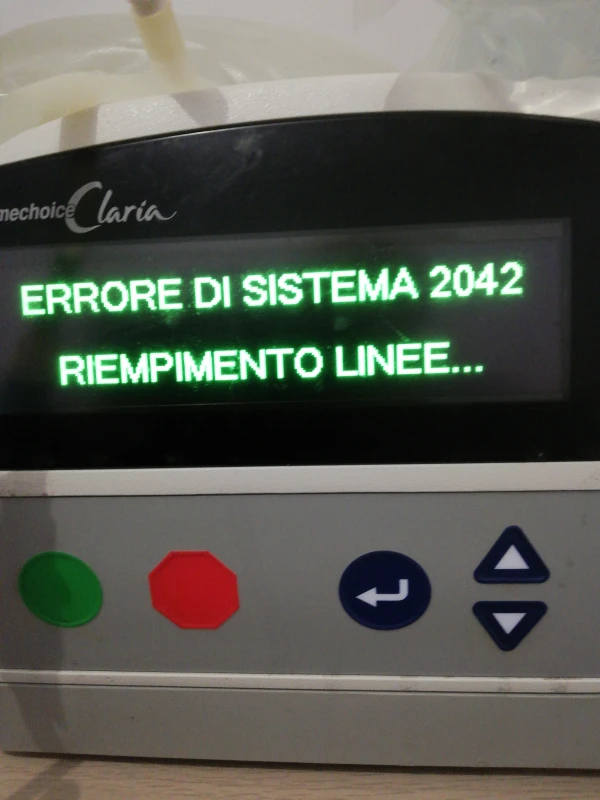

Errore 2042

1 comments:

Mr. Anderson

March 9, 2025

Error 2042 on the Baxter HomeChoice APD System is a System Error. If it occurs before the user is connected, it should be treated as a Reload Set Alarm. Otherwise, it should be treated as a System Error. The user should follow the instructions in section 18.3.5, Load a New Set, on page 18-12.

This answer is automatically generated

miguel ramirez

March 27, 2025

What must I do if my PD machine is unable to connect to the network? Is there a way to bypass this step since it keeps me from going further?

1 comments:

Mr. Anderson

March 27, 2025

Check the modem cable and ensure it is properly connected. Verify that the power cord is securely attached. Avoid placing the machine next to or stacked with other electrical equipment, as this may cause interference. If the issue persists, monitor the cycler for normal operation and contact your dialysis center for further assistance.

This answer is automatically generated

Chyna H.

March 31, 2025

Why do I get slow flow patient alarms in the middle of my treatment? No problems draining or filling the whole night until drain/fill 4. No the lines aren’t kinked, no I dont have fibrin, no the bags aren’t disconnected. And it always happens on #4

1 comments:

Mr. Anderson

March 31, 2025

Slow flow patient alarms during treatment with the Baxter HomeChoice system can occur due to a very slow flow rate. This may be caused by:

- A partial kink in the patient line
- Closed clamps
- Fibrin blockage
- Disconnected or empty solution bags

These issues reduce flow, affecting Dwell Time and overall dialysis effectiveness.

This answer is automatically generated

Grant Anstess

April 5, 2025

I need to bypass initial drain

1 comments:

Mr. Anderson

April 5, 2025

To bypass the Initial Drain on the Baxter HomeChoice:

1. Contact your dialysis center first to confirm it is safe to bypass.
2. Change your position or sit up to help drain completely before bypassing.
3. If fluid remains or IIPV (Increased Intraperitoneal Volume) is suspected, press STOP, then press the arrow (▲) and perform a Manual Drain.
4. To bypass:
- Press the arrow (▲) until "BYPASS" appears.
- Press ENTER to confirm bypass.

Note: When you bypass, the system assumes your abdomen is empty and delivers the full prescribed Fill Volume. Monitor for symptoms of IIPV.

This answer is automatically generated

vanessa

April 13, 2025

can i connect an ultraset L5C4366 to my transfer set to perform a manual drain

Francesco

April 28, 2025

I will travel by flight and airline requested type battery and how many ampere , I checked by manual but not found

Summary of Contents for baxter HomeChoice

Page 1 HomeChoice HomeChoice PRO APD Systems Patient At-Home Guide Creating a Better World of Care for Renal Patients...
Page 2 The HomeChoice and HomeChoice PRO APD Systems Patient At-Home Guide Document Number 07-19-61-244 October 2, 2009...
Page 3 Baxter, HomeChoice, UltraBag, MiniCap, FlexiCap, OptiChoice, Dianeal, and Extraneal are trademarks of Baxter International Inc. Copyright 2009 Baxter Healthcare Corporation. All rights reserved. HomeChoice APD Systems Patient At-Home Guide October 2, 2009 07-19-61-244...
Page 4: Table Of Contents
Introduction to HomeChoice APD Systems ........
Page 5 The HomeChoice PRO APD System Cycler ......5-8 5.5.2 The HomeChoice APD System Cycler ......5-10 5.5.3 Control Panel Buttons .
Page 6 I-Drain Alarm ..........10-9 07-19-61-244 October 2, 2009 HomeChoice APD Systems Patient At-Home Guide...
Page 7 Turn On Your HomeChoice APD System ........
Page 8 Preparing the Cycler for Return to Baxter ........
Page 9 Determining Maximum Fill Volume ........19-14 HomeChoice APD Systems Patient At-Home Guide October 2, 2009...
Page 10 End Therapy ............. . 20-19 Index 07-19-61-244 October 2, 2009 HomeChoice APD Systems Patient At-Home Guide...
Page 11 Table of Contents viii HomeChoice APD Systems Patient At-Home Guide October 2, 2009 07-19-61-244...
Page 12: Glossary
Section Glossary...
Page 13: Terms Used In This Guide
The practice of cleanliness in handling items associated with your therapy. It means you should put on a face mask and thoroughly wash and dry your hands every time you connect or disconnect. 07-19-61-244 October 2, 2009 HomeChoice APD Systems Patient At-Home Guide...
