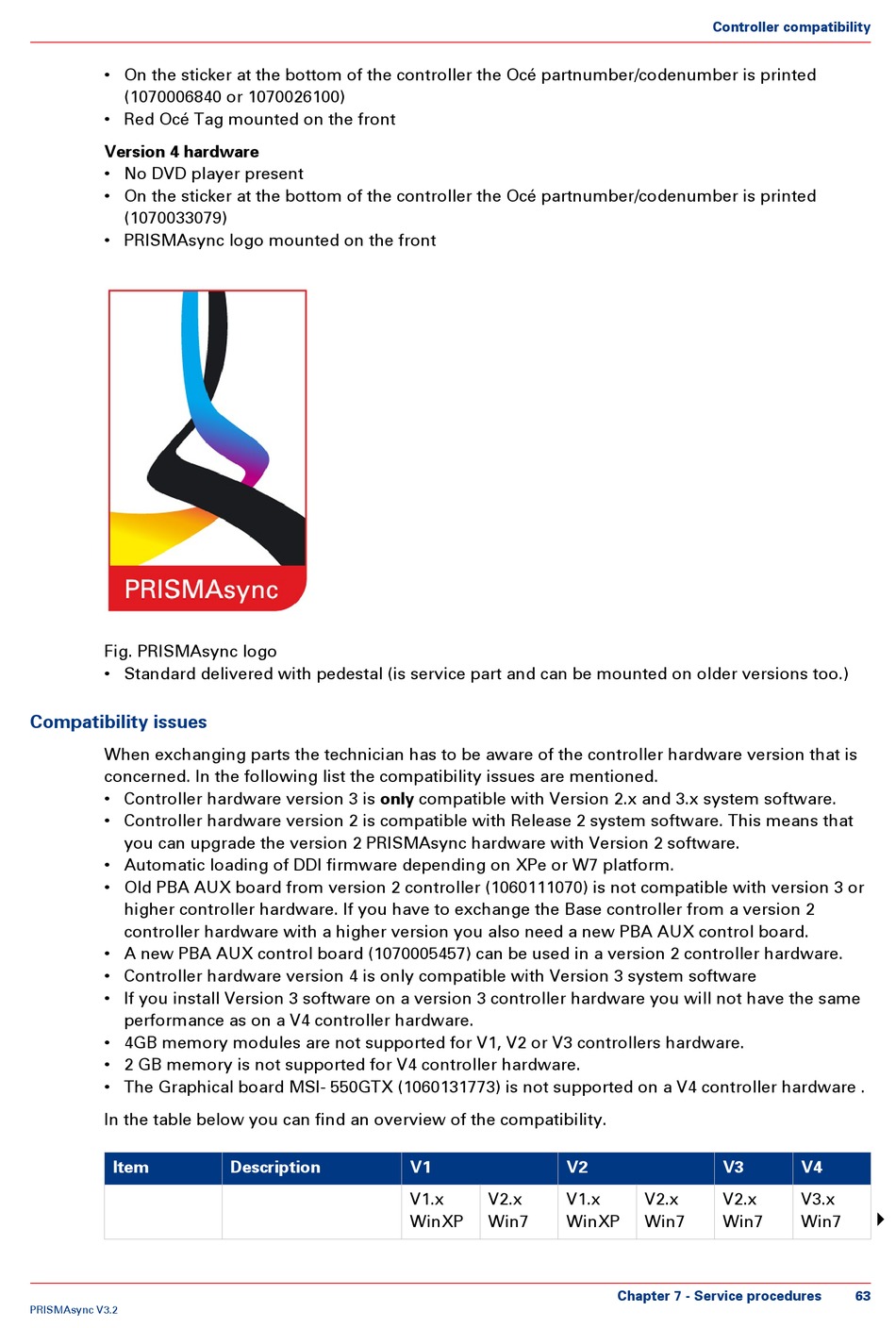

Canon PRISMAsync v3.2 Technical & Service Manual page 63

• On the sticker at the bottom of the controller the Océ partnumber/codenumber is printed
(1070006840 or 1070026100)
• Red Océ Tag mounted on the front
Version 4 hardware
• No DVD player present
• On the sticker at the bottom of the controller the Océ partnumber/codenumber is printed
(1070033079)
• PRISMAsync logo mounted on the front
Fig. PRISMAsync logo
• Standard delivered with pedestal (is service part and can be mounted on older versions too.)
Compatibility issues
When exchanging parts the technician has to be aware of the controller hardware version that is
concerned. In the following list the compatibility issues are mentioned.
• Controller hardware version 3 is only compatible with Version 2.x and 3.x system software.
• Controller hardware version 2 is compatible with Release 2 system software. This means that
you can upgrade the version 2 PRISMAsync hardware with Version 2 software.
• Automatic loading of DDI firmware depending on XPe or W7 platform.
• Old PBA AUX board from version 2 controller (1060111070) is not compatible with version 3 or
higher controller hardware. If you have to exchange the Base controller from a version 2
controller hardware with a higher version you also need a new PBA AUX control board.
• A new PBA AUX control board (1070005457) can be used in a version 2 controller hardware.
• Controller hardware version 4 is only compatible with Version 3 system software
• If you install Version 3 software on a version 3 controller hardware you will not have the same
performance as on a V4 controller hardware.
• 4GB memory modules are not supported for V1, V2 or V3 controllers hardware.
• 2 GB memory is not supported for V4 controller hardware.
• The Graphical board MSI- 550GTX (1060131773) is not supported on a V4 controller hardware .
In the table below you can find an overview of the compatibility.
Item
PRISMAsync V3.2
Description V1 V2
V1.x V2.x V1.x
WinXP Win7 WinXP
Controller compatibility
V3
V2.x V2.x
Win7 Win7
Chapter 7 - Service procedures
V4
V3.x
4
Win7
