G 1xxx/G 2xxx
3.6

G x47x (Optima Full-Size with Incognito)

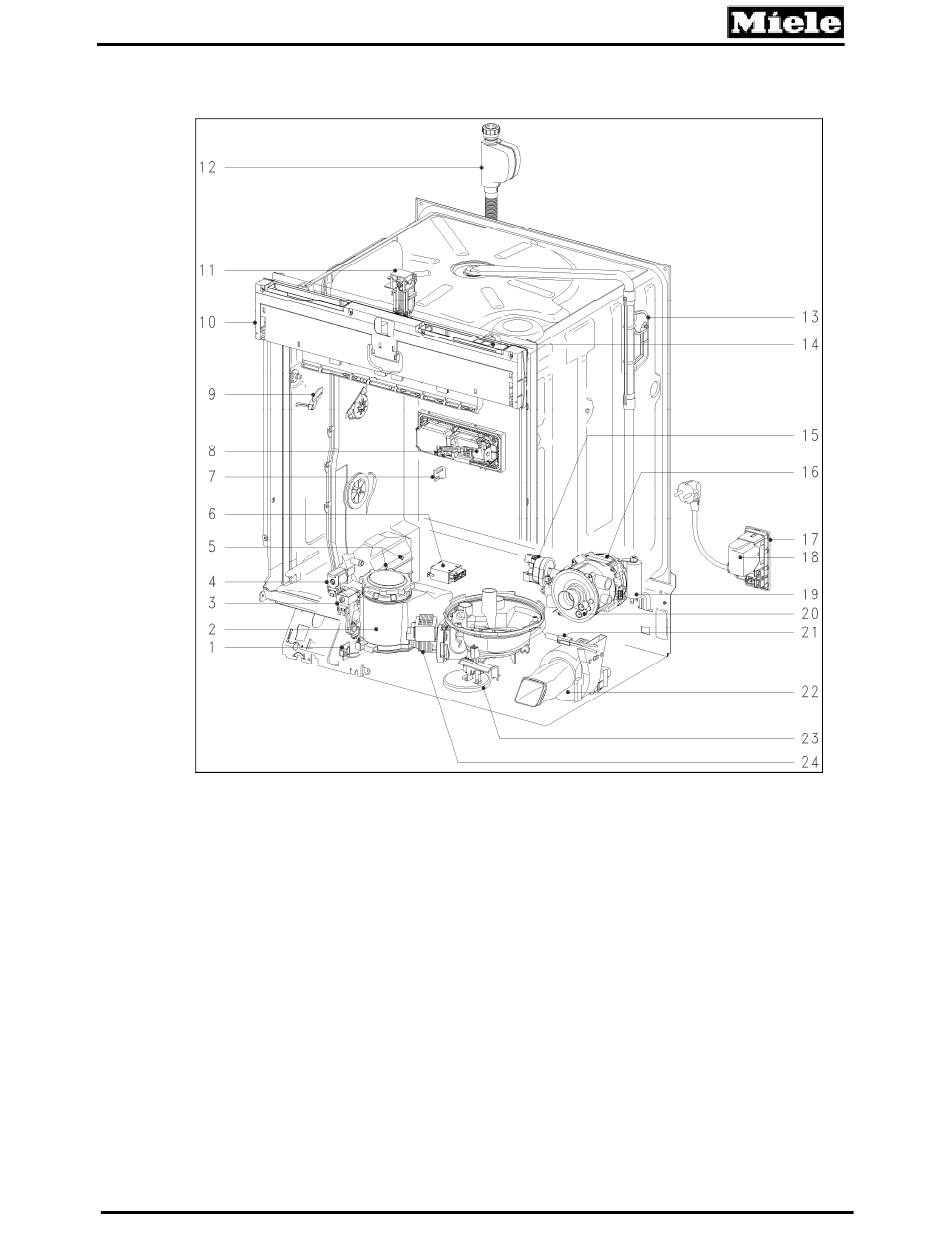

Figure D-25: G x47x Component Layout

1 Salt float switch, B8/2
2 Salt container
3
Reactivation solenoid, Y38
4 Wash-water hardness solenoid, Y5
5 Sensor softener, 10N1
6 Heater relay, K1/1
7 Rinse aid float switch, B8/1
8 Combination dispenser solenoid, Y50
9 Flow meter, B3/4
10 Electronic, 1N1
11 Door contact switch, S24
12 Water intake solenoid, Y2
13 Turbidity sensor, B3/10
14 Main switch, S2
15
Heater pressure switch, B1/13
16 Circulation pump (MPEH), M6
17 Terminal block, X3/1
18 Interference suppression, Z1 or Z2
19 Circulation pump capacitor, C6
20 Heater, R1
21 Temperature sensor (NTC), R30
22 Fan, M2
23 Overflow float switch, B8/3
24 Drain pump, M8
37
