Automatic mode: Memory card

3.18.4.1

Generating a table file in the csv format

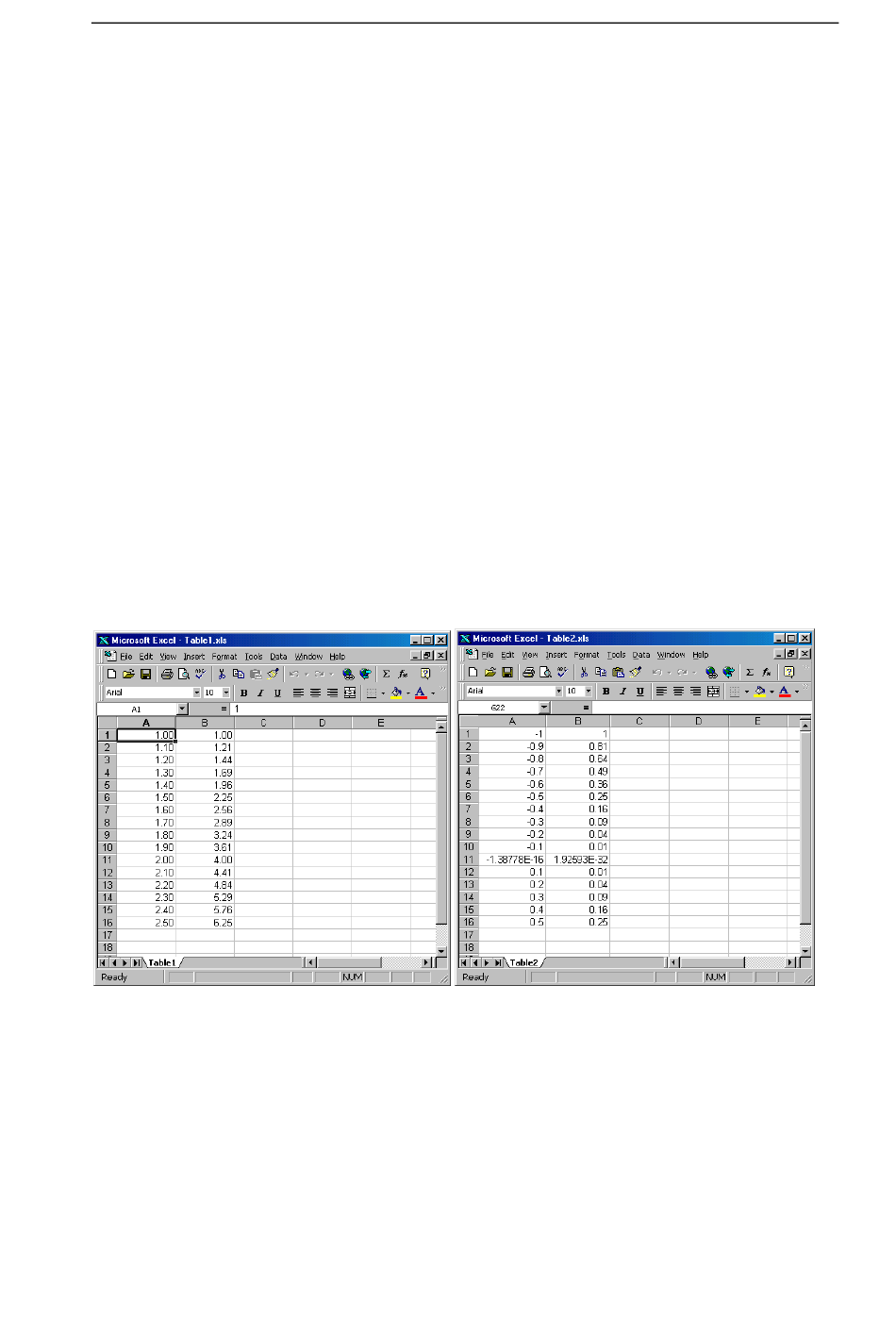

Fig. 3-87 Tables values in Excel
System- and communication configuring D7-SYS - SIMADYN D
Edition 12.2003
Table values can be combined to form components using the D7-SYS
additionalComponentBuilder (this is included in D7-SYS V5.2 plus SP1).
These components can be downloaded as additional objects on the
memory card. From there, they are read-out using the TAB or TAB_D
function blocks.
One or several table files are imported in the D7-SYS
additionalComponentBuilder, which then combines these files to form a
component file (download file), which can then be downloaded onto the
memory card.
The D7-SYS additionalComponentBuilder (aCB) does not check the
contents of the files. The tables are an exception to this rule. The
contents of these table files are checked. If the table file has an
erroneous structure, then aCB immediately flags this.
The procedure from generating a table file up to configuring the function
blocks is explained in the following sections using an example.
The table values are generated as required using a table calculation
program (e.g. Excel).
