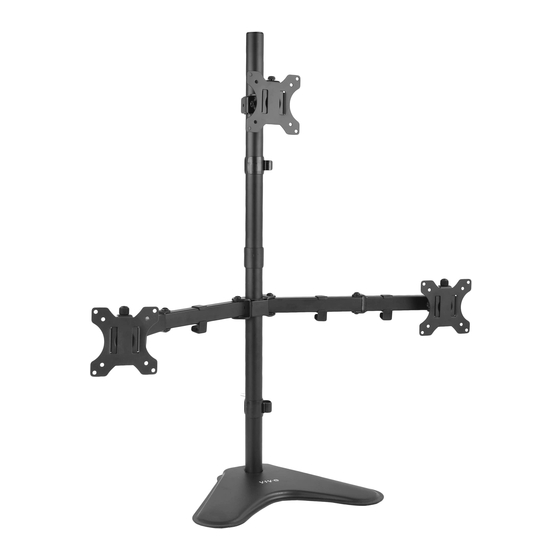

Triple Monitor Desk Stand
Instruction Manual
SKU: STAND-V003E
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v003e
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V003E and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V003E

  • Page 1 Triple Monitor Desk Stand Instruction Manual SKU: STAND-V003E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v003e help@vivo-us.com www.vivo-us.com 309-278-5303...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 TOOLS NEEDED 22 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (10 kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach pole (E) into the bottom of the base (D). Use the Allen wrench (N) to tighten the screws (K). STEP 2 Slide one pole clip (H) on the pole (E).
  • Page 4 STEP 3 Screw pole connector (G) to pole (E) and then add pole (F). Use Allen wrench (M) to tighten down the grub screws on the pole connector. STEP 4 Slide the single monitor bracket (B) onto the pole and secure at desired height.
  • Page 5 STEP 5 OPTION A: Flat Back Monitor For flat back monitor, install VESA plate (A) to monitor using bolts (M-A) or (M-C) and washers (M-E). M- E M- A M- C OPTION B: Curved Back Monitor For curved back monitor, align spacers (M-F) with mounting holes in monitor and secure VESA plate (A) to monitor using screws (M-B or M-D) and washers (M-E).
  • Page 6 STEP 7 Add parts (J) and (I) to secure the monitors. Use the built-in adjustment screws on the brackets to align your monitors. For the single bracket, add screw (L) to secure it. STEP 8 Route cables through cable management clips.
  • Page 7 STEP 9 Place Allen wrenches into slots on clips for easy access. STEP 10 Do not move monitors past center of gravity. This could result in tipping. Adjust as Desired +45 ° ±180 ° -45° +45 ° ±180 ° -45° +45 °...
  • Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
