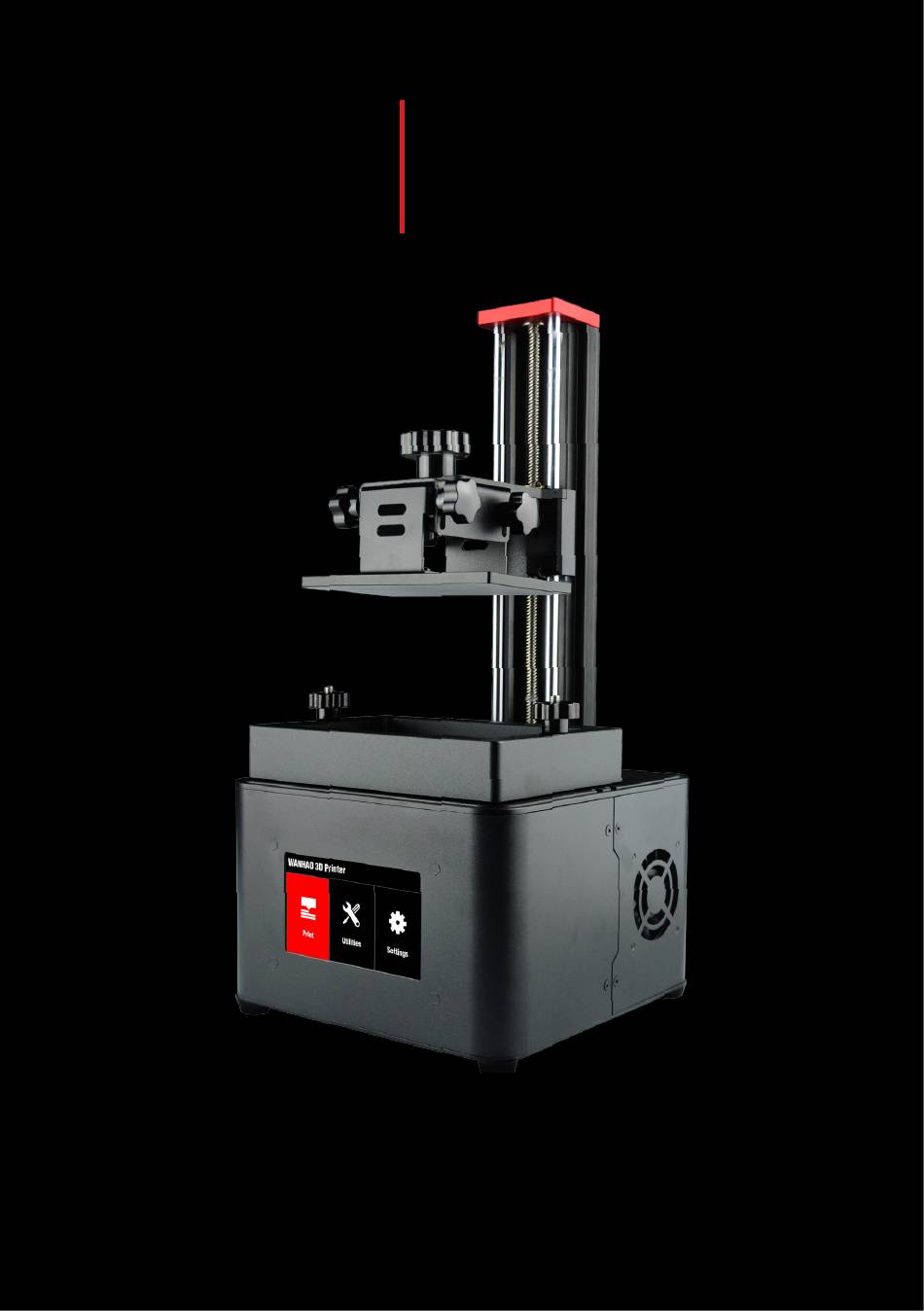

- Page 1 2018 7 Plus Duplicator WANHAO USER MANUAL High Resolution Resin 3D Printer...
-
Page 3: Warranty Details
1200 hours. You may need to purchase and replace it after 1200 hours. Printing with materials other than WANHAO resin which are different from those recommended on the website www.wanhao3dprinter.com,may cause result in damage the printer or bad printing quality. -
Page 4: Steps To Srart Printing
3 Steps to srart printing STEP1. STEP2. Click LCD to ensure Click level and follow correct projection image instruction to level the printing plateform STEP3. Home Z axis Start printing Visual printing percentage Addition printing choice, enable you to cancel printing... -
Page 5: Warranty Note
If you experience any issues with this product, or it’s performance is not what you had expected, please contact us at WANHAO before returning the item to the store. It is likely that we can resolve any problems for you via phone or email. -
Page 6: Technical Specifcations
Internal 110V or 250V (Auto Switch), 50/60Hz, 4.0A (Input), and Uses Standard IEC Cable Typical Application •A perfect printer for educators who intend to use the printers in technical education. •Great printer for DIY Hobbyist. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com... -
Page 7: Product Overview
5. Double Rail Anti Wobble 2. Aluminum Super Flat Build Plate Guide system 3. Vat Locking Screw 6. Super Flat, Re-usable Vat 7. Triple Cooling Fan 4. LCD Touching Screen AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com... - Page 8 Product Overview 9. Aluminum Vertical Beam 12. USB Socket 10. photoelectricity End 13. Plug Socket Stop Switch 14. Power Switch 11. Vent Holes AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
-
Page 9: Safety Instructions
Before you get started, please read these important safety instructions. CAUTION : The WANHAO 3D Printer includes moving parts that can cause injury. Never reach inside of the WANHAO 3D Printer while it is in operation, and allow time for the printer to cool down after operation. -
Page 10: The Principle Behind Your Printer
The energy used by Duplicator 7 Plus printers is again an order of magnitude lower than used in comparable systems. This is good for your energy bills and the ecology, but there is a huge performance advantage in that there is no unnecessary energy created. -
Page 11: Electrical Power
- Keep the printer out of the reach of small children. Disposal instructions Do not throw this electronic device into the waste when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle or return to WANHAO for recycling. AFTER SALES SUPPORT... -
Page 12: Useful Advice
The printer should be operated on a stable and level surface, preferably away from direct ambient light and with sufficient space to be able to open doors The box contains Wanhao D7 Plus LCD printer with black hood and platform Power cable cord VAT with film... -
Page 13: Inside D7 Plus
D7 Plus. 2. Add the file by clicking ‘+’ , then clike the file you wish to print and then tick the to confirm. 3. Click to print the file. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com... - Page 14 Power Off: Power off the box (This does not power of the printer) Click to check if the UV light is on and the WANHAO logo is on the screen or not. Level Guidance of leveling and Z homing at the same time.
- Page 15 You are able to move the building plate manually Print Choose the file from USB and click on the tick (ok). Press on Play and print starts. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
- Page 16 Setting:Box info & specification Reset: You Can reset D7 Plus and start the operation again. Power Off:You can shut down D7 Plus. This will not power off the printer. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
-
Page 17: Download And Install Software
2 . You need to make an account and register in the software. Or if you had one just login into your account. You need a License Key that you can active the Slicer. After inputting the License key Click on Active a License. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com... -
Page 18: Software Operation
Layer Thickness. The Movable picture on the right top of the Resin Settings Windows is a good guide of understanding how you can set your Life and sequence section. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com... - Page 19 3. In Supports you can add supports to your model Automatically and Manually. 4. In Preview menu you can See the Model in different ways the the software gives you few options for that. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
- Page 20 5. When you Model is ready Click on .cws and save the model. Software starts to Render and Generate Gcode of your model. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
- Page 21 In Object menu you can Select and visible or invisible the model. This is very useful tool in case you have few models in the platform and you want to analyze other models. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
- Page 22 ‘Scale’ view to enter select the model you want to in a new scaler value. work with, and use the X/Y/ Z +/- buttons to rotate the model by your specified degrees. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
- Page 23 In supports section you can add supports to your model Manually and Automatically. You can adjust the settings in this section based on the model and your preference. You are also able to add Brace to your supports. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
- Page 24 If you hollow your model software also allows you to make a hole into your model. It is recommended that make the hole somewhere that is no visible after printing process is finished. AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com...
-
Page 26: Repair And Refurbished Goods Or Parts Notice
Please telephone us on 86-571-23290996 or write to us at: WANHAO Precision Casting Co.,Ltd 77, RENMING ROAD, JINHUA, CHINA WANHAO Help Desk 86-571-23290996 (Operating Hours: Mon - Sat; 8:00am - 5:00pm) support@wanhao3dprinter.com www.wanhao3dprinter.com AFTER SALES SUPPORT 86-571-23290996 Model : Duplicator 7 Plus support@wanhao3dprinter.com... - Page 28 REV2.0...
