Analyzer Display

Analyzer Display

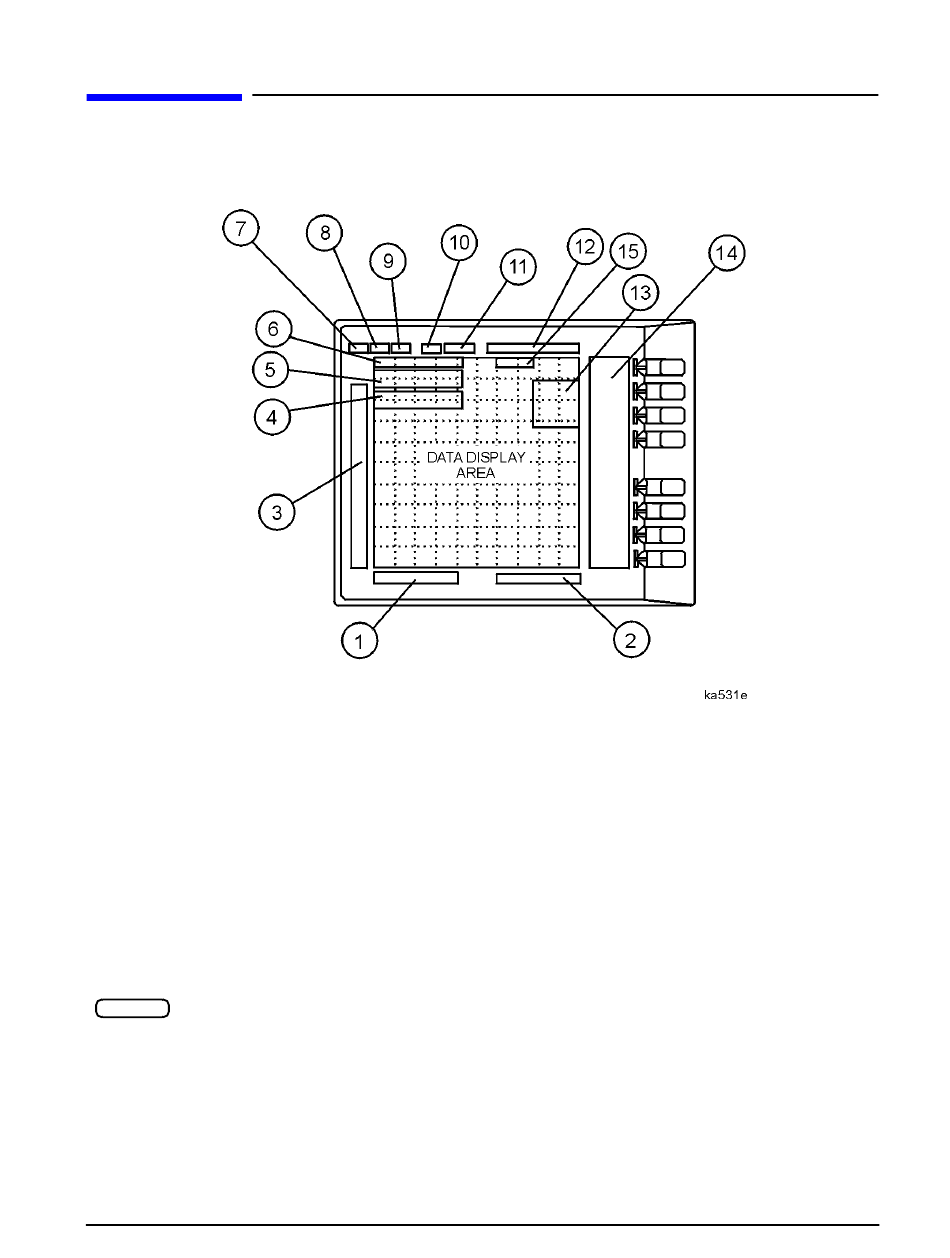

Figure 3-3 Analyzer Display (Single Channel, Cartesian Format)
The analyzer display shows various measurement information:
• The grid where the analyzer plots the measurement data.
• The currently selected measurement parameters.
• The measurement data traces.
Figure 3-3 illustrates the locations of the different information labels described below.
In addition to the full-screen display shown in the illustration above, multi-graticule and
multi-channel displays are available, as described in the "Using Instrument Functions"
chapter of the user's guide.
Several display formats are available for different measurements, as described under
" " in Chapter 5 , "Hardkey/Softkey Reference."
Format
