6.4 Connecting to the computer

45
There are three ways to connect the wireless router to the computer
system.
• Direct Personal Computer Connection, using 10/100 Base-T
Ethernet crossover cable.
• Phoneline Networking Connection.
• Network Hub Connection, using 10/100 Base-T Ethernet
interface
The router automatically activates the Ethernet or HomePNA, depending
upon which connector is used. If a cable is connected to both connectors,
the Ethernet port is activated.

6.4.1 Direct personal computer connection

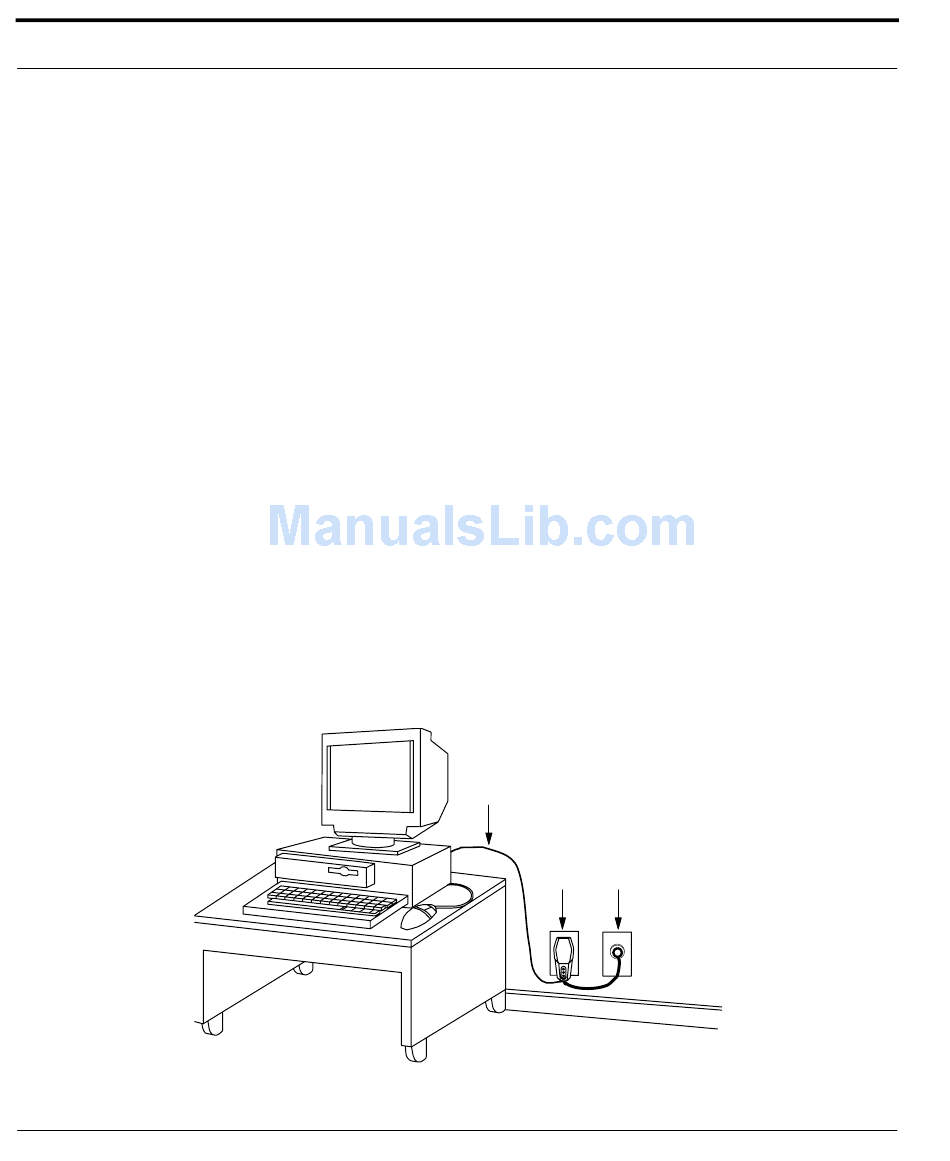

Connect an Ethernet crossover cable between the Network/Power Unit
and the personal computer Ethernet connection. Use an RJ-45 connector
at the NPU end, and the appropriate connector at the personal computer
end and connect the cables as shown below.
E t h e r n e t
m u l t i w i r e
N P U
c a b l e
