5.3 Installing the directional antenna
Nokia RoofTop™ Wireless Router Installation Guide
Assembling the directional antenna is slightly different from the integral
antenna. You use an RF cable between the antenna and the router. In
addition you need an RF cable adaptor which fits on top of the router and
connects the cable to the router. When you finish, the assembly looks like
this.

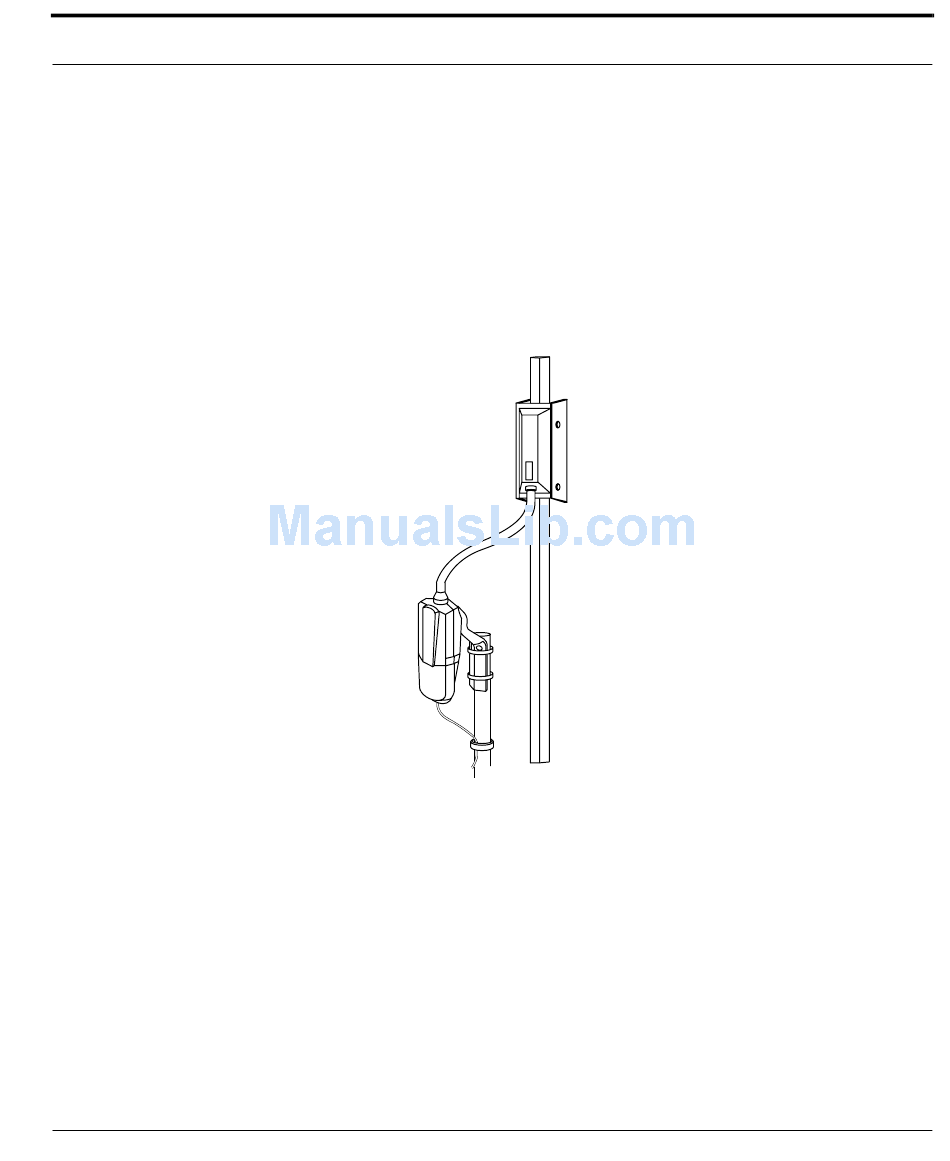

Installed router with directional antenna
To mount the antenna:
1.
Attach the antenna to the mounting on the rooftop using the mounting
clamp. Tighten the nuts to fasten the antenna securely.
Installing the directional antenna
27
