IEC 60870-5-101
Master (OPC) 3.3
16
Station Automation COM600
User's Manual

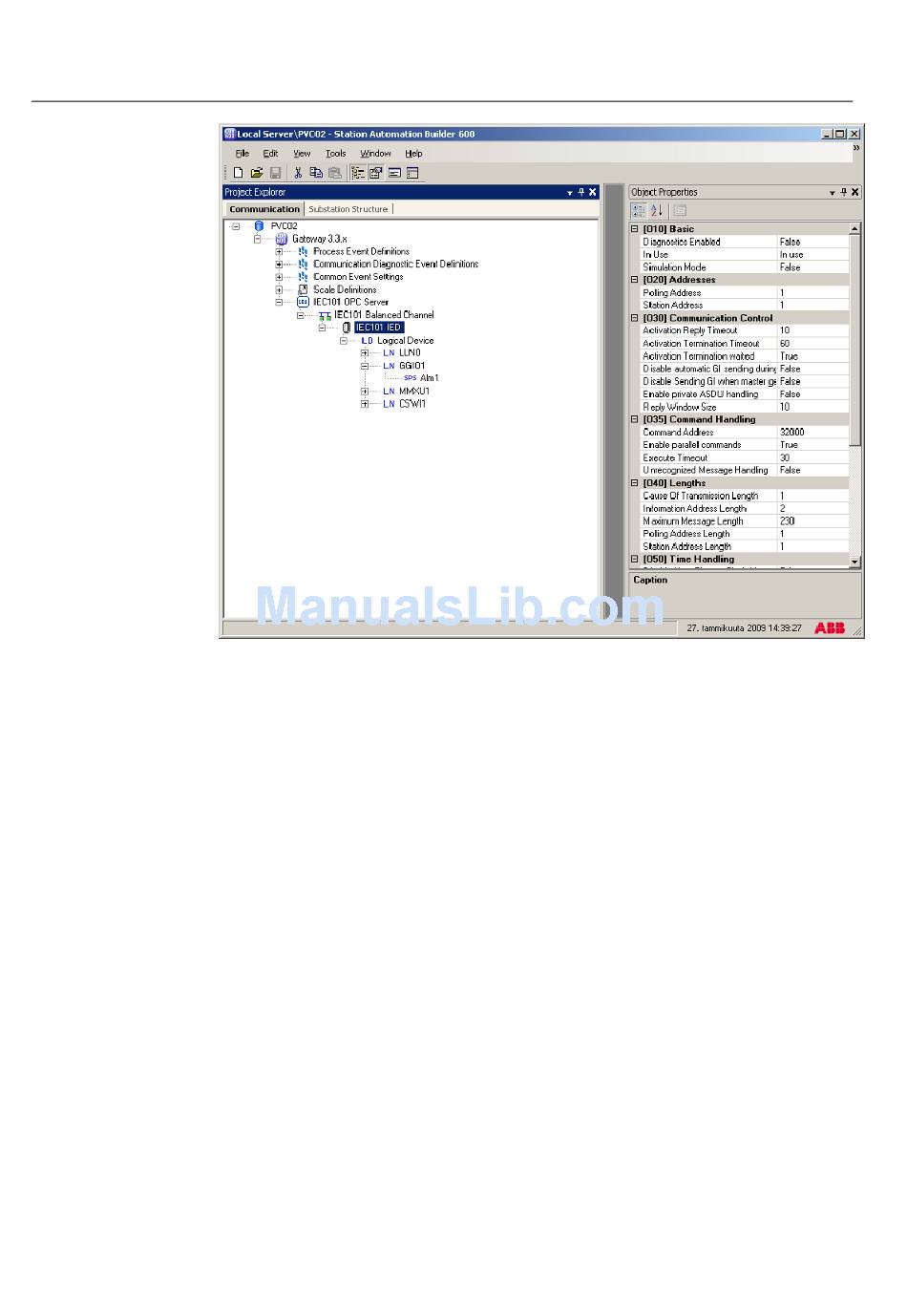

Figure 3.2-1 Example view of SAB600
The configuration work can basically be divided into two separate tasks:
1. building an object tree, and
2. configuring object properties.
First, build an object tree by adding objects to the object tree, see 3.3.1, General about
building object tree and 3.3.8, Adding data objects. Connectivity Packages for certain
Protection and Control products usually contain preconfigurations and tools to facilitate
the building of the object tree.
Figure 3.2-1 shows an example of how the object tree looks like after it has been built.
In the example tree, you can see the IEC101 OPC Server object and its child objects like
channels, devices, and data objects. Indentation is used to indicate the parent-child rela-
tionship between the objects.
After you have added the necessary objects to the object tree in the communication
structure, configure them. See 3.4.1, General about configuring objects.
Table 3.2-1 describes the objects shown in the object tree (Figure 3.2-1).
1MRS756703
