Incremental zero offset (G158)

When applying an incremental zero offset, the CNC adds it to the
absolute zero offset active at a time.
Programming
Incremental zero offset are defined by program using function G158
followed by the values of the zero offset to be applied on each axis.
To cancel the incremental zero offset, program function G158 without
axes in the block. To only cancel the incremental zero offset on
particular axes, program an incremental offset of "0" on each of those
axes.
···

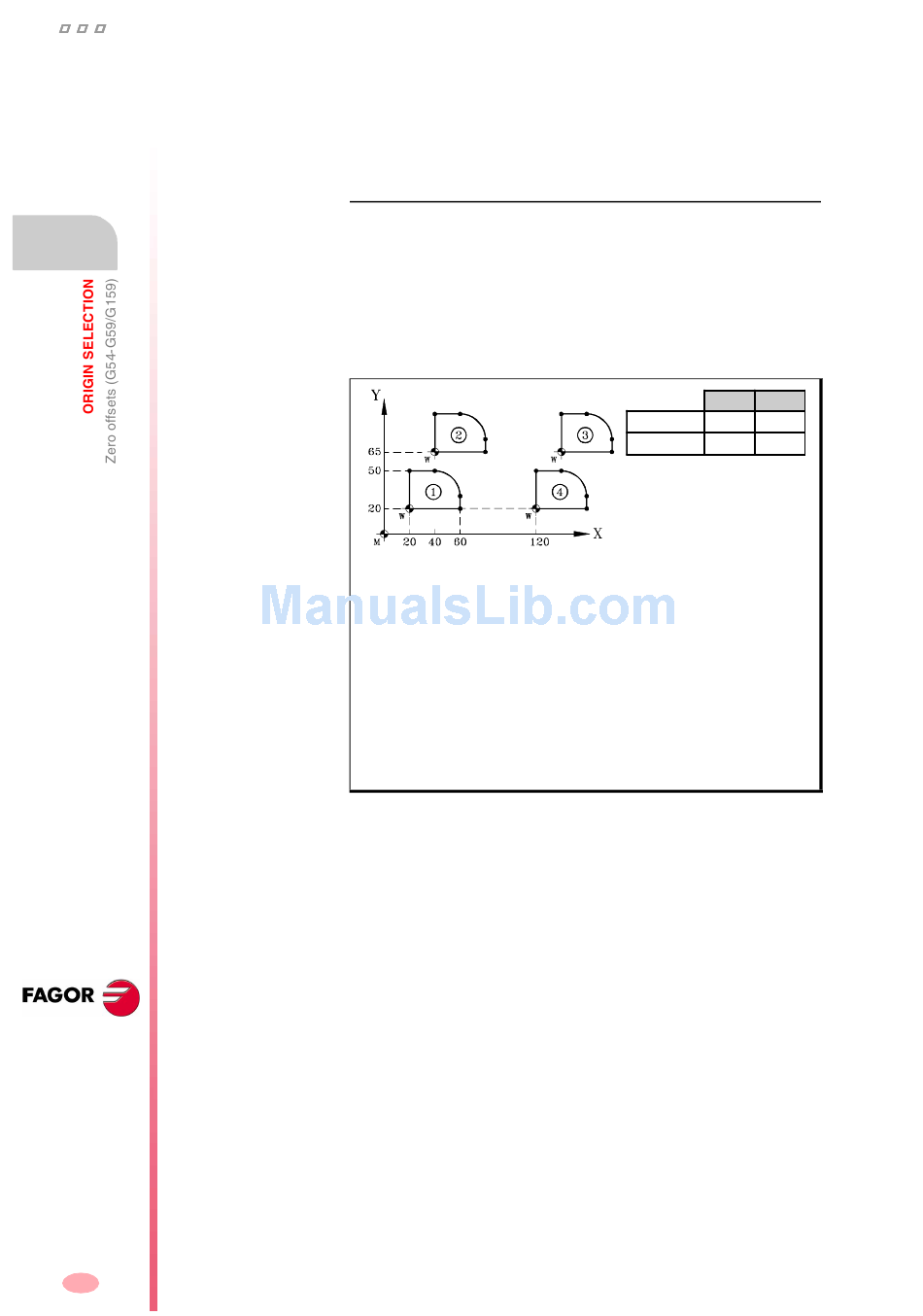

N100 G54
···
N200 G158 X20 Y45
···
N300 G55
···
N400 G158
···
Only one incremental zero may be active at a time for each axis;
therefore, applying an incremental zero offset on an axis cancels the
one that was active on that axis. The offsets on the rest of the axes
are not affected.
G54 (G159=1)
G55 (G159=2)
st
(It applies the 1 zero offset)
(Machining of profile 1)
(Apply incremental zero offset)
(Machining of profile 2)
nd
(It applies the 2 zero offset. G158 stays active)
(Machining of profile 3)
(Cancel incremental zero offset. G55 stays
active)
(Machining of profile 4)
X Y
20 20
120 20
