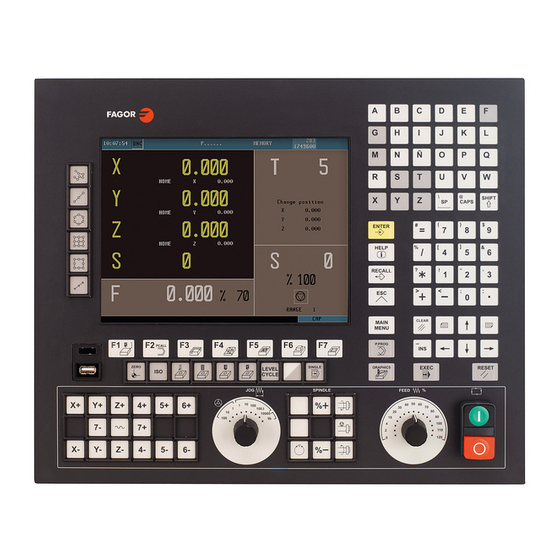

Fagor CNC 8055 Manual
Hide thumbs
Also See for CNC 8055:
- Operating manual (256 pages) ,
- Manual (166 pages) ,
- Manual (114 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Fagor CNC 8055
Summary of Contents for Fagor CNC 8055
- Page 1 8055 Educational Ref. 1107...
- Page 3 CNC may be executed on a machine that has a Fagor CNC. Via Ethernet, it is also possible to communicate one or several educational CNC-s with a PC and with a Fagor CNC so, from the PC and using WinDNC it is possible to control or display all the educational CNC's.
-
Page 4: Power Supply
Educational CNC Connectors and connection Power supply A universal 24 V DC power supply is provided together with these support pieces. This power supply is attached to the side support of the CNC. Once the three pieces of the CNC support have been assembled, connect the supply cable of the power supply to the CNC. - Page 5 CAN connector Not being used. Connection of the USB extension cable supplied by Fagor The USB extension cable with the CNC. 1. Connect the extension cable as shown in the figure while the CNC is off. Type A USB...
- Page 6 Educational CNC CNC setup Every time the CNC is turned on, it does an automatic Restore. The CNC does a Restore depending on the software version installed (mill or lathe); i.e. either from either the "backup mill-fresa" folder or from the "backup lathe-torno"...
-
Page 7: Backup Configuration
Educational CNC Safety backup. Backup - Restore Backup configuration To do a backup in any folder of the hard disk or in a pendrive, follow these steps: • Access the "Status" mode and select the "CNC / Backup" option. •... - Page 8 Educational CNC Configure the CNC inside an Ethernet network The Ethernet option permits configuring the CNC as another node within the local area network. This makes it possible to communicate with other PC's through WindDNC, for example to transfer files.
- Page 9 Educational CNC NETMASK (P25) Network mask. Possible values: Four numbers between 0 and 255 separated by dots. By default: 0.0.0.0 It requires [SHIFT]+[RESET] to validate the parameter. IPWDNC (P27) WinDNC server's IP address. The WinDNC server is the external device to connect with via DNC. This device may be a CNC, or a PC with WinDNC.
- Page 10 Educational CNC CNC support assembling sequence It is important to follow the mounting sequence. 1. Fasten the power supply is attached to the right support. 2. Fasten the right CNC support with two M4x10 screws and two washers. M4x10 screws.
- Page 11 Educational CNC 3. Fasten the left CNC support with two M4x10 screws and two washers. M4x10 screws. 4. Fasten the top lid to the CNC support with three M4x10 screws and three washers. M4x10 screws. 5. Fasten the top lid to the side supports with two M4x20 screws and two washers. M4x20 screws.
- Page 12 Educational CNC Ref.1107 ·12·...
