LEMUR TICKET PRINTERS
Operator's Manual
Lemur
Lemur-S
Lemur-2
Lemur-K
Lemur-2K
Lemur-R
RevB: 09.12.13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lemur and is the answer not in the manual?

Questions and answers

Related Manuals for Boca Systems Lemur

Summary of Contents for Boca Systems Lemur

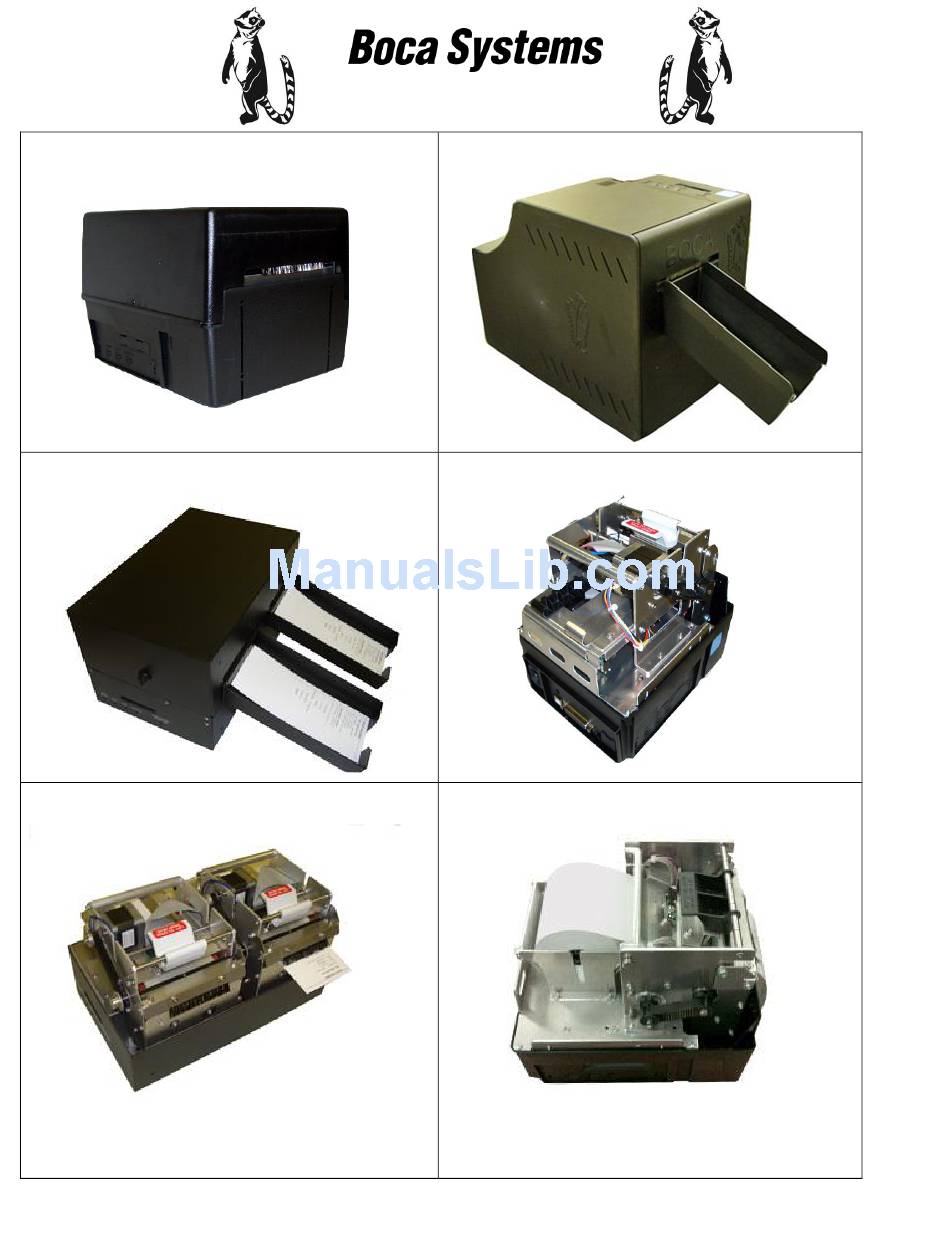

  • Page 1 LEMUR TICKET PRINTERS Operator’s Manual Lemur Lemur-S Lemur-2 Lemur-K Lemur-2K Lemur-R RevB: 09.12.13...
