GENIE C & S - SETUP & SERVICE MODES

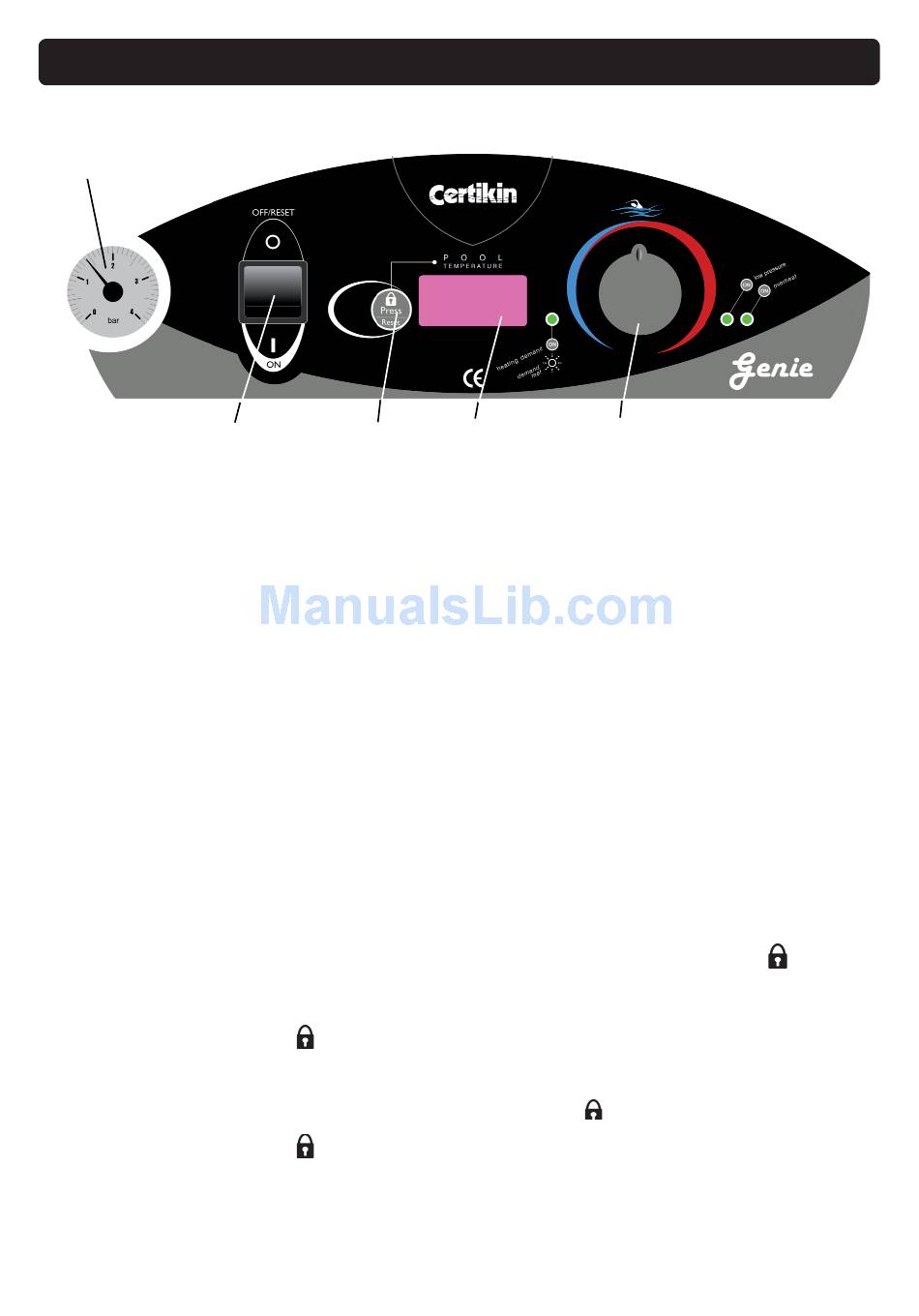

Pressure
Gauge
Fig. 9.0
On / Off
Switch
WARNING: BEFORE COMMENCING OR COMPLETING ANY ELECTRICAL WORK ON THE APPLIANCE, IT IS
RECOMMENDED THAT THE BASIC SAFETY CHECKS FOR EARTH CONTINUITY, SHORT CIRCUIT, POLAR-
ITY AND RESISTANCE TO EARTH ARE MADE. ALL WORK CARRIED OUT SHOULD FOLLOW GUIDELINES
LAID DOWN BY THE I.E.E.
Operation
The Heater requires Mains on both the Live (L) and Switched Live (SL) connection to be able to run. It is delivered
with a link between them which can be removed if a separate Heater switched live is going to be used.
To run, the Heater must have a Mains supply, Gas, Pool Pump pressure suffi cient to activate the Pressure Switch,
all safety switches closed and a pool temperature below the set point.
If all the above are correct then the Gas Ignition Control starts the Ignition sequence:
1. The Fan and internal Pump runs as a pre-purge of the Heat Exchanger
2. After a few seconds a spark is created at the electrode and the burner is lit.
3. The burner fl ame is sensed and the spark is removed.
4. The Fan speed is then changed to the required speed according to the modulation curve.
5. If it fails to light the burner the spark will stop and the Fan and internal Pump will run on as a post-purge of
the Heat Exchanger.
6. The ignition sequence will be repeated up to fi ve times, then the control will lockout and will require
a reset to start again.
Safety Controls & Lockouts
The Pool Thermostat Control indicates the actual and set temperature of the pool and also displays all the lock-
outs. The next pages detail the fault conditions, the indicators, the display and the actions required.
User Setup Mode
Turn off on the Panel Switch. Turn on with the Panel Switch whilst pressing the Lock/Reset Button.
The Control is now in User Setup Mode.
The control can now be altered by rotating the Pool Temperature Control Knob to a certain position and then
pressing the Lock/Reset button,
Example:
To change from Fahrenheit to Centigrade:
Turn Panel Switch OFF then back ON whilst pressing the Lock/Reset
Turn the Pool Temperature Control Knob until the display shows 'F'.
Press the Lock/Reset button
Switch the Panel Switch OFF then back ON again.
The Control will now display in Centigrade.
Temperature
Lock/Reset
Display
Button
then switching off. (See Fig. 9.0)
once and the display will show 'C'.
Page 9
Pool Temperature
Control Knob
button.
