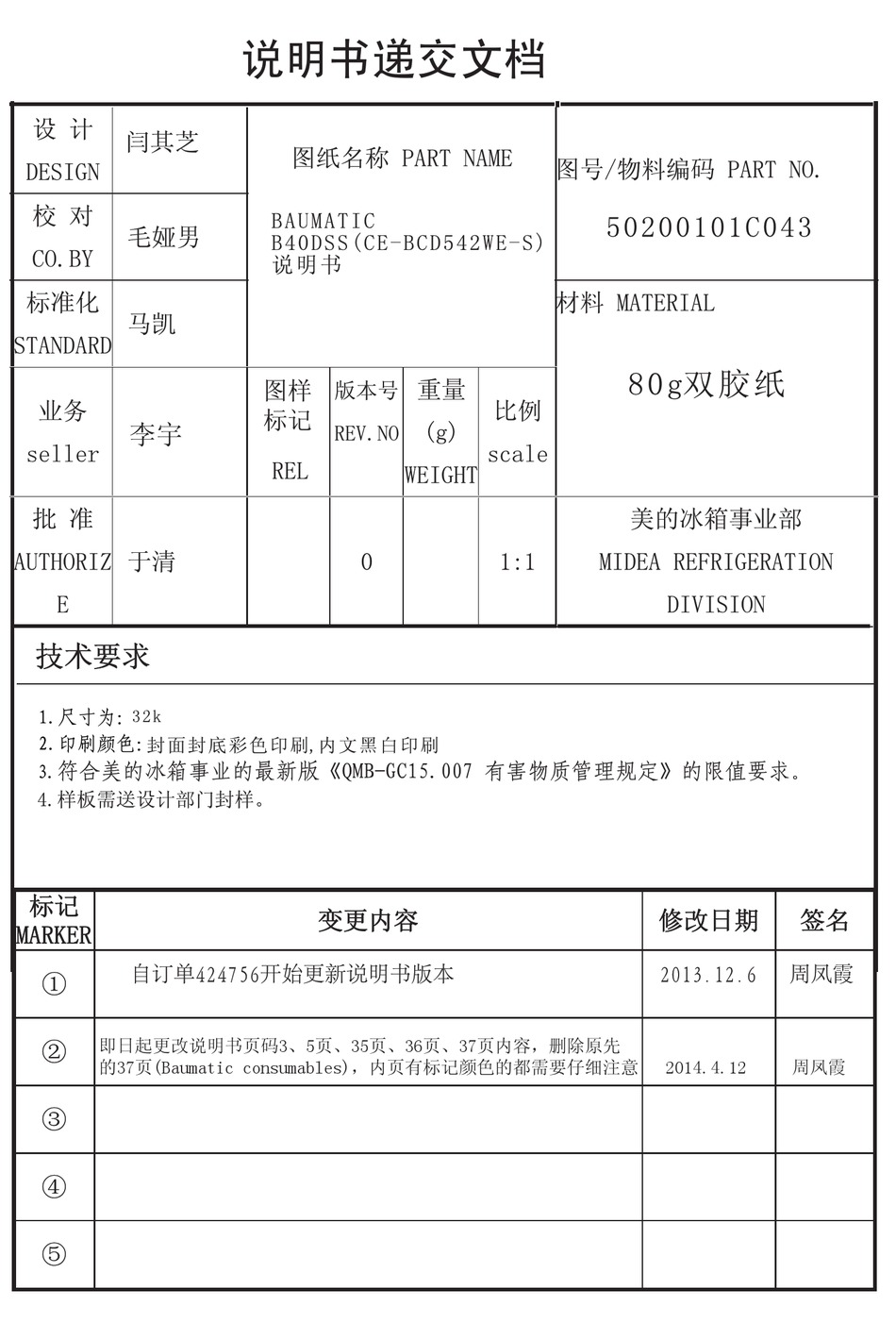

- Page 1 李宇 即日起更改说明书页码3、5页、35页、36页、37页内容，删除原先 的37页(Baumatic consumables)，内页有标记颜色的都需要仔细注意 2014.4.12 周凤霞...
- Page 2 B40DSS 4 door 570 Litre frost free fridge-freezer...
- Page 3 USER MANUAL FOR YOUR BAUMATIC B40DSS 570 Litre 4 door frost free fridge-freezer NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 4: Table Of Contents
Important safety information Specifications of your fridge freezer 7-12 Description of the appliance Product features (fridge section) 9-12 Product features (freezer section Using your Baumatic fridge freezer 13-18 Before switching on During first use Control panel 14-18 Switching on the appliance... -
Page 5: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 6: Important Safety Information
Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line. - Page 7 Do not store aerosol cans with a flammable propellant in this appliance. Service You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Baumatic Customer Care Department.
-
Page 8: Specifications Of Your Fridge Freezer
Specifications of your fridge freezer Dimensions of your appliance o Height: 1775 o Width: o Depth: 728.5 mm (excluding handles) Energy efficiency class o Energy class: Cubic capacities o Total gross/net capacity: 570/542 litres o Gross capacity (fridge/freezer): 425/145 litres o Net capacity (fridge/freezer): 422/120 litres Specifications of the appliance... -
Page 9: Description Of The Appliance
IMPORTANT: When you install your appliance it is important to bear in mind its climatic rating. In order to find out the climatic rating of your appliance, you should check the rating plate. The rating plate is located inside of the fridge section, on the left side. -
Page 10: Product Features (Fridge Section)
Description of product features (fridge) Adjustable safety glass shelves o The shelves may be placed in any of the guide slots within the interior of the appliance. They are protected from sliding out. o To remove a shelf: Take off all of the items that are stored on the shelf that you want to remove. - Page 11 o To remove the safety glass crisper cover, remove the salad crisper drawers, lift up the cover and then pull it towards you (as shown in the line drawing below). o For the storage of meat and fish, we would recommend that they are stored in a foil cover or a vinyl wrap.
- Page 12 General door racks* o The door liners hold various racks, which are suitable for storing eggs, cheese, butter, yogurt, smaller packages, tubes, cans etc. Bottle racks* o The upper middle door racks in each door should be used for storing reasonably sized bottles. o IMPORTANT: IT IS IMPORTANT THAT NONE OF THE SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.
-
Page 13: Product Features
The dairy compartments o The top racks on the fridge doors should be used to store eggs, butter, cheese, yogurts etc. IMPORTANT: You should take care not to trap your fingers when opening and shutting the cover of the dairy compartments. Description of the product features (freezer) The freezer section consists of an upper and lower drawer. -
Page 14: Using Your Baumatic Fridge Freezer
Using your Baumatic fridge freezer Before switching on o Remove all packaging materials before using the fridge freezer. This includes the foam base and all adhesive tape holding the refrigerator accessories in place both inside and outside the appliance. o Make sure that it has been installed by a suitably qualified... -
Page 15: Control Panel
Control panel The control panel is located outside the refrigerator and is used to control the fridge and freezer. Operation buttons A. Temp Zone. Use this button to select either the fridge or freezer. B. Super Cool. Use this button to select Super Cool or Super Freeze functions. -
Page 16: Switching On The Appliance
Switching on the appliance o You switch on your appliance by connecting it to your mains supply. o When first turned on the appliance will automatically set the fridge to 5°C, and the freezer to -18°C. You can set the temperature in the fridge and freezer sections manually at any time. -
Page 17: Switching On Super Cool Mode
Switching on super cool mode This setting should be used if you want to chill something quickly, it will ensure that a powerful supply of cold air enters the fridge section. o Press the ‘SUPER COOL’ button (B) on the control panel. The Super Cool icon (8) will illuminate. -
Page 18: Turning Off The Fridge Section
IMPORTANT: You should not run the appliance in energy saving mode if you want to freeze fresh food in the freezer section. Before attempting to freeze fresh food you should return the appliance to normal operation and use the fast freeze mode. Turning off the fridge section. -
Page 19: Door Open Alarm
Door left open alarm o If any door/drawer is left open for more than 90 seconds an audible alarm will sound. o When you hear the audible alarm, you should immediately check that all of the doors/draws are shut properly. o Once you have ensured the doors are closed properly press any button on the control panel and the alarm will stop. - Page 20 o Quickly perishable food should be stored at the back of the refrigerator, which is the coldest part of the appliance. o No food items should be allowed to come into contact with the back wall of the refrigerator. o Make sure that you arrange food in such a way that the door can close completely.
-
Page 21: The **** Freezer Section
The **** freezer section The freezer section is suitable for storing and freezing food. o The freezer section temperature must have already reached -18 degrees centigrade (or lower) before you attempt to store food that is already frozen or freezing fresh food. o The freezer section is only able to freeze a certain quantity of fresh food at one time. -
Page 22: Tips On Freezing
Tips on freezing o Freezer bags, polythene wraps, aluminium foil (extra thick) and special cans for frozen foods are suitable packaging for storing frozen goods in. o Tape, rubber bands or plastic clips are suitable for sealing bags and wrappings. o Before sealing suitable... -
Page 23: Defrosting Frozen Food
Defrosting frozen food o Partially thawed or defrosted foods should be used as soon as possible. o Cold air preserves the food but it does not destroy the micro organisms which rapidly activate themselves after defrosting and make foods perishable. o Partial defrosting reduces the nutritional value of food, especially fruits, vegetables and readymade meals. -
Page 24: Using The Twist Ice Maker
Using the twist ice maker o The twist ice maker has to be manually filled with water. To do this you should pull out the top drawer to allow access, or if preferred you can remove the ice maker from the drawer, and then fill it with cold, drinkable water. -
Page 25: Important User Information
Compressor noise o There will be an operating noise when the compressor is running. o After installation, the compressor may be noisier for a short period of time. Bubbling and burbling sound o This noise is emitted as the coolant flows through the pipework within the fridge. - Page 26 Cleaning and Maintenance: o Occasionally clean the condenser coils (if present) at the back of the appliance to maintain a high performance level. o Clean the door gasket with warm water or a neutral detergent that leaves no residue. A tight-sealing door gasket is critical to the efficiency of your appliance.
-
Page 27: Cleaning And Maintenance
Cleaning and maintenance WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it. o The refrigerator and freezer section should be cleaned periodically, using a solution of bicarbonate of soda and lukewarm water. - Page 28 Fridge shelves o To remove a shelf: Take off all of the items that are stored on the shelf that you want to remove. Then whilst lifting the front of the shelf, pull it forwards to unhook it from the slots at the rear of the cabinet.
-
Page 29: Replacing The Light Bulb
LED lamp your own. Please call Baumatic Customer Care Department to arrange an engineer visit. Spare washers (Circlips) – door adjustment. In your installation pack you will find two circlip washers. These are... -
Page 30: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the salad crisper drawers. -
Page 31: Positioning
o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath. Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. -
Page 32: Installation Preparation
Installation preparation IMPORTANT: A minimum of two people should complete all of the installation steps given in this manual. o Check that the appliance will easily pass through all doorways en-route to its final position. o Appliance dimensions: 1775 mm (h) x 911 mm (w) x 728.5 mm (d) (excluding door handles). - Page 33 Insert the door handle onto the double fixing screws (2). Ensure that the double fixing screws slot into the fixing screw holes in the handle. IMPORTANT: must attach both ends of a handle at the same time. Using an Allen-key, tighten the door handle side screws...
-
Page 34: Installing The Decorative Plinth
The plinth should be installed using the 3 screws as shown in the diagram below: Troubleshooting IMPORTANT: If your fridge freezer appears not to be operating properly, before contacting the Baumatic Customer Care Department, please refer to the checklist below. My fridge freezer does not appear to be working/there is no power to my appliance. - Page 35 My fridge freezer appears to be performing poorly. o Check that the appliance isn’t overloaded and that food hasn’t been packed too tightly into it. o Either the fridge or freezer temperature is not set to a low enough temperature. You should set the fridge and/or freezer temperature to a lower temperature.
