Summary of Contents for Baumatic BF550SL-W

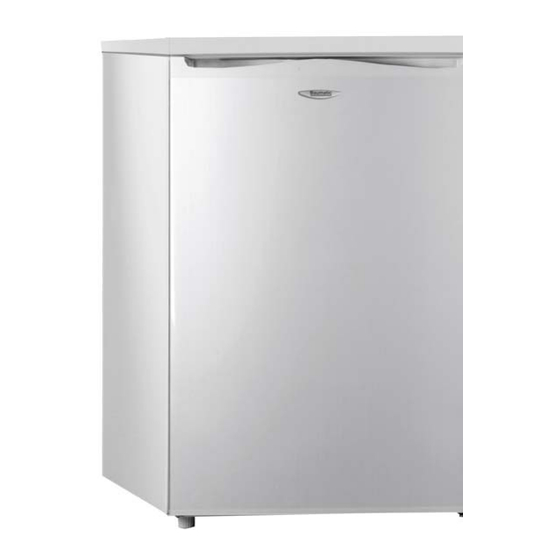

- Page 1 BF550SL-W Undercounter fridge with 4* freezer compartment...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BF550SL-W Undercounter fridge with **** freezer compartment NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
5 - 7 Specifications of your fridge + **** freezer compartment 7 Description of the appliance Description of the product features Using your Baumatic fridge 10-11 Before switching on During first use Switching on the appliance and setting the thermostat... -
Page 4: Environmental Note
Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line. - Page 6 o Do not place any objects on top of the appliance, as this may damage the table top. Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.
-
Page 7: Specifications Of Your Fridge + **** Freezer Compartment
You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Baumatic Customer Care Department. Specifications of your fridge + **** freezer compartment... -
Page 8: Description Of The Appliance
Description of the appliance 1) Top cover 2) Freezer compartment 3) Light bulb 4) Safety glass shelf / salad crisper shelf 5) Salad crisper 6) Fixed foot 7) Adjustable foot 8) Door shelves / Bottle shelf... -
Page 9: Description Of The Product Features
Description of the product features 1) Shelf o The shelf may be placed in any of the guide slots within the interior of the appliance. They are protected from sliding out. o To remove a shelf: Take off all of the items that are stored on the shelf. -
Page 10: Using Your Baumatic Fridge
Using your Baumatic fridge Before switching on o Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o After delivery, wait for eight hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle. -
Page 11: Switching On The Appliance And Setting The Thermostat
Switching on the appliance and setting the thermostat o You switch on your appliance by connecting it to your mains supply and setting the thermostat. The thermostat dial is located on the upper right hand side of the inside of the cabinet, next to the interior light. -
Page 12: Arranging And Storing Food In The Fridge Section
Arranging and storing food in the fridge section o Warm food or evaporating liquids should not be stored in your refrigerator, as this will increase the humidity inside of the appliance. o All foods should be wrapped or covered, this is particularly important if the food has a strong flavour. -
Page 13: The **** Star Freezer Compartment
o Milk bottles should have a cap on them and be stored on the bottle shelf that sits in the door. o Garlic, potatoes, onions and bananas should only be stored in a refrigerator IF they are kept in airtight containers. -
Page 14: Normal Operating Noises
defrost the compartment more frequently and increase the energy consumption of the appliance. Normal operating noises Ice cracking noise o Can be heard during the automatic defrosting process. o Can be caused by expansion and contraction within the freezer compartment. Short cracking noise o Can be heard when the thermostat turns the compressor on and off. -
Page 15: Cleaning And Maintenance
Cleaning and maintenance WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it. o The refrigerator compartment should be cleaned periodically, using a solution of bicarbonate of soda and lukewarm water. -
Page 16: The Defrost Drain Hole
The defrost drain hole o Defrosting occurs automatically in the refrigerator section during operation. The defrost water is collected by the evaporating tray and evaporates automatically. o The drain hole should be cleaned periodically with the drain hole cleaner. This will prevent water from collecting in the bottom of the refrigerator, instead of flowing down the defrost drainage channel and drain hole. -
Page 17: Defrosting The **** Freezer Compartment
Defrosting the **** freezer compartment After a period of time frost will build up in the freezer compartment. As a temporary measure, this frost should be scraped away using a plastic scraper. Complete defrosting will however become necessary approximately twice per year, or if the frost layer exceeds 5 cm (2”). This will maintain the efficiency of the refrigerator. -
Page 18: Replacing The Light Bulb
Replacing the light bulb WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO REPLACE THE LIGHT BULB. o There is an interior light next to the thermostat dial. o Press the hooks on the sides of the light cover and slide the cover off. -
Page 19: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the refrigerator. -
Page 20: Positioning
o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath. Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. -
Page 21: Levelling The Appliance
Levelling the appliance o If the fridge is not levelled during installation, the door may not close or seal properly causing cooling, frost or moisture problems. o To level your fridge you may either turn the levelling foot clockwise to raise that side of the fridge or turn it anti-clockwise to lower that side. - Page 22 2. Unscrew the two screws on the top cover to remove it. 3. Unscrew the three screws on the top hinge. 4. Move the top hinge to the opposite side to its original position. Move the top hinge pin, shaft sheath and block piece to the opposite side to their original positions also.
- Page 23 8. Reattach the door on the bottom hinge, making sure that it is correctly aligned, before re-fixing the top hinge and reinstalling the top cover. IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process.
-
Page 24: Troubleshooting
Troubleshooting IMPORTANT: If your fridge appears not to be operating properly, before contacting the Baumatic Customer Care Department, please refer to the checklist below. My fridge does not appear to be working/there is no power to my appliance. o Check that the plug is fully inserted into the power socket. - Page 25 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 26: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 27: Technical Data
Technical Data Manufacturer BAUMATIC LTD Model Number BF550SL/W Product Category 7 – Refrigerator-Freezer Energy Efficiency Class (1) Annual Energy Consumption (2) 172 kWh Storage Volume of Fridge 97 litres Compartment Storage Volume of Freezer 16 litres Compartment Star Rating Frost Free Compartments... -
Page 28: Contact Details
United Kingdom Baumatic Ltd., Czech Republic Baumatic Buildings, Baumatic CR spol s.r.o. 6 Bennet Road, Lìpovà 665 Reading, Berkshire 460 01 Liberec 4 RG2 0QX Czech Republic United Kingdom +420 483 577 200 Sales Telephone (0118) 933 6900 www.baumatic.cz Sales Fax...
