Summary of Contents for Baumatic BW18BL

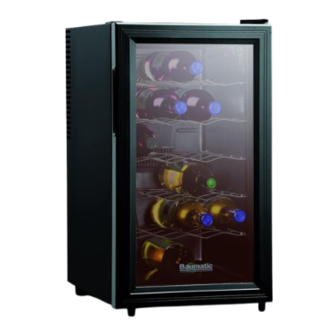

- Page 1 BW18BL 50 litre thermoelectric beverage centre BW28BL 70 litre thermoelectric beverage centre ER MANUAL FOR YOUR BAUMATIC...
- Page 2 BW18BL 50 litre thermoelectric beverage centre BW28BL 70 litre thermoelectric beverage centre NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
5 – 6 Specifications of your beverage centre cooler 7-10 BW18BL BW28BL Description of the appliance Description of the product features Using your Baumatic beverage centre 11-13 Before switching on During first use Setting the temperature Interior light Loading the beverage centre... -
Page 4: Important Safety Information
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. - Page 5 NO food stuffs must be stored in the appliance. If it is used for any other purpose or it is not used correctly, then Baumatic Ltd. will accept no liability for any damage that is caused. o Altering the specification of the appliance must not be attempted for reasons of safety.
-
Page 6: Specifications Of Your Beverage Centre Cooler
You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Baumatic Customer Care Department. Specifications of your beverage centre BW18BL o Gross capacity:... -
Page 7: Bw28Bl
o 5 waved chrome shelves o Adjustable temperature o Internal light o Tempered door glass o Adjustable feet o Reversible door o Smoked door glass o Black door frame o Black interior and exterior Dimensions of appliance* Height: 645 mm Width: 355 mm Depth:... -
Page 8: Description Of The Appliance
It is also advisable to make a note of the model number and the serial number of the appliance before installing it. Model number ……………………………………………… Serial number ……………………………………………… Date of purchase …………………………………………….. Description of the appliance (BW18BL) -
Page 9: Description Of The Product Features
1) Temperature control dial 2) Light ON/OFF switch 3) Adjustable shelves (x 5) 4) Adjustable feet (x 4) 5) Hinge cover 6) Door seal 7) Door glass 8) Door Description of the appliance (BW28BL) 1) Temperature control dial 2) Light ON/OFF switch 3) Adjustable shelves (x 6) 4) Adjustable feet (x 4) 5) Hinge cover... -
Page 10: Using Your Baumatic Beverage Centre
The cooling zone has an interior light. The light can be switched on and off by using the light ON/OFF switch (2). 4) The shelves o Any of the shelves can be removed, to accommodate larger bottles. Using your Baumatic beverage centre Before switching on... -
Page 11: During First Use
Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o The outside of the appliance and the removable accessories contained within it, should be cleaned with a solution of liquid detergent and water. -
Page 12: Interior Light
o When the appliance is connected to your mains supply, the power ON light will switch on. o Use the temperature control dial to set the temperature within the beverage centre. o If you set the control dial to the word “Low”, then the beverage centre will achieve a lower temperature. -
Page 13: Removing A Shelf
o IMPORTANT: Whilst the beverage centre can store larger bottles, you must make sure that they do not prevent the door from shutting properly. o Always check that you can close the door without it fouling on a bottle or can before shutting it. o When loading several beverages at once, it will take longer for the appliance to cool the individual bottles or cans. -
Page 14: Defrosting
o Do not clean the appliance by pouring water onto it or spraying water over it. o The interior of the beverage centre should be cleaned periodically, using a solution of bicarbonate of soda and lukewarm water. o Clean the accessories separately with soap and water. Do not clean them in a dishwasher. -
Page 15: Installation
the bottom of the beverage centre, instead of flowing down the defrost drainage channel and drain hole. o You can also pour a small amount of water down the drain hole to clean inside of it. o You should be careful to make sure that bottles or cans do not touch the rear wall of the appliance, as this can interrupt the automatic defrosting process and deflect water into the base of your beverage centre. -
Page 16: Electrical Connection
which are necessary for normal use and the regular operation of the electric system. Electrical connection YOUR BEVERAGE CENTRE IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. -
Page 17: Reversing The Door
Climate classification Appropriate ambient temperature +10 to +32 degrees centigrade +16 to +32 degrees centigrade +18 to +38 degrees centigrade +18 to +43 degrees centigrade o Positioning the appliance requires two people in order to avoid injuries or damage to the appliance. o Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. - Page 18 o Remove the upper hinge cover (6) first. o Remove the 3 screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5). o Lift the door and place it on a padded surface to prevent scratching.
-
Page 19: Troubleshooting
Troubleshooting IMPORTANT: If your beverage centre appears not to operating properly, before contacting Baumatic Customer Care Department, please refer to the checklist below. PROBLEM POSSIBLE CAUSE Appliance does not operate Not plugged in. The circuit breaker has tripped or the fuse has blown. -
Page 20: Technical Data
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. - Page 21 (3) This appliance is intended to be used at an ambient temperature between “16°C” (lowest temperature) “32°C” (highest temperature). Technical Data Manufacturer BAUMATIC Model Number BW28BL Product Category 10 – Multi-use and other refrigerating appliances Energy Efficiency Class (1) Annual Energy Consumption (2) 182 kWh Storage Volume of Fridge...
- Page 22 (1) On a scale from A+++ (highest efficiency) to G (lowest efficiency). (2) Annual energy consumption based on standard test results for 24 hours. The actual energy consumption will depend on how the appliance is used and where it is located. (3) This appliance is intended to be used at an ambient temperature between “16°C”...
