- Page 1 Ultra Micro Pole Cat Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
-
Page 3: Table Of Contents

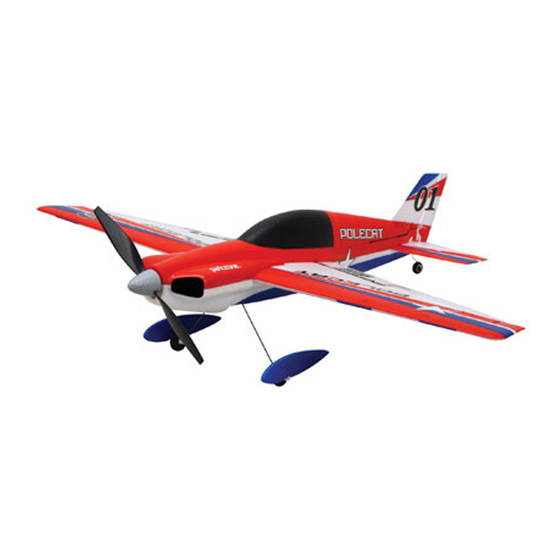

Thank you for purchasing the ParkZone® Ultra Micro Series Pole Cat. You’re just a battery charge away from one of the most exciting Ultra Micro fl ying experiences available. This Pole Cat has been specially designed to look like a full-scale Formula-1 air racer yet remain as forgiving as any sport plane. -
Page 4: Charging The Battery
Charging the Battery Your Pole Cat comes with a 1S 3.7V Li-Po Battery Charger and a 1S Li-Po battery. You should only charge your 1S Li-Po battery with the included charger, or the E-fl ite® Celectra™ 4-port Charger (EFLC1004). The fl ight battery will be required to confi rm proper aircraft operation in future steps. -
Page 5: Charging Warnings
Charging Warnings The Battery Charger (EFLC1000) included • Always disconnect the battery after with your aircraft has been designed to safely charging, and let the charger cool between charge the Li-Po battery. charges. • Always constantly monitor the temperature CAUTION: All instructions and warnings of the battery pack while charging. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver of the control unit to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to “bind”your chosen Spektrum DSM® technology equipped aircraft transmitter to the receiver for proper operation. For a list of compatible DSM2/DSMX transmitters, please visit www.bindnfl y.com. -
Page 7: Prefl Ight Checklist
Prefl ight Checklist 1. Charge fl ight battery. 6. Adjust center of gravity. 2. Install fl ight battery in aircraft 7. Perform a radio system Range (once it has been fully charged). Check. 3. Bind aircraft to transmitter. 8. Find a safe and open area. 4. -
Page 8: Control Rates
Control Rates We recommend using a DSM2/DSMX aircraft High Rate Low Rate transmitter. Adjust according to individual preferences after initial fl ight. Aileron 6mm up/down 4mm up/down It is normal for linear servos to make noise. Elevator 5mm up/down 4mm up/down The noise is not an indication of a faulty servo. -
Page 9: Control Direction Test
Control Direction Test Bind your aircraft and transmitter before doing these tests (see Binding). Move the controls on the transmitter to make sure aircraft control surfaces move correctly (Mode 2 shown). Elevator Down Elevator Left Aileron Right Aileron Left Rudder Right Rudder... -
Page 10: Propeller And Propeller Shaft Maintenance
Propeller and Propeller Shaft Maintenance CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Diassembly 1. Carefully cut tape and decals on fuselage and turtle deck (top of fuselage behind canopy) and remove top of fuselage. Note: Removing tape or decals will remove Remove Install... -
Page 11: Flying Tips And Repairs
Flying Tips and Repairs Flying Failure to lower the throttle CAUTION: stick and trim to the lowest We recommend only fl ying your Pole Cat in possible position during a light winds. Always avoid fl ying near houses, crash could result in damage trees, wires and buildings. -
Page 12: Additional Safety Precautions And Warnings
Additional Safety Precautions and Warnings As the user of this product, you are solely • Never place any portion of the model in your responsible for operating in a manner that mouth as it could cause serious injury or even does not endanger yourself and others death. -
Page 13: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem Aircraft will not respond Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle trim at to throttle but responds to lowest setting other controls Throttle channel is reversed Reverse throttle channel on transmitter Motor unplugged from receiver Open fuselage and ensure the plug for the motor is properly installed... -
Page 14: Warranty And Repair Policy
Limited Warranty What this Warranty Covers Inspection or Services Horizon Hobby, Inc. (“Horizon”) warrants to the original purchaser If this Product needs to be inspected or serviced and is compliant in that the product purchased (the “Product”) will be free from defects in the country you live and use the Product in, please use the Horizon materials and workmanship at the date of purchase. -
Page 15: Warranty And Service Information
Warranty and Service Information Country of Purchase Horizon Hobby Address Phone Number/Email Address Horizon Service 4105 Fieldstone Rd 877-504-0233 Center (Electronics Champaign, Illinois Online Repair Request visit: and engines) 61822 USA www.horizonhobby.com/service United States of America Horizon Product 4105 Fieldstone Rd 877-504-0233 Support (All other Champaign, Illinois... -
Page 16: Parts Contact Information
Micro Pole Cat Micro Pole Cat Ultra Micro Pole Cat Ultra Micro Pole Cat Landing Gear: Ultra Parkzone Fahrwerk: Train d’atterrissage : Carrello di atterraggio: PKZU1403 Micro Pole Cat Ultra Micro Pole Cat Ultra Micro Pole Cat Ultra Micro Pole Cat... -
Page 17: Optional Parts And Accessories
Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice 1S 3.7V 150mAh 1S-3,7V-150mAh-Li- Batterie Li-Po Batteria Li-Po 1S EFLB1501S25 Li-Po Battery Po-Akku 150 mAh 3,7V 1S da 3,7V, 150 mAh Replacement Servo Ersatzsicherung Bagues de maintien Collarini di fi ssaggio EFLH1067 Retaining Collars für Servo... - Page 18 © 2012 Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc. ParkZone, E-flite, JR, Celectra, DSM, ModelMatch are trademarks or registered trademarks of Horizon Hobby, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
